| Categories | High Frequency Transformer |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | Chipsen |

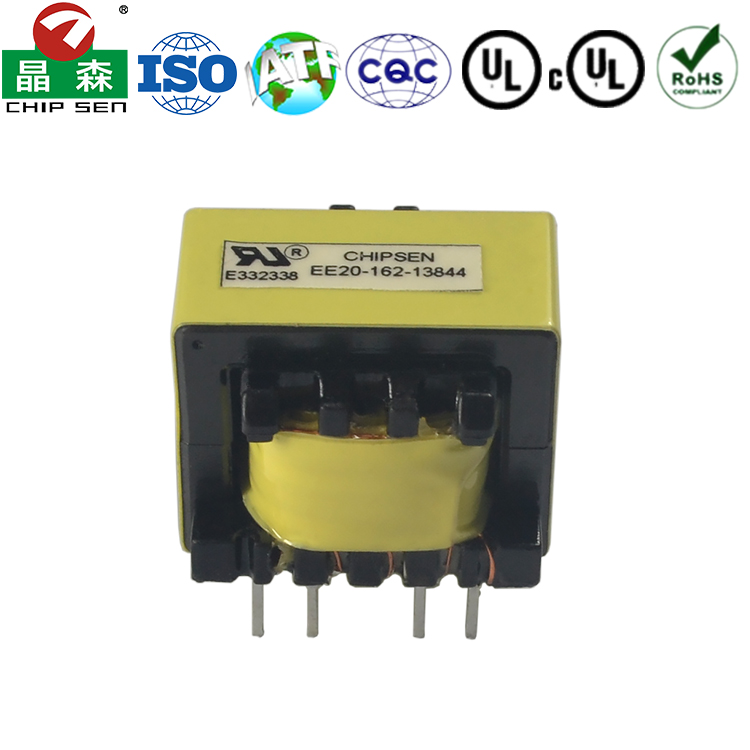

| Model Number: | EE20 |
| application: | Electronic power supplies |
| Phase: | Single Phase |
| Coil Structure: | TOROIDAL |
| Coil Number: | AUTOTRANSFORMER |
| Input Voltage: | 110V, 220V, 240V |
| Output Voltage: | 48V, 36V, 24V, Customized |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Warranty: | 5 Years |
| R&D Cost: | Free Design Service |
| OEM&ODM: | Acceptable |
| Solution: | One-stop Solution |
| Frequency: | 50/60Hz |
| Output Power: | Customized |
| Package: | Carton |
| MOQ: | 1000 pieces |
| Price: | CN¥5.29/pieces 1000-2999 pieces |
 | Model No. | High frequency transformer EE20 |
| Working Frequency Range | 1KHz-1MHz | |
| Output Power | 1W-3000W | |
| Output Voltage | 0.5V-15000V | |
| Output Current | 0.01A-100A | |
| Storage Temperature | +5℃ to +95℃ | |
| Working Temperature | -40℃ to +125℃ | |
| Storage Humidity | 30% to 70% | |
| Certifications | ISO9001:2015, ISO14001:2015, IATF16949, UL/cUL, ROHS, REACH | |
| Designing Information | operating frequency | |
| circuit topology | ||
| input voltage range | ||
| output power (V/A) | ||
| mounting dimensions | ||
| safety requirements | ||
| product application |
How to get samples?
Chipsen Sample Policy
How long the sample can be ready?
Shipping for samples Customer afford freignt cost, we can help customer to use the cheapest way.
|
