| Categories | High Brightness TFT Display |
|---|---|
| Brand Name: | ESEN |
| Model Number: | T121XG01 |
| Certification: | ISO9001/ISO14001 |
| Place of Origin: | Shenzhen China |
| MOQ: | No MOQ |
| Price: | can be negotiated |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 300K/mth |
| Delivery Time: | 7~14 working days |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Size: | 12.1 inch |
| Resolution: | 1024(horizontal)*768(Vertical) |
| Interface: | LVDS |
| Connect type: | Connector |
| Color Depth: | 16.7M |
| Technology type: | a-Si |
| Display Spec. Pixel pitch (mm): | TBD |
| Pixel Configuration: | R.G.B.-Stripe |
| Display Mode: | Normally Black |
| Driver IC: | TBD |
| Surface Treatment: | HC |
| Viewing Direction: | Full View |
| Gray scale Direction: | free |
| LCM (W x H x D) (mm): | 260.5*204*8.6 |
| Active Area(mm): | 245.76x 184.32 |
| With /Without TSP: | Without TSP |
| LED Numbers: | 44LEDs |
| Operating: | -20 ~ +70 ℃ |
| Custom Service: | FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
| Company Info. |
| ESEN HK LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
In order to enable more customers to choose the appropriate LCD screens, ESEN has been cooperating with LCD glass suppliers for a long time. It has developed various display sizes such as TFT LCD, AMOLED LCD, PMOLED LCD, flexible LCD, transparent LCD, etc., including circular, square, and elongated shapes. At the same time, ESEN can customize various touch screens with different shapes, sizes, curvatures, single-point touch, multi-point touch, etc., according to the different application environments of customers' products. Most of our products can be used in smart furniture, smart wearables, mobile phones, industrial control equipment, digital products, medical devices, automotive industrial control, advertising machines, etc. Our featured services: professional customized production, standard screen inventory.
T121XG01 is a 12.1-inch vertical screen TFT LCD module designed for industrial and commercial applications. It uses high-resolution IPS technology to achieve a clear display of 1204×768 pixels. Its 85/85/85/85° wide viewing angle design ensures color distortion-free viewing from all directions, and its 1000cd/m² high brightness adapts to strong light environments, such as outdoor advertising or industrial control scenarios. The transmissive normally black mode combined with LED backlight technology improves contrast while reducing power consumption and extending device life.
T121XG01 has excellent environmental adaptability and reliability, which enables it to operate stably in a variety of complex environments. It has a wide temperature range operation capability, with an operating temperature range of -20℃ to +70℃, and a storage temperature range of -30℃ to +80℃. This means that it can easily cope with low temperature environments in cold storage, and can also work normally in hot environments such as high-temperature workshops. It will not affect performance due to extreme temperature changes, and has strong environmental adaptability.

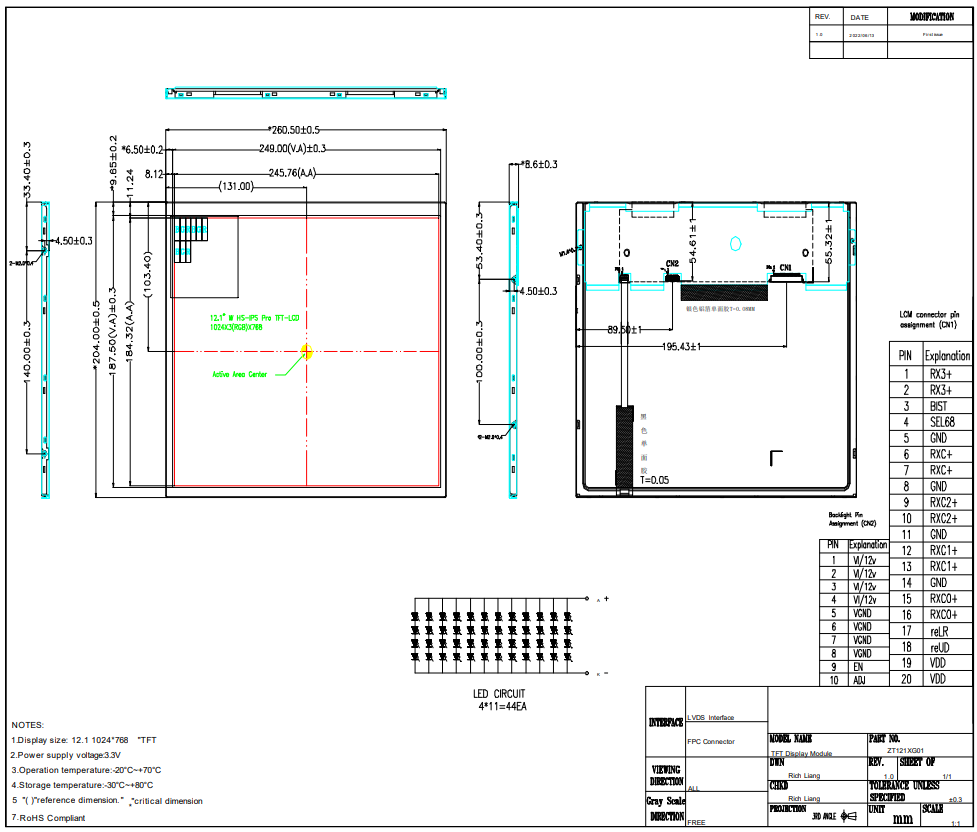

Mechanical Drawing

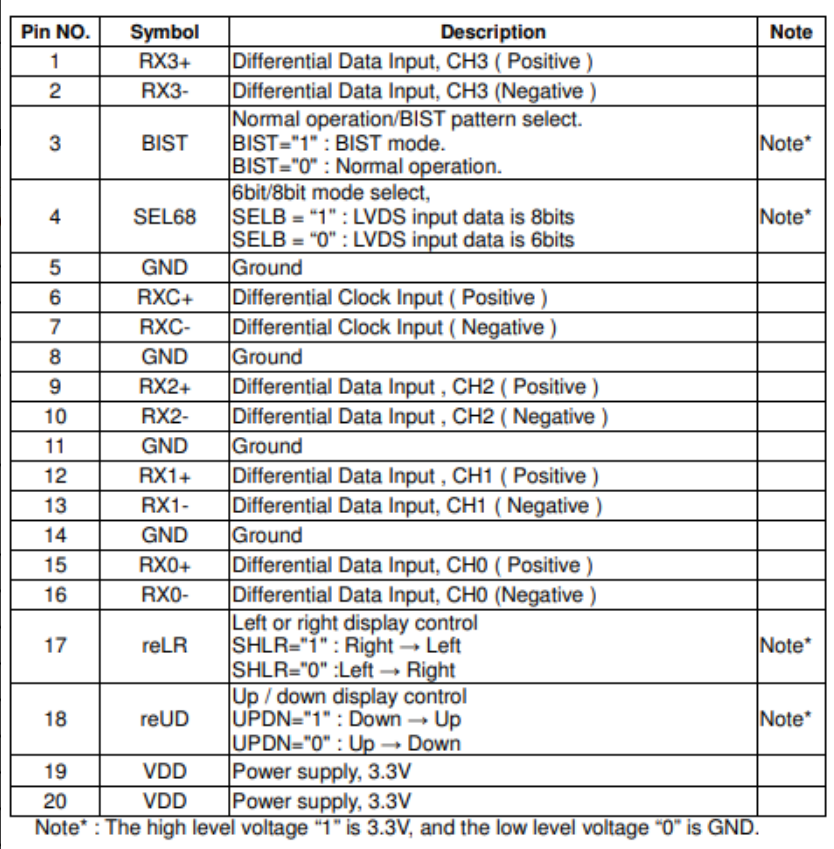

LCM connector pin assignment (CN1) : STARCONN 076B20-0048RA-G4 or JAE
FI-SEB20P-HFE (or equivalent)
Absolute Maximum Ratings
T121XG01 has a wide range of applications in many fields, providing high-quality display solutions for equipment in various industries.
In industrial control terminals, the industrial environment is
often complex and changeable, and the reliability and display
clarity of the equipment are extremely high. With its high
brightness and wide viewing angle, T121XG01 can ensure that
operators can clearly read complex data and information on the
screen under various angles and lighting conditions, providing
strong support for the precise control of industrial production.
For example, on the automated production line of a large factory,
workers can use this module to clearly monitor the operating status
of the equipment, discover and solve problems in a timely manner,
and improve production efficiency and product quality.
Medical imaging equipment has strict requirements for the display
accuracy and stability of images. The high resolution and excellent
color reproduction capabilities of T121XG01 can accurately present
medical images and help doctors diagnose diseases more accurately.
When performing imaging examinations such as X-rays, CT, and MRI,
doctors can clearly observe subtle lesions in the patient's body
through this screen, providing a reliable basis for the diagnosis
and treatment of the disease. At the same time, its wide
temperature performance can also ensure that the equipment can
operate stably in different environments of the hospital without
being affected by temperature changes.
The in-vehicle information screen needs to adapt to vibration, high and low temperature changes and complex light conditions during vehicle driving. The thin and light design of T121XG01 (total thickness ≤7.5mm) allows it to be easily embedded in the limited space in the car without occupying too much in-vehicle layout. The low power consumption characteristics help reduce the power consumption of the vehicle battery and extend the vehicle's range. Its high brightness and wide viewing angle ensure that drivers and passengers can clearly view navigation information, vehicle status and other content at different angles and lighting conditions, improving driving safety and riding experience.
Smart retail terminals need to attract customers' attention and
provide a convenient interactive experience. The high brightness
and clear display effect of T121XG01 can display exquisite product
pictures and promotional information to attract customers'
attention. The multi-touch function and fast response time allow
customers to easily query product information, perform self-service
checkout and other operations, and improve shopping efficiency and
experience. For example, in smart convenience stores, customers can
quickly learn product details and complete payment through this
screen, reducing waiting time in line.
In addition to the above standard features, T121XG01 also provides
customized services to meet the differentiated needs of customers.
For some application scenarios with special requirements for
brightness, such as outdoor advertising displays or industrial
equipment in strong light environments, the brightness can be
further adjusted according to customer needs to ensure clear
visibility in various environments. In terms of interface
adaptation, customized interface solutions can also be provided
according to the customer's system architecture and equipment
requirements to ensure seamless connection with other devices and
reduce the difficulty and cost of system integration. This
customized service can help customers create products that better
meet their needs and enhance the competitiveness of products in the
market.
In summary, T121XG01 with its high performance, high reliability
and flexible adaptability, provides efficient display solutions for
multiple industries such as industrial control, medical imaging,
in-vehicle information, and smart retail, and is an ideal choice
for equipment upgrades and innovations in various industries.
Q&A
Q: Is there a Touch Panel (Touch Screen) on the display?
A: We can offer you the RTP (Resistive Touch Panel) and CTP
(Capacitive Touch Panel) if you need.
Q: What about payment terms?
A: PayPal and credit card can be accepted for sample, T/T paid for
mass order. Advance payment percentage can be discussed.
Q: How long can I get the goods?
A: It depends on the quantity. Our inventory is mainly raw
materials, semi-finished and a small number of finished products.
Samples available in stock will be sent in 3 days; Small batch
delivery takes 15-20 working days include producing; Large batch
delivery takes 20-30 working days. We will list the time cost for
you before order.
Q: Can I trust the quality? We want good quality first.
A: Our company has a professional Quality Control Department, and
all products are 100% inspected prior to ship. We welcome all the
customers from the wolrd visiting our factory for checking any time
