| Categories | VA LCD Display |
|---|---|
| Brand Name: | Genyu |
| Model Number: | GY8992A |
| Certification: | RoHS, ISO9001:2015 |
| Place of Origin: | China |
| MOQ: | 5400 pieces |
| Price: | Negotiation |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Credit Card |
| Supply Ability: | 500K pcs/ Month |
| Delivery Time: | 38-40 days |
| Packaging Details: | Foam & Cartons |
| LCD Type: | VA, nagative |
| Drive Mode: | 1/8 Duty, 1/4 Bias |
| Operating Temperature: | -10~+60℃ |
| Voltage: | 5.0V |
| Connector: | FPC |
| Company Info. |
| Shenzhen Genyu Optical Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

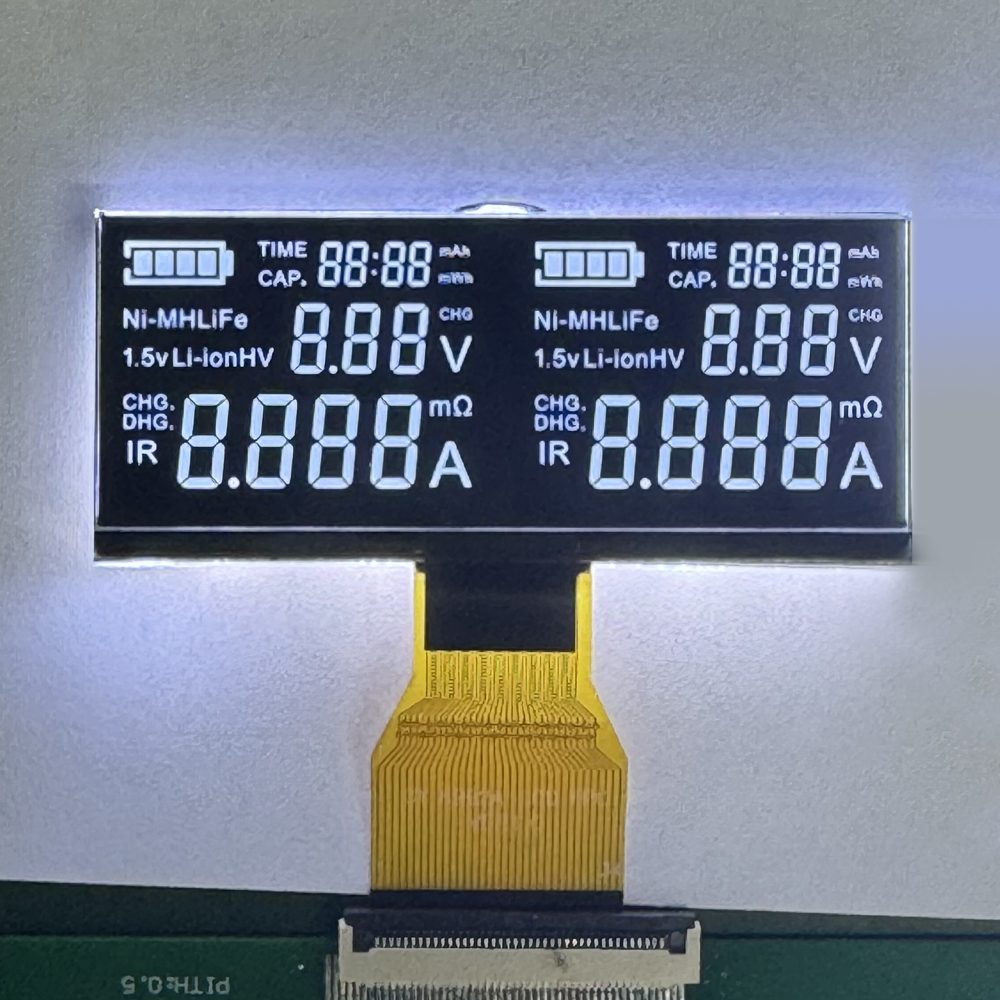

Key Characteristics of VA LCD Segment Displays:
1. VA (Vertical Alignment) Technology: Offers deep black background and high contrast (up to 1000:1 or more). Pixels align vertically when off, blocking light completely, making segments not in use appear very dark.
2. Segment Display: Predefined shapes (segments) form numbers, letters, or symbols. These are not pixel-addressable like in graphic displays.
3. Viewing Angle: Excellent viewing angles (up to 160°), superior to TN LCDs.
4. Contrast: Much higher than TN or STN segment displays. Ideal for visually demanding applications.
5. Power Consumption: Very low, suitable for battery-operated devices.
6. Backlight: Often paired with LED backlights; black background with white/colored segments can be very striking.
7. Response Time: Fast enough for typical applications like counters, meters, etc.
Detailed Parameters:
| Model number | GY8992A | LCD type | Segmented Display |
| Module size | 53.71(W)* 23.13(H)* 2.80(T) mm | Display mode | VA, Negative |
| LCD viewing area | 51.71(W)* 19.13(H) mm | Polarizer type | Transmissive |
| Operating Temperature | -10~+60℃ | LED backlight | White |
| Drive method | 1/8 Duty, 1/4 Bias | Working voltage | 5.0V |
| Viewing angle | 6 O'clock | Connection way | FPC, 34 numbers |
Common Applications:
Digital thermometers
Smart home panels
Electric meters
Automotive dashboards
Industrial control panels
Kitchen appliances
1. Q: What products can you provide?
A. 1) Custom Segment LCD Display;
2) Monochrome Graphic/Dot Matrix LCD Display Modules;
3) Micro OLED Display Modules;
4) Color TFT LCD Display Panels;
5) LED Backlights.
2. Q: What is the process for custom samples?
A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.
3. Q: How long can I get the custom samples?
A: Different product types will take different times. Usually, it will take about 30-35 days.
4. Q: Can I get free samples?
A: We would like to provide 3-10 pieces of free samples after tooling.
5. Q: What is the minimum order quantity?
A: MOQ mainly depends on LCD sizes.
6. Q: How long is it for mass production?
A: Usually 35-45 days, it depends on your part number.
7. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
|
