| Categories | TFT LCD Display Panel |
|---|---|
| Brand Name: | Genyu |
| Model Number: | GY-TFT018F068 |
| Certification: | RoHS, ISO9001: 2015 |
| Place of Origin: | China |
| MOQ: | 2000 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Credit Card |
| Supply Ability: | 300K pcs/ Month |
| Delivery Time: | 25-30 days |
| Packaging Details: | Anti-plastic trays and Carton Boxes |
| Panel Size: | 1.77 inch(diagonal) |
| LCD Resolution: | 128x160 dots |
| Driver IC: | ST7735S |
| FPC Connector: | 14PIN |
| Interface: | SPI |
| Company Info. |
| Shenzhen Genyu Optical Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| NO. | ITEM | SPECIFICATIONS |

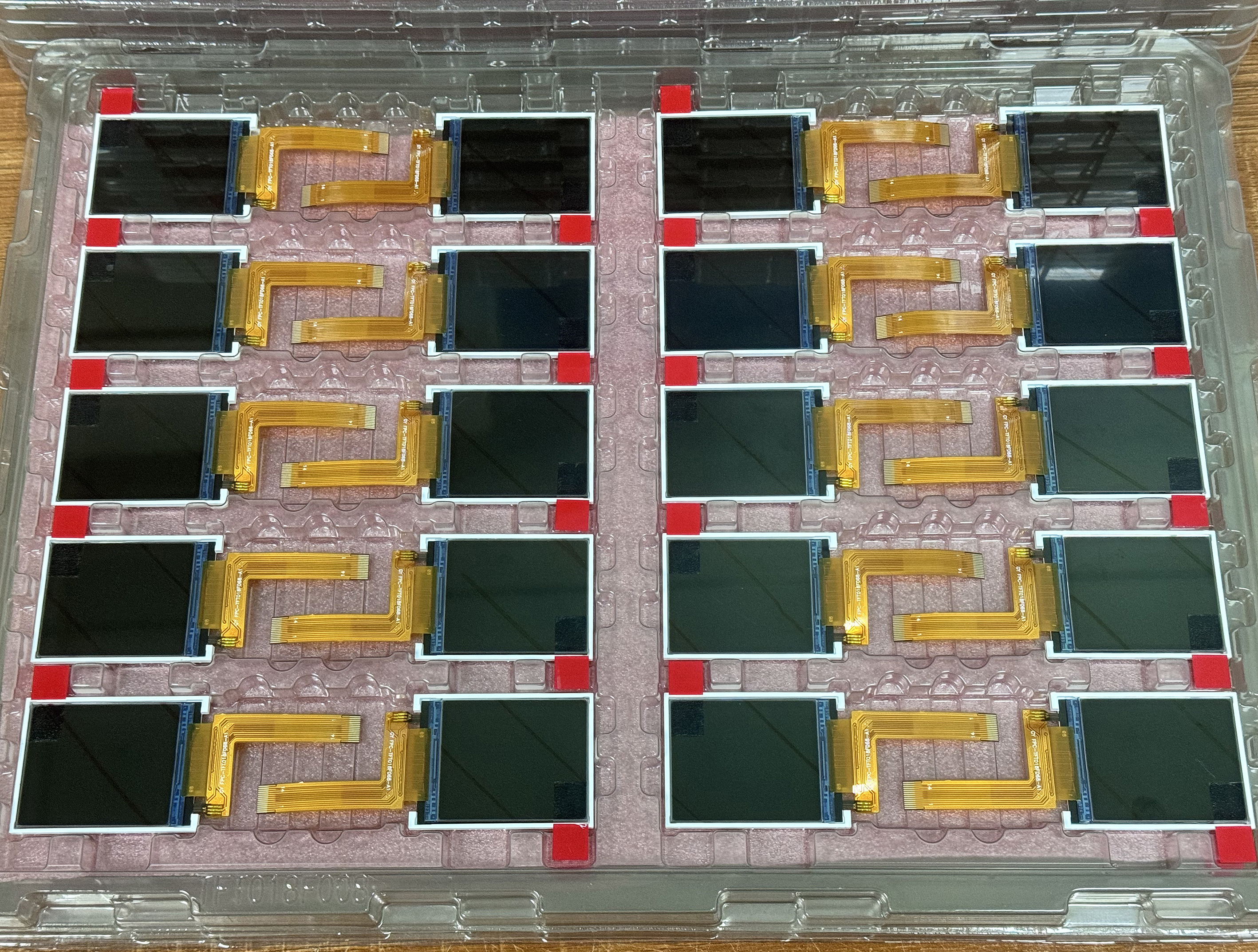

| 1 | Product Name | 1.77-inch TFT LCD Display Screen |
| 2 | LCD Type | TN Transmissive |
| 3 | Viewing Angle | 12 O'clock |
| 4 | Resolution | 128x160 dots |
| 6 | Operating Temperature | -20~+70℃ |
| 7 | Storage Temperature | -30~+80℃ |
| 8 | FPC Connector | 14 pins, ZIF type |
| 9 | Driver IC(COG) | ST7735S |
| 10 | Interface | SPI |
| 11 | Backlight Type | 2 LEDs, White |
| 12 | Power Consumption | VF=3.2V, IF=20*4mA |
| 13 | Outline Dimension | 34.70(W)* 46.70(H)* 2.25(T) mm |
| 14 | Active Area | 28.03(W)* 35.04(H) mm |
Common TFT LCD Size Ranges:
| Screen Size (inch) | Typical Resolutions (pixels) | Aspect Ratio |
|---|---|---|
| 1.3" | 240×240 | 1:1 |
| 1.44" | 128×128 | 1:1 |
| 1.77" | 128×160 | 4:3 |
| 2.0" | 176×220, 320×240 | 5:4, 4:3 |
| 2.4" | 240×320 (QVGA) | 4:3 |
| 2.8" | 240×320, 320×240 | 4:3 |
| 3.2" | 240×320 | 4:3 |
| 3.5" | 320×480 (HVGA) | 3:2 |
| 4.0" | 480×800 (WVGA) | 5:3 |
| 4.3" | 480×272, 800×480 | 16:9, 5:3 |
| 5.0" | 800×480 (WVGA), 854×480 | 16:9 |
| 7.0" | 800×480, 1024×600, 1280×800 | 16:9 |
Typical Applications of 1.77-inch TFT Displays:
| Wearable Devices | Smartwatches, fitness trackers, and medical monitors |
| Consumer Electronics | MP3 players, digital cameras, and handheld games |
| Home Appliances | Smart thermostats, microwave/oven displays, and IR remotes |
| Industrial Controls | Portable meters, handheld diagnostic tools |
| DIY / Maker Projects | Arduino/ESP32/STM32 projects with GUIs |
| Automotive | TPMS (Tire Pressure Monitoring), gear indicators |
| Medical Devices | Pulse oximeters, infusion pumps |
| Telecom Devices | Feature phones, intercom systems |
A. Our office is in Shenzhen, Guangdong, and our factory is in Jiangxi Province.
5. Q: Can I get a lower price for the TFT LCD?
A: Yes, cheaper price with bigger/larger quantities.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
7. Q: Can you provide technical support?
A: Yes, we will provide detailed specifications and initialization code.
|
