2.8 inch TFT LCD Display 240x320 Pixles ST7789 Driver 14PIN FPC with SPI Interface

Categories TFT LCD Display Panel
Brand Name: Genyu
Model Number: GY-TFT028F377
Certification: RoHS, ISO9001: 2015
Place of Origin: China
MOQ: 1000 pieces
Price: Negotiable
Payment Terms: T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability: 300K pcs/ Month
Delivery Time: 25-30 days
Packaging Details: Anti-plastic trays and Carton Boxes
Panel Size: 2.8 inch(diagonal)
LCD Resolution: 240x320 dots
Driver IC: ST7789P3
FPC Connector: 14PIN
Interface: SPI
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

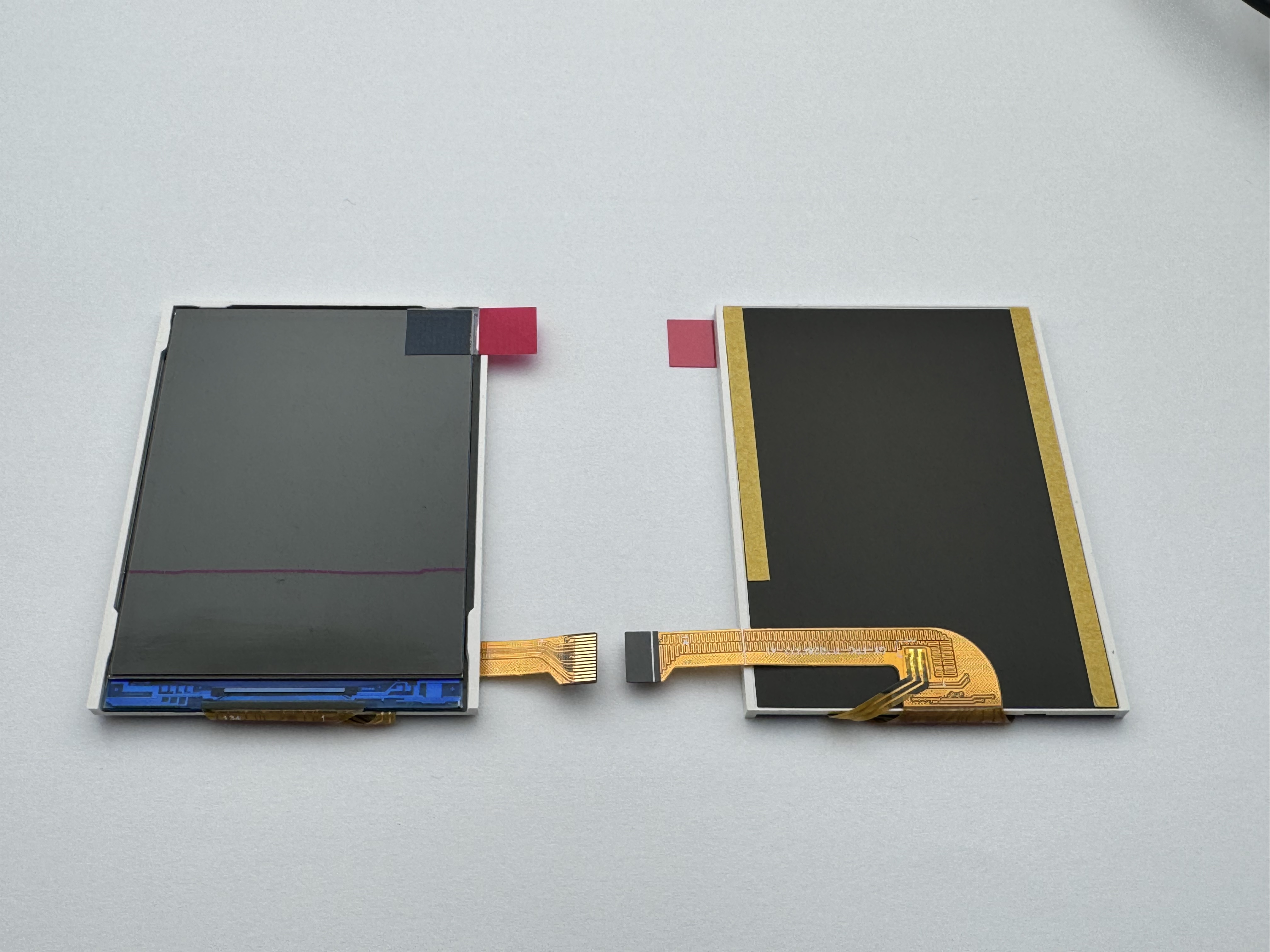

2.8 inch TFT LCD Display 240x320 Pixles ST7789 Driver 14PIN FPC with SPI Interface

LCD Parameters
NO. ITEM SPECIFICATIONS
1 Product Name 2.8-inch TFT LCD Display
2 LCD Type TN Transmissive, QVGA
3 Viewing Angle 6 O'clock
4 Resolution
240x320 dots
6 Operating Temperature -20~+70
7 Storage Temperature -30~+80
8 FPC Connector 14 pins, ZIF type
9 Driver IC(COG) ST7789P3
10 Interface SPI
11 Backlight Type 4 LEDs, White
12 Power Consumption VF=3.0~3.4V, IF=20*4mA
13 Outline Dimension 50.0(W)* 66.4(H)* 2.7(T) mm
14 Active Area 43.2(W)* 57.6(H) mm
15 Touch Panel Optional

Common TFT LCD Size Ranges:

Size (inches)

Typical Resolution

Common Use Cases

0.42" – 1.5"

128×64, 128×128, 240×240

Wearables, fitness trackers, and small IoT displays

1.8" – 2.4"

128×160, 240×320 (QVGA)

MP3 players, handheld tools, walkie-talkies

2.8" – 3.5"

240×320, 320×480

Touchscreen controllers, medical devices, and POS terminals

4.3" – 5.0"

480×272, 800×480

Automotive UI, smart home, small HMI panels

5.5" – 7.0"

800×480, 1024×600, 1280×720

Industrial HMIs, multimedia systems, tablets

8.0" – 10.1"

800×600, 1024×768, 1280×800

POS systems, control panels, embedded touch displays

Key Advantages of TFT LCDs:

1. High Resolution: Supports HD, Full HD, and even 4K resolutions for detailed graphics and text.

2. Full-Color Display: Can display millions of colors (RGB, 24-bit and higher). Ideal for photos, videos, and GUIs.

3. Fast Response Time: Suitable for video playback and interactive UIs.

4. Wide Viewing Angle (with IPS): especially in IPS TFTs, viewing angles can reach up to 178°, maintaining color and clarity.

5. Good Brightness: LED backlights provide strong visibility in various lighting conditions (including sunlight-readable variants).

6. Touch Compatibility: Easily integrates with capacitive or resistive touch panels.

FAQ
1. Q: Where is your factory?

A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.

2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
3. Q: What is the delivery time?
A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you support customization?
A: Yes, regarding TFT LCD, interface, FPC cable, Backlight, Cover glass, and Touch Panels can be customized.

5. Q: Can I get a lower price for TFT LCD?

A: Yes, cheaper price with bigger/larger quantities order.

6. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.

7. Q: Can you provide the technical support?

A: Yes, We will provide detailed specifications and initialization code.
