1channel 1080P/60hz HDMI video fiber optic converter extender for Multimedia publishing system with RS232

Categories HDMI Video to Fiber Converter
Brand Name: Ho-Link/OEM
Model Number: H-HDMI-1V1D1A-T/RL
Certification: CE/FCC/ROHS
Place of Origin: China
MOQ: 1 Pair
Price: Negotiable
Payment Terms: T/T or western Union
Supply Ability: 3,000pair per month
Delivery Time: 3 working days after received your payment
Packaging Details: International Standard Package
Product Name: HDMI over Fiber Converte
Application: Multimedia publishing system
Material: Metal
Video Format: Up to 1920X1080P@60Hz
Color: Black
Fiber Type: Multi-mode/Single-mode (optional)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1channel 1080P/60hz HDMI video fiber optic converter extender for Multimedia publishing system with RS232


HDMI Video & Audio & RS232 to Fiber Converter for Advertising ,Support 1080P@30Hz/60Hz,3G Fiber Bandwidth,Black Color High quanlity


Specifications:

ParameterDescription
VideoStandardsHDMI 1.3; HDCP 1.2
Maximum pixel clock165MHz
Maximum data rate6.75Gbps
Resolution rangeUp to 1920X1080P@60Hz
ConnectorFemale HDMI type A
Impedance100Ω
Optical fiberInterfaceSFP model – LC connector
Fiber typeMulti-mode / single-mode (optional)
Wavelength

Multi-mode 850nm /

Single-mode 1310nm(optional)

Interface bandwidth10Gbps
Transmission distance

OM3 multi-mode fiber: maximum 300m,

Single-mode fiber: standard 2km;maximum 10km

OtherPower supplyThe power adapter: DC 5V/2A
Power dissipationMAX 5W
TemperatureOperating: -5℃ ~ +70℃
HumidityOperating: 5% ~ 90%
Dimension94.5*73*26mm
The warranty1 year free warranty, life-long maintenance



Overview:

H-HDMI-1V1D1A-T/RL HDMI to Fiber Optic Converter provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 1080P,EDID
copy function. The extender can use for a wide range of applications requiring long
distance transmission of high resolution with high quality by its good stability and
powerful security.

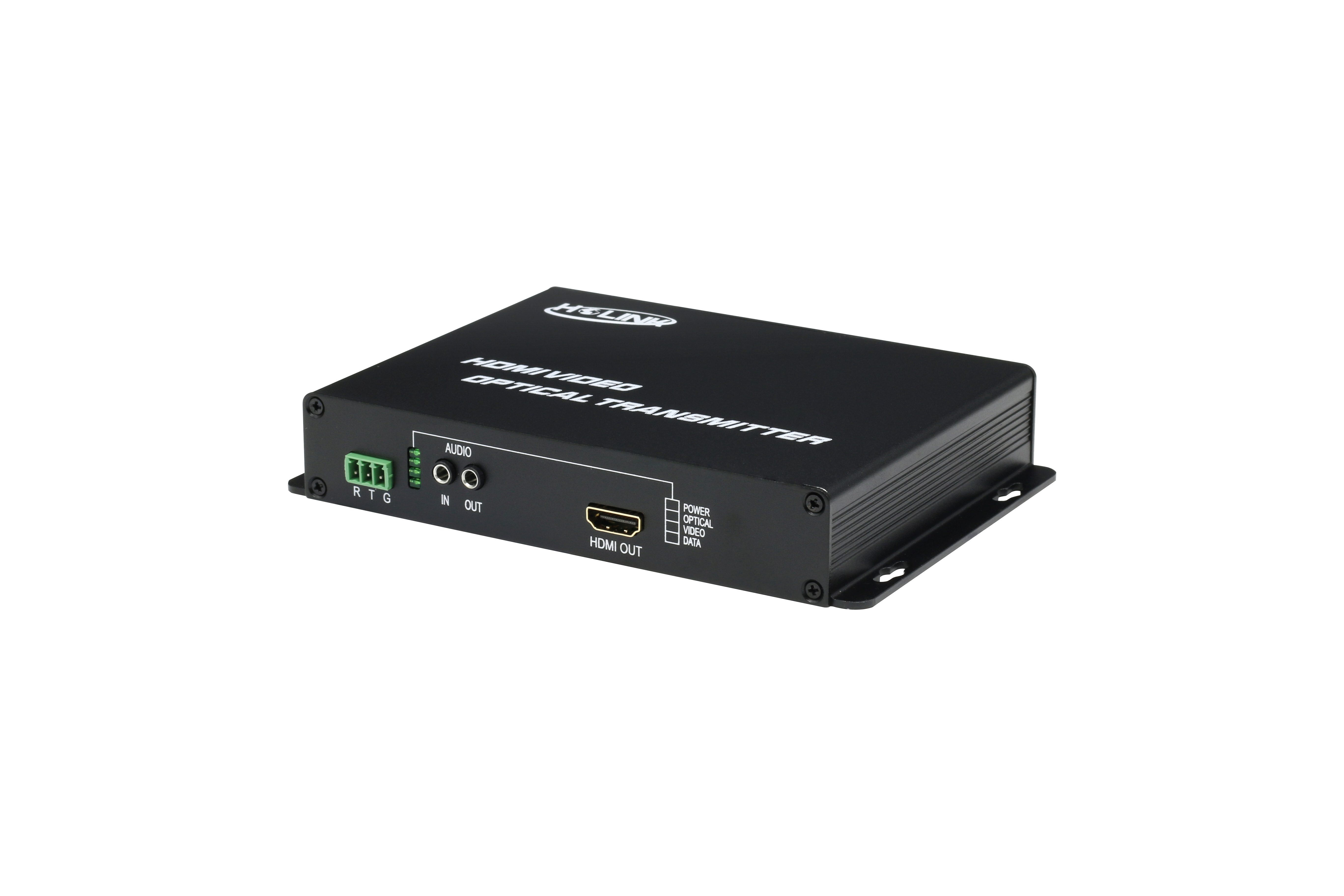

Photoes Show



Each LED indicator lamp:

Indicator LightHDMI TransmitterHDMI Receiver
VIDEOOnVideo signal on
OffVideo signal off
LOCKOnFixed video signal
OffNot fixed video signal
RUNOnDevice works smoothly
OffDevice not works smoothly
POWEROnPower on
OffPower off



Main Features:

1, Transmits HDMI video signals up to 2km-10km over one fiber optic cable

2, Support video resolution up to 1920*1200@60Hz, 3D signal

3, Support copy EDID, can match many kind display device

4, Compliance with HDMI 1.3 and HDCP 1.2 standard

5, High compatibility, can auto-match source and display device

6, Built-in automatic adjustment system, make the image smooth, clear and
stable

7, Built-in ESD protection system

8, Simple to install, plug and play


Applications:


Shipping:



Company Information

Company Profile


Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,
Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.
