Anritsu MS8608A Digital Mobile Radio Transmitter Tester 9KHz To 7.8GHz High Speed High Performance Wide Dynamic Range

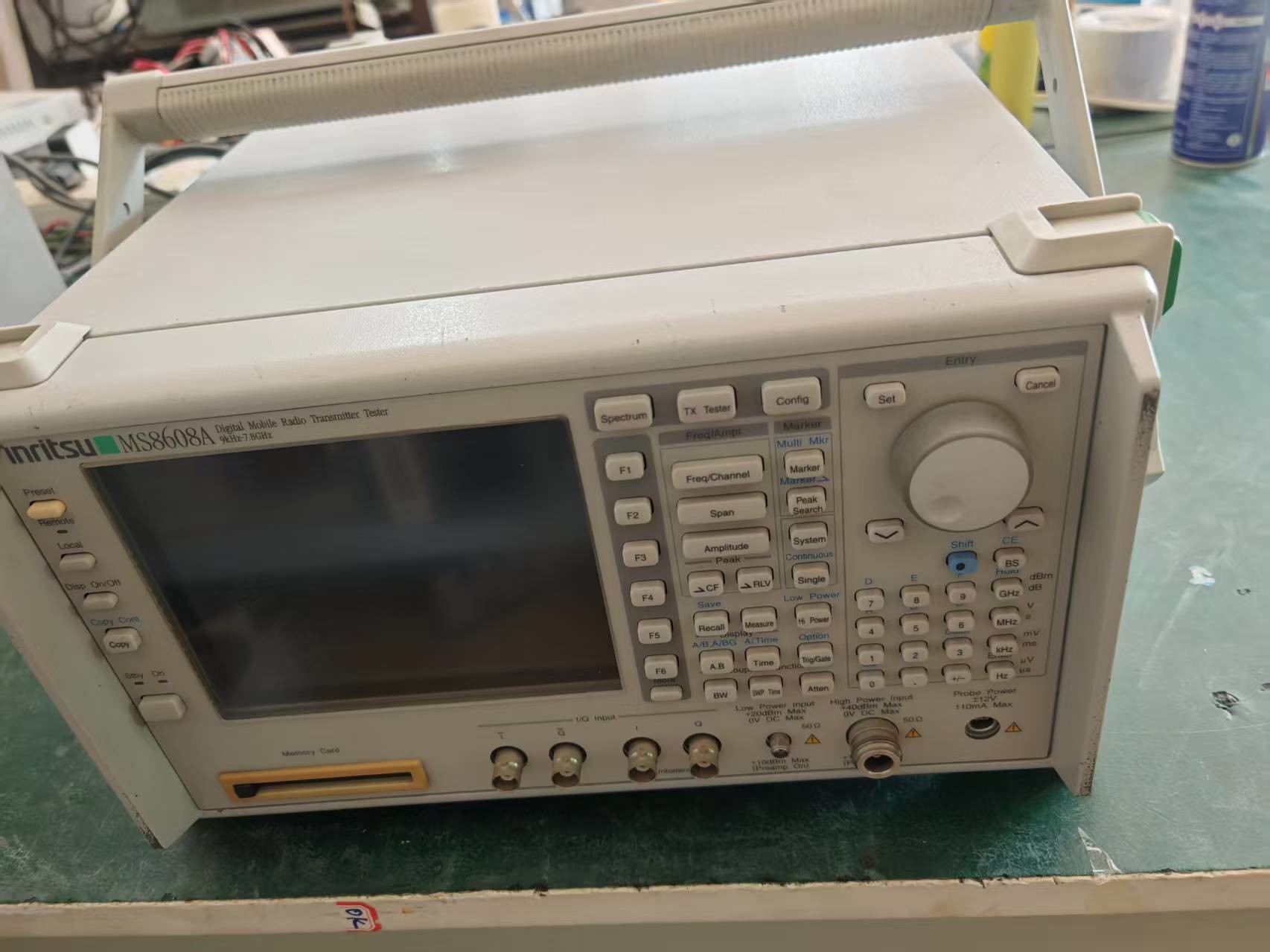

Anritsu MS8608A Digital Mobile Radio Transmitter Tester

Description of Anritsu MS8608A

MS8608A and MS8609A are transmitter testers equipped with an internal spectrum analyzer, a modulation analyzer and a power meter. Just one tester can cover the development and manufacturing of base stations and mobile stations, as well as the construction and maintenance of base stations.

• MS8608A supports 9 kHz-7.8 GHz and high power inputs up to +40 dBm.
• MS8609A supports 9 kHz-13.2 GHz and input power up to +20 dBm.

The spectrum analyzer has resolution bandwidths up to 20 MHz, meaning that it can readily support measurements of wide-band signals. The modulation analyzer realizes all Vector Signal Analysis (VSA) functions through high-speed DSP. The power sensor can perform highly accurate power measurements of ±0.4 dB by using an amorphous power sensor.

Up to three measurement software options (such as W-CDMA, GSM/EDGE, HSDPA, WLAN/802.11, CDMA, 1xEVDO) can be installed simultaneously. Input signals can be selected from RF or I/Q inputs. For I/Q signals, balanced or unbalanced input can also be selected.

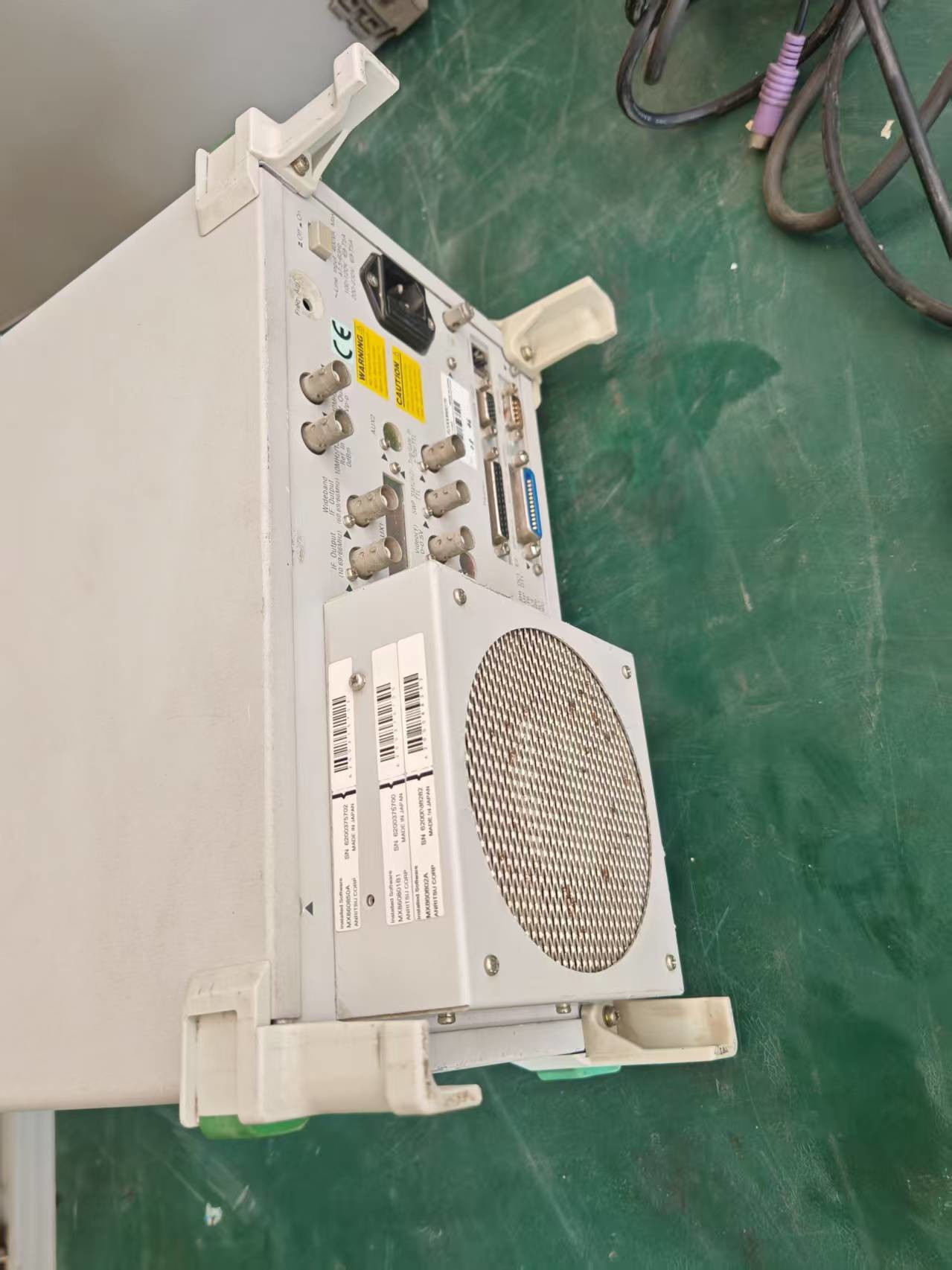

Each tester can be equipped with optional GPIB, RS-232C, and 10BASE-TEthernet interfaces for remote measurement. High-speed GPIB data transmission of 120 kbyte/sec enables high-speed measurement on the manufacturing line. The monitor uses an easy-to-see TFT color LCD.

Feature of MS8608A

• Excellent performance for evaluating W-CDMA modulation signals. This makes it ideal for the development and manufacture of W-CDMA radio transmitters (base station and mobile). GSM/EDGE, HSDPA, WLAN/802.11, CDMA, 1xEVDO, and Pi/4DQPSK (PHS, PDC, IS-136) measurements are also supported.
• The built-in spectrum analyser (standard) covers a resolution bandwidth of up to 20 MHz. It is ideal for evaluating devices such as base station power amplifiers, due to its wide dynamic ranges of 68 dB (typical for 5 MHz offset) and 75 dB (typical for 10 MHz offset) for adjacent channel power (ACP) measurement (sweep method). A new average detection mode permits high-accuracy measurement of signal power with this noise-like spreading modulation.
• The built-in power meter (standard) integrates an amorphous power sensor for high-accuracy (+-0.4 dB) power measurements.

List of Options for MS8608A
