Price: | US$1000~50000/set |
Brand Name: | TONGCHEN |
Model Number: | TTSJ |
Place of Origin: | Bengbu, China |
MOQ: | 1 set |
Payment Terms: | T/T |
Supply Ability: | 30 Set/Sets per Day |
Delivery Time: | 15~45 work days |
Packaging Details: | wooden box |
Name: | Automated Glue Dispensing Systems |
dimension(l*w*h): | / |
place of origin: | Anhui, China |
automatic grade: | Semi-automatic |
voltage: | 220V50HZ |
power: | / |
machinery capacity: | 1-25g/S |
key machines: | Motor |
Weight (KG): | 200 |
Condition: | New |
Year: | / |
Weight: | 800 |
Company Info. |
Bengbu Tongchen Automation Technology Co., ltd |
Verified Supplier |
View Contact Details |
Product List |

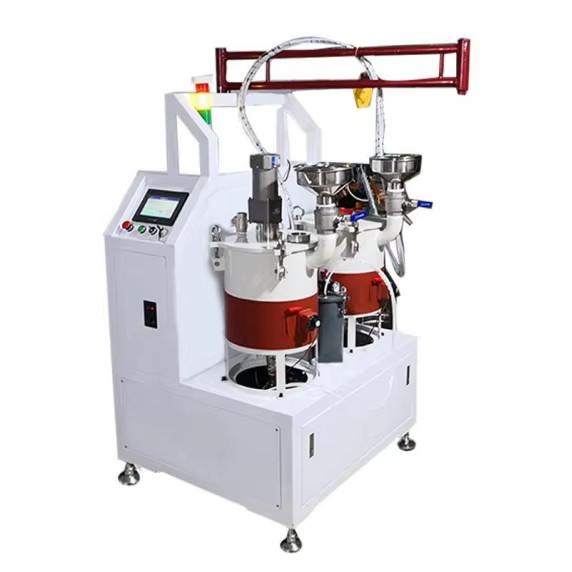

Product Description:
The intelligent equipment specially developed for the production of
filters is equipped with a dual-filling system and an intelligent
control module, precisely achieving the mixing and filling of
two-component adhesives, ensuring the efficiency and consistency of
the filter filling process, and enhancing the sealing and
durability of the products.
Important parameters of the product:
- Proportioning accuracy: ±0.5%
- Gel output range: 1-100ml per time (adjustable)
- Applicable adhesive viscosity: 100-10,000 mpa ·s
- Working voltage: 220V/50Hz
- Maximum working pressure: 0.8MPa
- Control mode: PLC intelligent touch control
Product application:
It is used in the production of various types of filters such as
air filters and water filters, meeting the requirements of sealing,
fixing, moisture-proofing and other potting, and ensuring the
stability and reliability of the filters in complex environments.
Product functions:
- Automatic proportioning and mixing: Based on preset parameters,
it automatically completes the precise mixing of two-component
adhesives to ensure stable adhesive performance.
- Dual injection mode switching: Supports simultaneous injection or
independent injection, flexibly adapting to different filter
structures and injection processes.
- Real-time data monitoring: Real-time display of parameters such
as pressure, flow rate, and ratio, ensuring full control over the
quality of glue injection throughout the process.
- Abnormal warning protection: It is equipped with alarm functions
such as material shortage, overpressure, and abnormal proportioning
to ensure the safe operation of the equipment.
![]() |
