Woven Gabion Wire Mesh For Erosion Control & Bank Stabilization

Woven Gabion For Hydraulic Engineering: Erosion Control & Bank Stabilization

Woven Gabion Mesh for Hydraulic Engineering

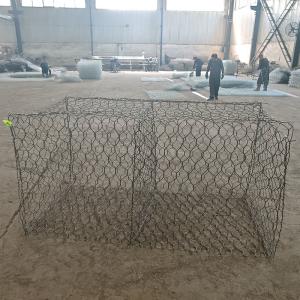

Woven Gabion is a durable mesh structure crafted from double-twisted hexagonal galvanized steel wire, engineered for hydraulic engineering applications such as riverbank stabilization, coastal erosion control, and flood defense systems. Its flexible design accommodates irregular terrains while providing structural integrity under dynamic water flow conditions. Compliant with ASTM A975 and EN 10223-3 standards, it ensures corrosion resistance and load-bearing capacity for spillway channels, dike reinforcement, and slope protection projects. Available in customizable sizes (e.g., 2x1x1m to 4x2x1m) with rock-fill compatibility, it integrates seamlessly into large-scale water management infrastructure.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

Hebei KN Wire Mesh Co., Ltd, was established in 2013, is a professional manufacturer engaged in the research, development, production, sale and service of Defensive barrier, Welded Gabion Box, Wave Gabion Basket , Gabion Mattress. We are located in Anping county hengshui city with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including welded wire mesh machine,Cutting Machine,Bending machine,air pump,Punching machine. We have strong technical strength,scientific management and complete inspection means to guarantee iron wire products of high grade .We will with the most preferential price,best quality in the face of the customer. In addition, we have obtained ISO EU CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Britain, France, Germany, USA,UK Kenya, Zambia, Philippines,Thailand,Korea,New Guinea,Greece, Mexico. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Our company always insist on the quality strives for the survival, to the credibility of development the objective, wholeheartedly for the domestic and foreign customers, with quality products and first-class service. and foreign customers, with quality products and first-class service.
