Prefabricated Long-span Portal Steel Frame Structure Industrial Workshop

Prefabricated long-span portal steel frame structure industrial workshop

​

Product name	Steel structure workshop
Length	H beam 4000-15000mm
Height	200-1200mm
Galvanizing Thickness	40 - 100 μm, etc. for Selection.
Main frame	H beam
Base	Cement and steel fouddation bolts
Specification	Custom
Bolt	Plain bolt ang high-strenth bolt
Roof&wall	Sandwich panel or color plate
Door	Sliding or rolling door
Transport Package	Seaworthy Package
Trademark	Qianfeng Chentai Steel Structure
Customized design is welcomed.
In order to give you an exactly quotation and drawings, please let us know the length, width, eave height and local weather.We will quote for you promptly.

​​

Package Size	100.00cm * 100.00cm * 100.00cm
Package Gross Weight	100.000kg

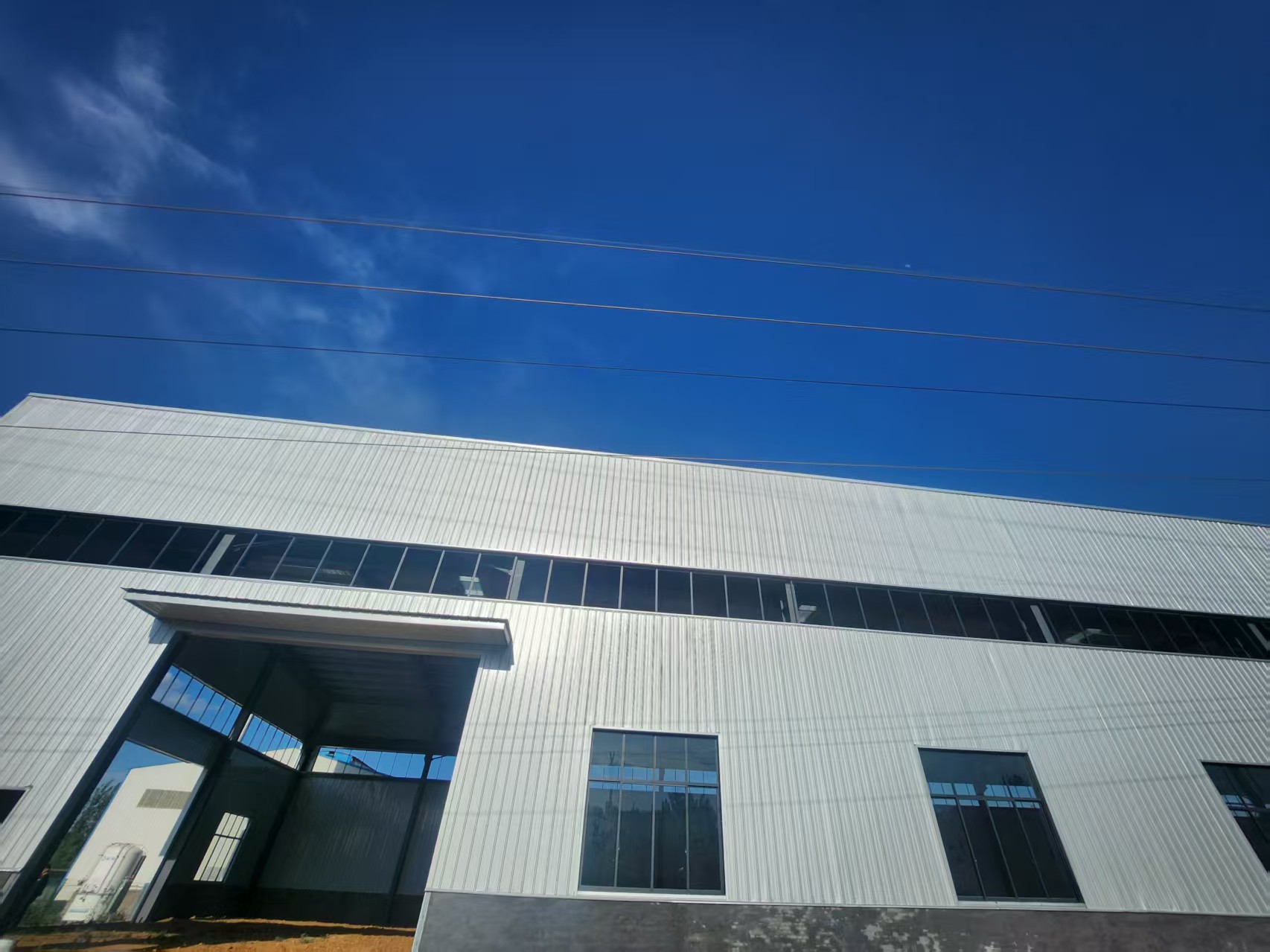

Looking at the steel structure workshop from the steel structure attributes
The steel structure workshop is made of Q355B low-alloy high-strength structural steel, with a yield strength of more than 355MPa and a tensile strength of more than 470MPa, which can withstand extreme loads such as strong winds and heavy snowfall. The H-beam and square steel pipes form a space truss system, which achieves high stiffness with small cross-sections, provides column-free and large space, and is suitable for heavy equipment installation and production.
The structure of the workshop adopts bolt connection and welding process, the bolts are easy to install and disassemble, and the weld ensures the integrity of the structure under dynamic load. The steel is treated with hot-dip galvanized and fire-retardant coatings to ensure corrosion resistance and fire safety. The modular steel structure shortens the construction period and facilitates expansion and functional transformation.

Product Advantages:

1. High strength and high stability
The steel structure workshop uses high-strength steel, such as Q355B and other low-alloy high-strength structural steel, which has excellent tensile and compressive properties, and the yield strength can reach more than 355MPa, which can withstand heavy equipment loads and natural external forces such as wind and snow. Its unique truss or frame structure system, through reasonable mechanical design, effectively transmits the load to the foundation, and maintains structural stability under extreme conditions such as strong earthquakes, providing a reliable guarantee for the safety of equipment and personnel in the workshop.
2. Large space and flexible layout
The steel structure itself has the characteristics of light weight and high strength, so that the workshop does not need a large number of column support. The large-span space constructed by H-beams, I-beams and other components has no internal obstruction, which can meet the needs of large-scale machinery and equipment installation and production operations. At the same time, the flexible space layout is convenient for quickly adjusting the internal functional partition according to the changes in the production process, whether it is the transformation of the production line or the relocation of equipment, it can be easily coped with and improve the efficiency of the workshop.
Third, the construction is convenient and the cycle is short
The steel structure components are transported to the site after the factory is prefabricated and assembled using mature processes such as bolting and welding, and the construction process is simple and efficient. Compared with traditional concrete buildings, there is no need for a long curing period, which greatly shortens the construction period. The modular design and construction method enables the steel structure workshop to be built quickly, helping enterprises to put into production faster and seize market opportunities.
4. Durability and easy maintenance
The surface of the steel is treated with hot-dip galvanized and coated with anticorrosive coatings, which can effectively resist acid and alkali corrosion and moisture erosion in the industrial environment and prolong the service life of the workshop. In case of local damage, the steel structure components are easy to disassemble and replace, and the maintenance cost is low.

Our advantages:

Design Service Advantages
Free 3D drawing design: We provide you with the intimate service of designing free architectural 3D drawings. The professional design team uses advanced design software to transform your ideas into intuitive and accurate 3D models, so that you can clearly see the appearance of the plant after completion before the project starts, plan the layout in advance, effectively avoid possible design problems in the later stage, and ensure the smooth progress of the project.

Standard Advantage
It has a variety of steel structure design guidelines, covering internationally renowned standards such as EN10902 European standard, AS4100 Australian standard, AISC-360-05 American standard, etc. Our design team is familiar with and follows these international standards, and can choose the most appropriate standard for design according to your project needs and actual situation, so as to ensure that the design and construction quality of the plant reaches the international advanced level, and provide international quality assurance for your project.

Material advantages
High-strength steels, such as S355JR, Q355B, GR50, AS3678-350, etc. These steels have the advantages of high strength, good toughness and strong corrosion resistance, which can effectively improve the bearing capacity and durability of the plant. Buildings built with high-strength steel can not only withstand greater loads, but also operate stably for a long time under harsh environmental conditions, extending the service life of the plant.

Structural form advantages
It adopts H-beam and I-beam steel portal frame structure. This structural form has the characteristics of clear force, direct force transmission and stable structure, which can give full play to the mechanical properties of steel and improve the overall stiffness and seismic performance of the structure. At the same time, the construction speed and low cost of the portal frame structure can save you the construction time and cost of the project.

Company Introduction:

China CT Steel Structure Co.,Ltd of BY GROUP is a comprehensive industrial group integrating for steel structure design, manufacture and installation. We have estabulished over 15 years. Our factory is covering about106,5 60 square meters.

Main products: steel structural warehouse, workshop, high rise steel building, school, hotel,office building, exhibition building, show room, shopping mall, stadium,Agricultural project (stable/cattle barn, poultry house,pig house), car parking, hangar,shed,storage room, prefab house, container house, Sandwich panel,corrugated steel sheet, C&Z sec- tion steel, door and windows and cranes.

Packing: we pack all the parts on the steel pallet and push into the container when clients received they can pulling them out within half an hour. It can help our clients to save a lot of time and labor cost during unloading.

Container loading; We will supply the materials list, the packing lists based on the contents we loaded into container. Showing the quantity, part no. length, container no, seal no.after finishing the container loading.

"Quality and service first "is our company's development goals. We hope we will develop together and win more projects together!

Packaging & Shipping:

1. All standard components are packed in plywood box.
2. All steel structure weld components are packed with blanket or bubble-wrap to avoid scratch during loading and unloading.
3. All steel structure are packed in steel pallet together into container, much save loading and unloading time, labor cost.
4. All sandwich panel are packed in steel pallet.
5. Material components will be made container load plan, also make regional unloading plan to avoid retransport on site.
6. All equipment pasted with English lable
7. Small equipment will packed in carton or plywood box

China CT Steel Structure Group Co., Ltd. is a comprehensive industrial group that integrates steel structure R&D, design, manufacturing, production, and installation. Since its establishment in 2004, it covers an area of approximately 300000 square meters and produces 400000 tons of steel structures annually. We have over 500 well-trained employees, more than 100 professional design teams, after-sales service teams, and many advanced equipment.

The goal of our enterprise is to be trusted by customers and the preferred brand supplier, and we always strictly demand ourselves based on this goal. We always adhere to the development philosophy of "providing the most reasonable prices, the most comprehensive services, and the best products", and strive tirelessly towards the vision of building "steel structures to help the world become a better place"!
