Brand Name: | YUHONG |
Model Number: | AES |
Certification: | ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS |
Place of Origin: | China |
MOQ: | 1Set |
Price: | 1--1000000 USD |
Payment Terms: | L/C, T/T |
Supply Ability: | 50SETS/MONTHS |
Delivery Time: | 45---150 DAYS |
Packaging Details: | Pallet |
Heat Exchanger Shell Material: | ASME SA240 SS 316L |
Heat Exchanger Tubesheet: | ASME SA182 F316L |
Heat Exchanger Tube: | ASME SA213 TP316L |
Heat Exchanger Baffle: | ASME SA240 SS 316L |
Heat Exchanger Channel: | ASME SA240 SS 316L |
Heat Exchanger Head: | ASME SA240 SS 316L |
Company Info. |
Yuhong Group Co.,Ltd |
Verified Supplier |
View Contact Details |
Product List |
Floating Head Heat Exchanger , AES Type , ASME SA240 SS316L Shell
with ASME SA213 TP316L Tube
Yuhong Group is one of the biggest group company in China , till
now below Yuhong Group has steel heat exchanger tube and boiler
tube factory , fin tube factory , bending workshop , CNC Machining
center, Air Cooler , Heat Exchanger, Pressure Vessel fabrication,
our factories already got ISO 9001, ISO 14001, ISO18001, ISO 45001,
PED, TUV, CE, ASME U, NB, S class . And our products already export
more than 85 countries .
Yuhong Group shell and tube heat exchangers were the most widely used and were among the most effective means of heat exchange. Shell and tube heat exchanger is a device where two working fluids exchange heat by thermal contact using tubes housed within a cylindrical shell. The fluid temperature inside the shell and tube are different and this temperature difference is the driving force for temperature exchange. Used for wide temperature and pressure range, Shell and tube heat exchangers are compact in design, simple in construction and maintenance and provide excellent heat exchange.
Shell and Tube Heat Exchanger Type :
1. Fixed Tube Heat Exchanger. (BEM, AEM , NEM )
2. Floating Head Removable Heat Exchanger. (AEW, BEW, BEP, AEP , AES, BES)
3. U-Tube Heat Exchanger. (BEU, AEU)

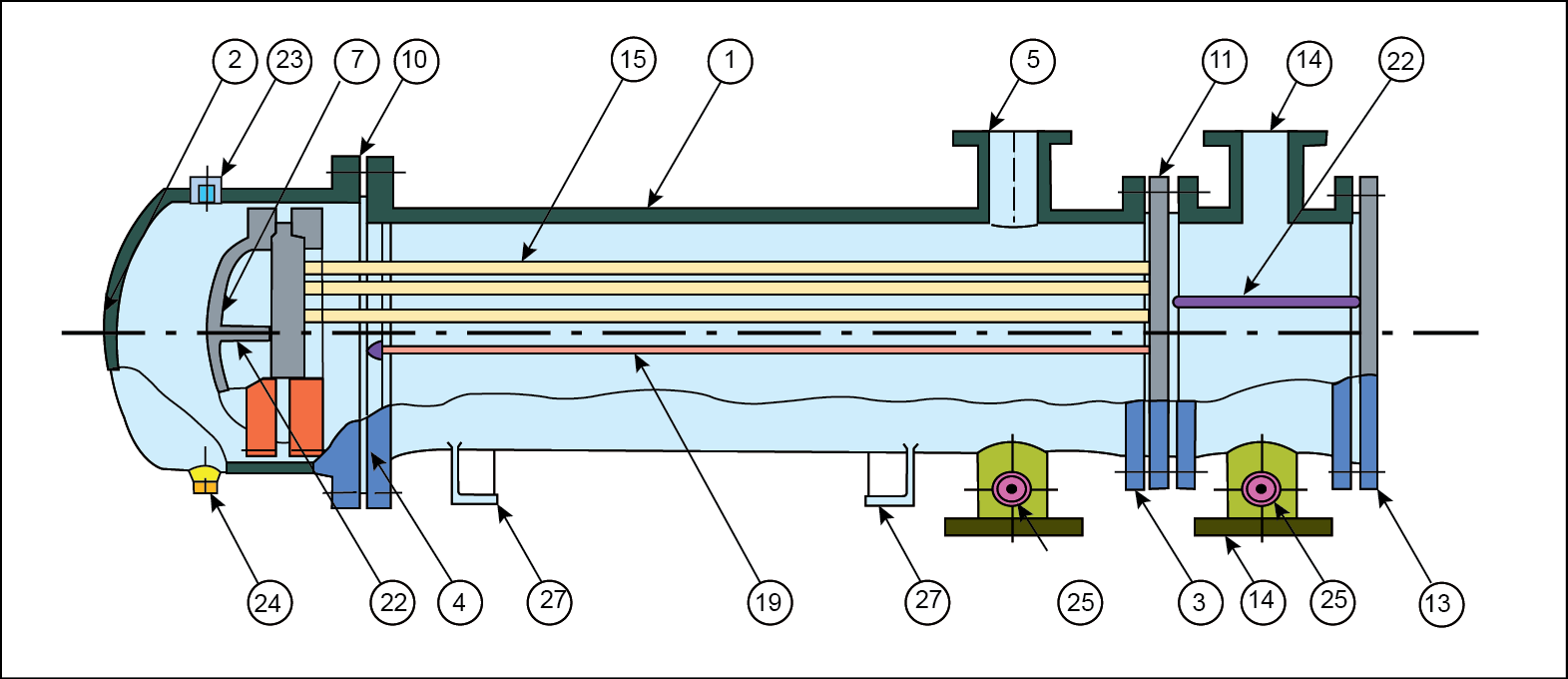

1. Shell 16. Tubes (U-type) |
2. Shell cover 17. Tie rods and spacers |
3. Shell flange (channel end) 18. Transverse (or cross) baffles or support plates |
4. Shell flange (cover end) 19. Longitudinal baffles |
5. Shell nozzle or branch 20. Impingement baffles |
6. Floating tube sheet 21. Floating head support |
7. Floating head cover 22. Pass partition |
8. Floating head flange 23. Vent connection |
9. Floating head gland 24. Drain connection |
10. Floating head backing ring 25. Instrument connection |
11. Stationary tube sheet 26. Expansion bellows |
12. Channel or stationary head 27. Support saddles |
13. Channel cover 28. Lifting lugs |
14. Channel nozzle or branch 29. Weir |
15. Tube (straight) 30. Liquid level connection |
![]() |
