DAD DTM952R Windows CE Operation System 400m Reflectorless Total Station With Color LCD

Product Paramenters

Products Description

DTM952 -- WINCE Non-Prism Laser Ranging Total Station
Distance Measurement Section
Range	Non-prism			600m
	prism	Single prism		3000m
		Three prism		5000m
Accuracy	Non-prism			±(3mm+2ppm·D)
	Prism			±(2mm+2ppm·D), ±(3mm+2ppm·D)
Unit			m/ft
Display	Maximum		99999999.9999m
	Minimum		0.1mm
Measuring time			Precise model:1S, Track model:0.8S
Number of time Set			1 ~ 99
Meteorologiccorrection			Input the value and correct automatic
Prismconstant			Input the value and correct automatic
Angle Measurement Section
Method			Absolute coding
Grating diameter			79mm
Minimum reading			1″
Detection	Horizontal		Diametrical detection
	Vertical		Diametrical detection
Accuracy			2″
Telescope Section
Imaging			Positive
Length			170mm
Effectiveaperture			48mm
Magnification			30×
Angle of vision			1.5°
Distinguishability			3.5″
Minimum focus distance			1.5m
Compensator
System			Double axis photoelectric tilt sensor or Single axis liquid tilt sensor
Working range			±3′
Distinguishability			1″

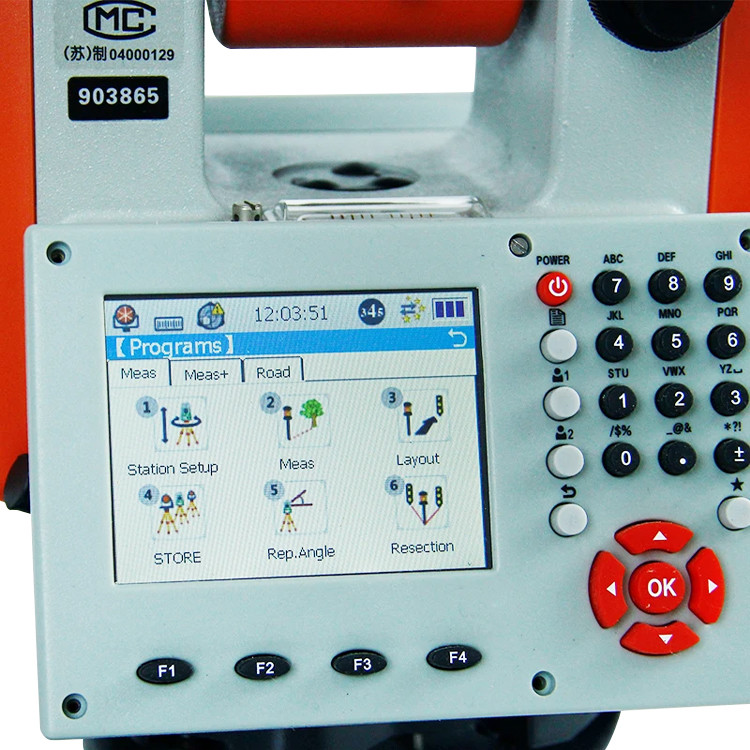

Display Section
Type			Double sides,320×240 LCD Display
Data Transmission
Port			Bluetooth,SD Card,USB,RS-232C
Capacity			40,000 data at least
Others
Plummet			Optical or Laser plummet
Power			Rechargeable lithium battery,DC7.4V,3600mAh
Continuous working time			4 hours at least
Size			174×207×383mm
Weight			6.8Kg
Working temperature			-20℃ ~ 50℃
