5 Inch 800x480 IPS LVDS TFT LCD Module with USB Interface Capacitive Touch Screen

Categories TFT Capacitive Touch Screen
Brand Name: AISON
Model Number: Z050WV31-CT
Certification: ISO9001 / ISO14000/ROHS
Place of Origin: Guangdong,China
MOQ: 1
Price: 10~25usd/p
Payment Terms: T/T
Supply Ability: 200k/month
Delivery Time: 7 working days
Packaging Details: Blister Package/Carton
Name: 5 inch IPS TFT Display with USB Touch Screen
Resolution: 800x480
Module Size: 133.9*93.4*5.5mm
Active area: 108 x 64.80 mm
Interface Type: LVDS 6/8 bit
Luminance: 350 cd/m2
Display mode: Normally Black
Viewing angles: 85/85/85/85
Operating temperatures: -30 to 80 degree
Storage temperatures: -35 to 85 degree
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

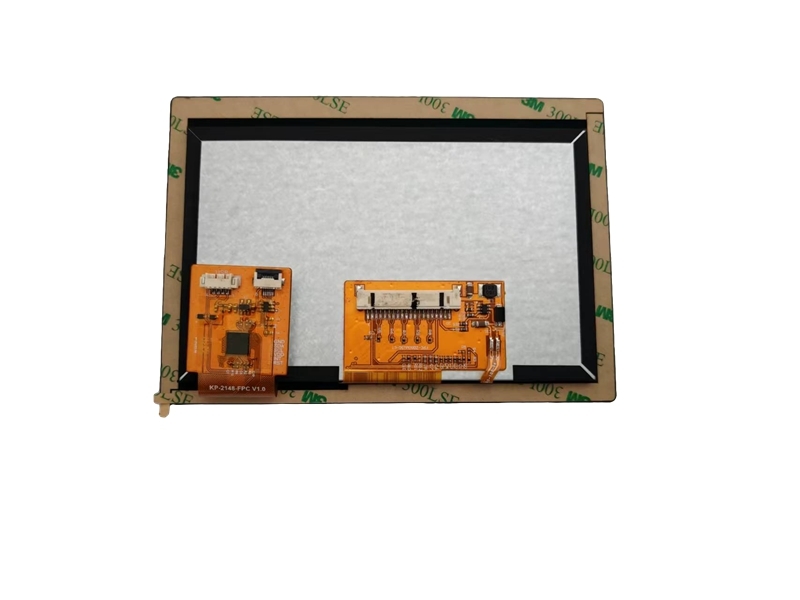

5 Inch 800x480 IPS LVDS TFT LCD Module with USB Interface Capacitive Touch Screen

5 Inch 800x480 IPS LVDSTFT LCD Module with USB Interface CapacitiveTouch Screen


Display General Description
Z050WV31-CT is a 5-inch TFT LCD module designed for exceptional performance and versatility. This module features a resolution of 800 × 480 pixels with a 16:9 aspect ratio, delivering a wide and immersive viewing experience. Equipped with a projected capacitive touch screen and IPS display technology, it offers a viewing angle of 85 degrees in all directions, ensuring clarity from every angle.This 5 inch lcd display is with LVDS interface with USB Interface CapacitiveTouch Screen.

Designed for robust operation, this module is capable of functioning within a wide temperature range of -30℃ to +80℃, with storage temperatures as low as -35℃ and as high as +85℃, making it suitable for diverse environments. It features a contrast ratio of 800:1 (typical) and a brightness of 350 nits (typical), delivering crisp and vivid visuals under various lighting conditions.


General Data

Product Name5 Inch Capacitive Touch IPS TFT LCD Module
Number of Pixel800x480
InterfaceLVDS
Luminance(cd/m2)400 cd/m2
Active area
133.9*93.4*5.5
LCM (W x H x D)
108x64.8 mm
Viewing Direction(eye)IPS/ALL
Operating temperatures-30 to 80 degree
Storage temperatures-35 to 85 degree

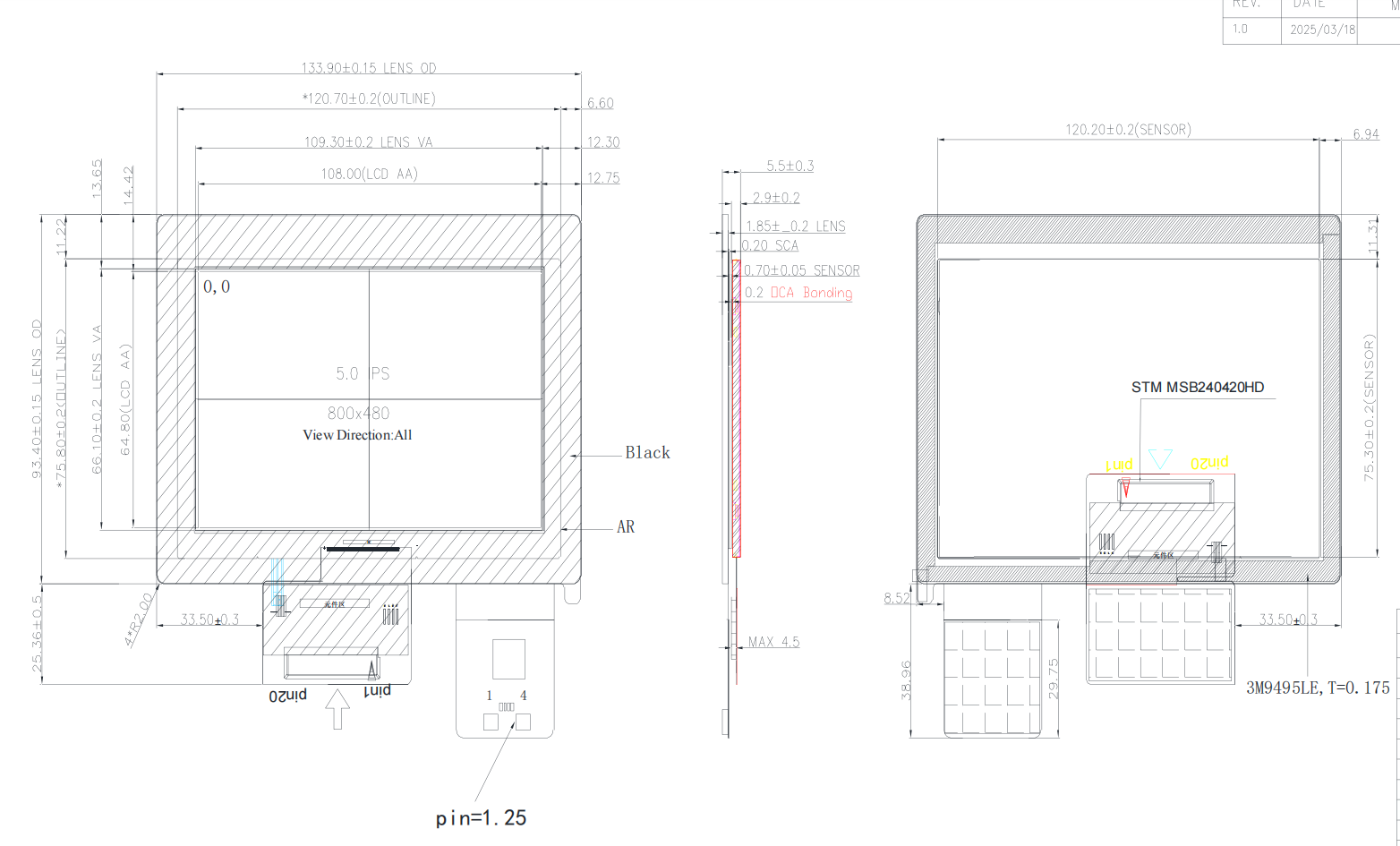

Drawing


Product Details



TFT Applications


The 5 inch display module is suitable for use in control panels for white goods, industrial control systems, audio equipment, and home security systems.
