High Speed Long Stroke Synchronous Belt Slide Table with Precise Positioning

High Speed Long Stroke Synchronous Belt Slide Table with Precise Positioning

As a core transmission component in industrial automation, the PTB Synchronous Belt Slide establishes a new performance benchmark for mid-to-high-end linear motion modules with its technical core of "high-load, ultra-high-speed, strong-thrust". Through innovative integration of high-rigidity structures and efficient transmission systems, it achieves three breakthroughs: 200KG horizontal dynamic load capacity, 2311mm/s ultra-high speed, and 1126N strong thrust, with a full stroke range of 50-4000mm to serve rigorous scenarios such as logistics sorting, automotive assembly, and electronic component mounting.

Typical Application Scenarios

① Intelligent Logistics Sorting Hub

The PTB Slide drives sorting systems at 2311mm/s ultra-high speed, effortlessly handling full cartons with its 200KG load capacity. Its 1126N thrust enables millisecond-level switching of sorting baffles, increasing parcel processing capacity from 2,500 to 8,000 pieces per hour – a 3x efficiency leap.

② Precision Automotive Component Assembly

With a dual-guide high-rigidity design and 200KG load capacity, it stabilizes engine block transportation across workstations, achieving ±0.1mm positioning accuracy for bolt hole alignment, and providing reliable support for automotive powertrain assembly.

③ High-Precision Electronic Component Pressing

In FPC flexible board pressing, its 1126N strong thrust and 45mm-wide synchronous belt ensure 0.1mm-level pressing precision, resolving common issues like false pressing and misalignment in traditional slides, and enabling precision manufacturing of Mini LED and 5G modules.

Core Technical Advantages

High-Rigidity Heavy-Duty Architecture

The integrated design of double-row linear sliders and thickened aluminum alloy base plates, combined with a 45mm-wide PM synchronous belt, ensures full-stroke deflection ≤0.1mm/m under 200KG loads, guaranteeing low-vibration high-speed operation.

Ultra-High-Speed Transmission System

Featuring low-inertia servo motor direct-drive and high-tension synchronous belts, it achieves 97% transmission efficiency and a maximum speed of 2311mm/s (30% faster than conventional slides), tripling logistics sorting efficiency compared to traditional chain systems.

Full-Stroke Modular Design

With a flexible 50-4000mm stroke range:

Short strokes (50-500mm) suit precision tasks like dispensing and visual inspection.
Long strokes (1000-4000mm) support cross-station handling in smart warehousing and automotive assembly.
Standardized interfaces enable rapid integration with multi-axis systems, reducing automation R&D cycles.

Rooted in German Industry 4.0 principles, the PTB Slide balances speed, load, and precision through aerospace-grade materials, low-friction transmission, and anti-torsion structures. It is the ideal choice for upgrading automation lines in high-tempo logistics and micron-level electronics manufacturing.

※ Basic specifications
Specification	Lead(mm)		40
	Max speed(mm/s)		2000
	Max speed (kg)	Horizontal	25
		Vertical	-
	Rated thrust (N)		100
	Standard stroke(mm)		20-3050mm/50 interval
Component	AC servo motor capacity		200
	Belt width		25
	High rigidity linear slider		W15×H12.5
	Origin sensor Plug		PM-T45(NPN)

(Unit:mm) (Unit:mm)

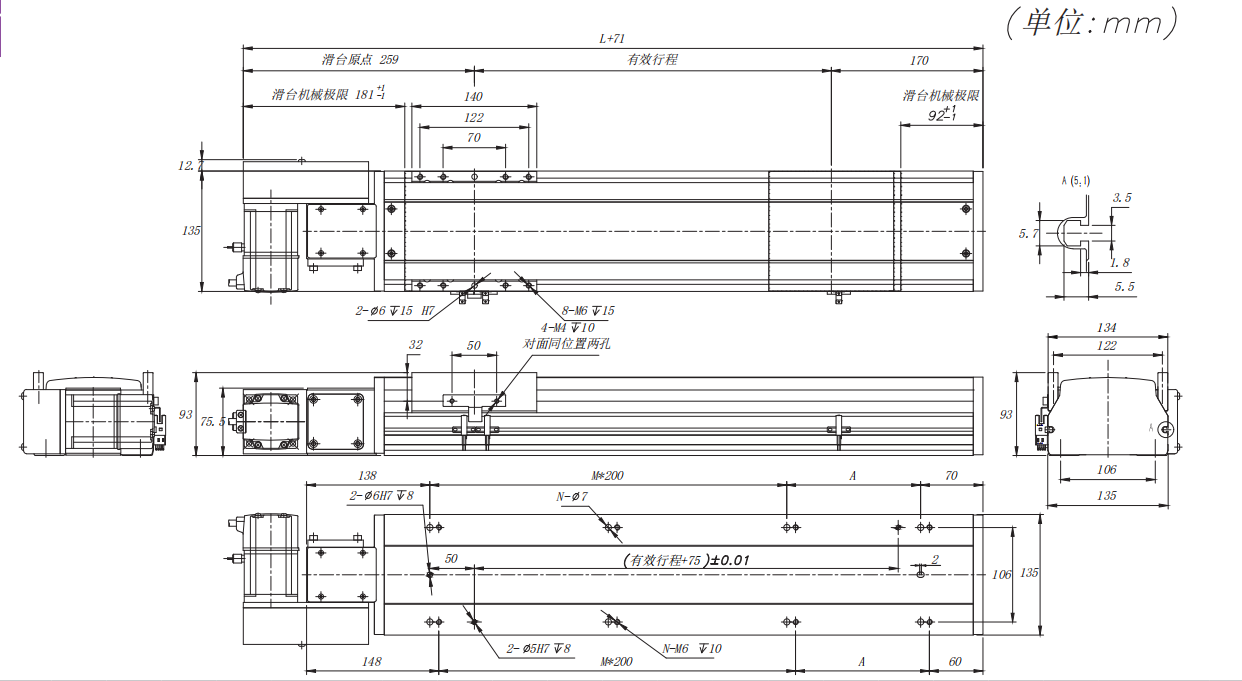

Horizontal installation	A	B	C	Side installation	A	B	C
10kg	1794	688	538	15kg	348	446	1170
20kg	858	324	253	18kg	285	365	961
25kg	670	251	197	25kg	197	251	670

Motor folds left up
Stroke	50	100	150	200	250	300	350	400		450		500		550		600		650		700		750
L	408	458	508	558	608	658	708	758		808		858		908		958		1008		1058		1108
A	200	50	100	150	200	50	100	150		200		50		100		150		200		50		100
M	0	1	1	1	1	2	2	2		2		3		3		3		3		4		4
N	4	6	6	6	6	8	8	8		8		10		10		10		10		12		12
KG	8.2	8.6	9	9.5	10	10.5	11	11.4		12		12.4		13		13.4		13.9		14.4		14.9
Stroke	800		850		900	950		1000		1050		1100		1150		1200	1250	1300	1350	1400	1450	1500
L	1158		1208		1258	1308		1358		1408		1458		1508		1558	1608	1658	1708	1758	1808	1858
A	150		200		50	100		150		200		50		100		150	200	50	100	150	200	50
M	4		4		5	5		5		5		6		6		6	6	7	7	7	7	8
N	12		12		14	14		14		14		16		16		16	16	18	18	18	18	20
KG	15.4		15.9		16.4	16.9		17.3		17.9		18.5		19.1		19.7	20.3	20.9	21.5	22.1	22.7	23.3
Stroke	1600	1650	1700	1750	1800	1850	1900		1950		2000		2050		2100		2150		2200		2250
L	1958	2008	2058	2108	2158	2208	2258		2308		2358		2408		2458		2508		2558		2608
A	150	200	50	100	150	200	50		100		150		200		50		100		150		200
M	8	8	9	9	9	9	10		10		10		10		11		11		11		11
N	20	20	22	22	22	22	24		24		24		24		26		26		26		26
KG	24.5	25.1	25.7	26.3	26.9	27.5	28.1		28.7		29.3		29.9		30.5		31.1		31.7		32.3
Stroke	2300		2350		2400	2450		2500		2550		2600		2650		2700		2750	2800	2850	2900	2950	3000
L	2658		2708		2758	2808		2858		2908		2958		3008		3058		3108	3158	3208	3258	3308	3358
A	50		100		150	200		50		100		150		200		50		100	150	200	50	100	150
M	12		12		12	12		13		13		13		13		14		14	14	14	15	15	15
N	28		28		28	28		30		30		30		30		32		32	32	32	34	34	34
KG	32.9		33.5		34.1	34.7		35.3		35.9		36.5		37.1		37.7		38.3	38.9	39.5	40.1	40.7	41.3

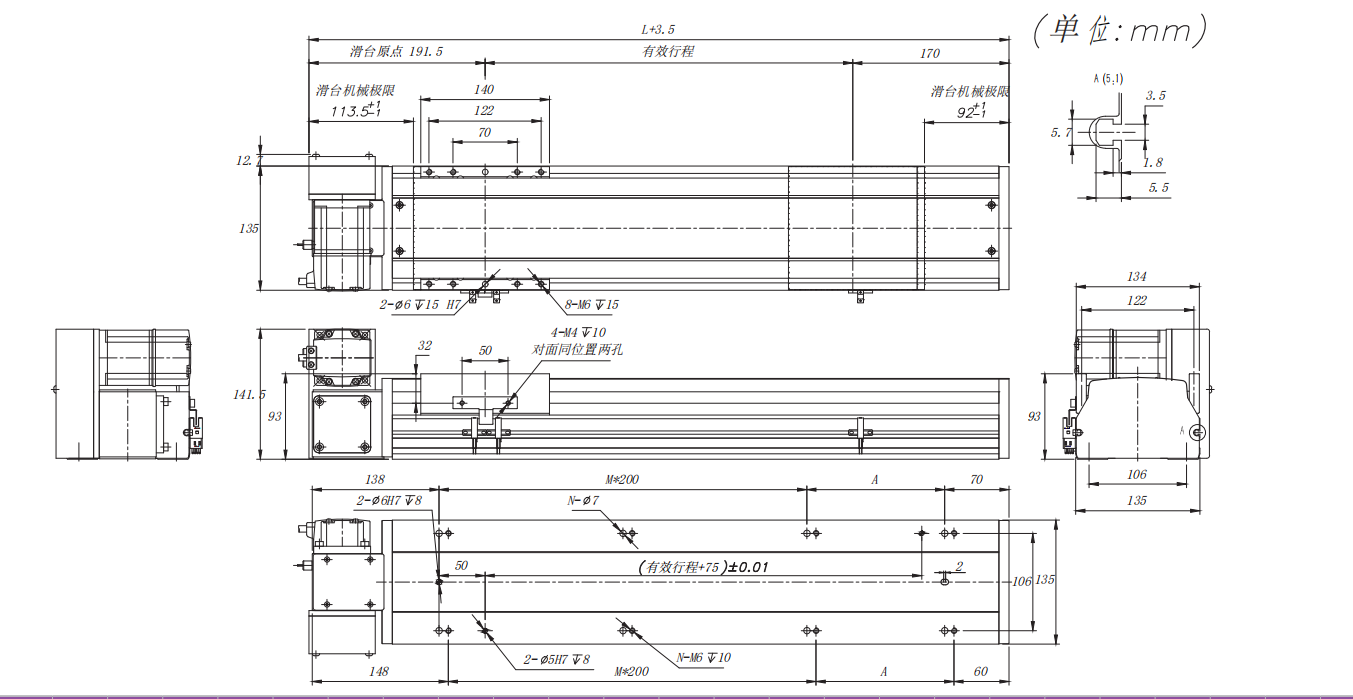

Motor folds left (unite:mm)

Stroke	50	100	150	200	250	300	350	400	450	500	550	600		650	700	750		800
L	408	458	508	558	608	658	708	758	808	858	908	958		1008	1058	1108		1158
A	200	50	100	150	200	50	100	150	200	50	100	150		200	50	100		150
M	0	1	1	1	1	2	2	2	2	3	3	3		3	4	4		4
N	4	6	6	6	6	8	8	8	8	10	10	10		10	12	12		12
KG	8.2	8.6	9	9.5	10	10.5	11	11.4	12	12.4	13	13.4		13.9	14.4	14.9		15.4
Stroke	850		900		950		1000		1050	1100	1150		1200	1250	1300	1350	1400	1450	1500	1550
L	1208		1258		1308		1358		1408	1458	1508		1558	1608	1658	1708	1758	1808	1858	1908
A	200		50		100		150		200	50	100		150	200	50	100	150	200	50	100
M	4		5		5		5		5	6	6		6	6	7	7	7	7	8	8
N	12		14		14		14		14	16	16		16	16	18	18	18	18	20	20
KG	15.9		16.4		16.9		17.3		17.9	18.5	19.1		19.7	20.3	20.9	21.5	22.1	22.7	23.3	23.9
Stroke	1600	1650	1700	1750	1800	1850	1900	1950	2000	2050	2100	2150		2200	2250		2300		2350
L	1958	2008	2058	2108	2158	2208	2258	2308	2358	2408	2458	2508		2558	2608		2658		2708
A	150	200	50	100	150	200	50	100	150	200	50	100		150	200		50		100
M	8	8	9	9	9	9	10	10	10	10	11	11		11	11		12		12
N	20	20	22	22	22	22	24	24	24	24	26	26		26	26		28		28
KG	24.5	25.1	25.7	26.3	26.9	27.5	28.1	28.7	29.3	29.9	30.5	31.1		31.7	32.3		32.9		33.5
Stroke	2400		2450		2500		2550		2600	2650	2700		2750	2800	2850	2900	2950	3000	3050
L	2758		2808		2858		2908		2958	3008	3058		3108	3158	3208	3258	3308	3358	3408
A	150		200		50		100		150	200	50		100	150	200	50	100	150	200
M	12		12		13		13		13	13	14		14	14	14	15	15	15	15
N	28		28		30		30		30	30	32		32	32	32	34	34	34	34
KG	34.1		34.7		35.3		35.9		36.5	37.1	37.7		38.3	38.9	39.5	40.1	40.7	41.3	419
