Smart Power Distribution Unit
Fully intelligent control, network encryption HTTPS SNMPv3, isolation, remote upgrade
1,System Introduction
HRD smart power distribution units (PDU) provide multiple power distribution port with complete protection, With rich configuration and complete functions, users can choose corresponding products according to needs, makes establishing data centers and integrated computer rooms more efficient.
Pic. 1-1 Horizontal PDU
Pic. 1-2 Vertical installation of 24-bit PDU single-phase/three-phase
Pic.1-3 Vertical installation of 20 PDUs
Pic.1-4 Vertical installation of 16 PDUs
2,System Feature
2.1,High performance
◆The double-precision high-tech calculation method provide accurate electric energy measurement and power factor data for a single socket.
◆Colored LCD display
It adopts a color LCD display to visually display voltage, current, power factor, electric energy, IP address, temperature and humidity, CAN/485 hardware address and other information.
◆Provides real-time power monitoring
High efficient data processing methods, real-time data monitoring for input current, voltage, power, power factor, electrical energy, frequency, etc., also the monitoring and control PDU can display current, power factor and energy of each socket, with curve image display function.
◆ Available for remotely turn on/off a single socket
Monitor and control PDU could management each sockets through HTTP, SNMP, SSH and other network protocols , At the same time, various protocols can provide encrypted SSL to make remote control more secure and reliable.
◆Socket metering function provided
Provide users with a basis for accurate calculation of PUE, plan and optimize the energy consumption of the data center based on this, reduce costs for load balancing and IT environment set up.
◆ Customized allowed alarm threshold set can warn potential circuit overload by real-time and remote alarm lower the risk.
◆ Advanced switch function, can realize user-defined logic control and independently realize the switch action and schedule of each socket position, also take intelligent actions according to environmental changes.
The user can control the PDU output switch according to the current threshold and temperature threshold, and provide multiple alarm at the same time. There is a parameter copy function between the sockets. After setting the parameters of one socket, it can be quickly copied to other sockets. With socket management function PDU, each socket can be controlled according to the time setting by user, it can realize 20 user-defined time period editing to meet the complex needs .
◆ Socket sequencing delay, in order to avoid circuit overload, and can customize the time
When switching sockets or powering on, the power-on time interval can be flexibly set between sockets, which is conducive to stable operation of the load and avoids surges.
◆ With socket grouping management function
PDU with single socket management, users can customize socket grouping, flexible socket grouping is conducive to user classification management of sockets. The hardware is also divided into 3 groups independently, each with 8 sockets. Each 8-bit socket of the three-phase PDU is also electrically isolated.
◆ Users can access and configure via a secure Web, SNMP, SSH or Telnet interface, easy to operate and integrate.
◆ Provide 2ways temperature and humidity sensor, 3 ways input and 1way output port
◆ Provide isolated CANbus, RS485 serial networking mode
The PDU not only provides common SNMP management functions in data centers, but also collects data and controls equipment through serial methods such as CAN bus and RS485. In small and medium-sized data centers or environments without network conditions, the PDU can provide multiple integration methods to facilitate secondary development for users.
◆ Compatible with Jeidar SNMP Link network management system.
SNMP Link provides power equipment management and environmental parameter detection for the dynamic environment monitoring system of Jeidar small and medium data centers. The equipment that SNMP Link can manage includes power distribution cabinets, PDUs, ATS, UPS, air conditioners and other equipment. For details, please refer to the SNMP Link description.
2.2,Multiple network service
HTTP supports standards above TLS1.0 and has a high security level.
Provides SNMP function for re-developing and facilitate the integration of other software with SNMP network management SNMPv3 also provides encryption protection.
Support network command line to view and operate devices, and SSH provides network security encryption.
Network clock synchronization, this function can provide accurate device time when the device is connected to the Internet.
Event log mainly records equipment operations and alarms, and the operation log provides equipment data records, including equipment input and socket output information, and power records.
This function is mainly used for quick configuration of batch PDUs. The user can set the parameters of a PDU, then download the parameters of the PDU, and upload the parameters to other PDUs of the same type to realize the rapid configuration of the device. At the same time, setting parameters can also be downloaded and backed up. Once reset is required, quick configuration saves time.
2.3,Safe and stable
Support TLS Encrypted authentication, SNMPV3 communication, Alternative encryption, SSL mail sending, support network firewall.
All external sensor interfaces and communication interfaces are isolated. Further improve the electrical performance of equipment and communication security.
When an abnormality occurs and the device is restored, it has the ability to maintain the original state of the memory and restore it quickly.
3,Specification :
| Function | Types | ||
| Basic | Centralized Monitoring | Each Socket Monitoring and Control | |
| Input power detection | ● | ● | ● |
| Input voltage detection | ● | ● | ● |
| Input current detection | ● | ● | ● |
| Input capacity detection | ● | ● | ● |
| Input power factor detection | ● | ● | ● |
| Input frequency detection | ● | ● | ● |
| Temperature/Humidity detection | ● | ● | ● |
| Dry contact detection | ● | ● | ● |
| Relay alarm output linkage | ● | ● | ● |
| Each sockets output current detection | ● | ● | |
| Each sockets output capacity detection | ● | ● | |
| Each sockets current Upper/Lower limited | ● | ● | |
| Each sockets output power calculate | ● | ● | |
| Each sockets output switch control | ● | ||
| Each sockets sockets on/off time setting | ● | ||
| Sockets group management | ● | ● | |
Note: ●indicates that this series of products has this function.
4,Input and output specifications with size
Horizontal PDU (single phase)

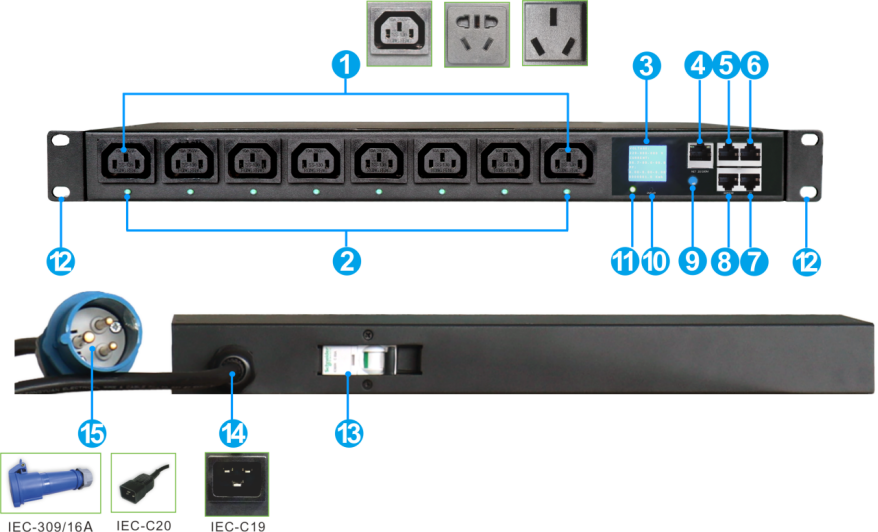

Pic. 4-1 Horizontal PDU outlook
| No. | Remark | No. | Remark |
| 1 | Standard: Overseas 8-bit 10A international standard C13 output socket; domestic 8-bit national standard 3-hole Non-standard: accept customization | 9 | Scroll |
| 2 | 8* light indicator | 10 | Reset |
| 3 | Colored LCD display | 11 | Running indicator |
| 4 | NET 10/100M port | 12 | Hanger |
| 5 | Input 485/CANBUS | 13 | Input breaker 16A/1P (optional) |
| 6 | Output 485/CANBUS | 14 | PDU Input or IEC-C19 |
| 7 | IO port | 15 | Standard configuration: Overseas customers specify the output method (excluding wires); domestic national standard Samsung Optional input is IEC-309 industrial connector, etc. |
| 8 | SENSOR (Temperature/Humidity) |
Note: Horizontal PDU has 9 different input and output modes.
Vertical PDU (Single phase):
| No. | Remark | No. | Remark |
| 1 | 24outputs: Standard: Overseas 21-bit 10A international standard C13 output socket Domestic 21-bit 10A national standard 3-hole output socket 20 digits: Standard: Overseas 16-bit 10A international standard C13 output socket Domestic 16-bit 10A national standard 3-hole output socket 16 outputs: Standard: Overseas 12-bit 10A international standard C13 output socket Domestic 12-bit 10A national standard 3-hole output socket | 9 | Confirm/ Scroll |
| 2 | 24 outputs: Overseas 3-position 16A international standard C19 socket Domestic 3-position 16A national standard 3-hole output socket 20 digits: Overseas 4-bit 16A international standard C19 socket Domestic 4-bit 16A national standard 3-hole output socket 16 outputs: Overseas 4-bit 16A international standard C19 socket Domestic 4-bit 16A national standard 3-hole output socket | 10 | Reset |
| 3 | 2.4inch LCD display | 11 | Running indicator |
| 4 | NET 10/100M network port | 12 | Each indicator |
| 5 | Input 485/CANBUS | 13 | Input breaker 16A/1P or 32A/2P (optional) |
| 6 | Output 485/CANBUS | 14 | PDU input |
| 7 | IO port | 15 | Standard configuration: Overseas customers specify the output method (excluding wires); domestic national standard Samsung Option: input end is IEC-309 industrial connector 16A, etc. |
| 8 | SENSOR port(Temperature & Humidity) | 16 | 24outputs indicator, 16outputs indicator |
Pic 4-2 Appearance of vertical single-phase PDU
Vertical PDU (Three phase):
Pic 4-3 Appearance of vertical three-phase PDU
| No. | Remark | No. | Remark |
| 1 | Standard: Overseas, three-phase output, each phase 7-bit 10A international standard C13 output socket; Domestic, three-phase output, each phase 7-bit 10A national standard hole output socket | 9 | Confirm/ Scroll |
| 2 | Standard: Overseas, three-phase output, each phase 1 bit 16A international standard C19 output socket Domestic, three-phase output, each phase 1 bit 16A national standard 3-hole output socket | 10 | Reset |
| 3 | 2.4inches LCD screen | 11 | Running indicator |
| 4 | NET 10/100M network port | 12 | Each indicator |
| 5 | Input 485/CANBUS | 13 | Input switch 16A/3P or 32A/3P (option) |
| 6 | Output 485/CANBUS | 14 | PDU input |
| 7 | IO port | 15 | Standard input terminal (without power cord) Option input is IEC-309 industrial connector 32A |
| 8 | SENSOR port(Temperature & Humidity) | 16 | 24outputs indicator |
5,PDU Remote Monitoring

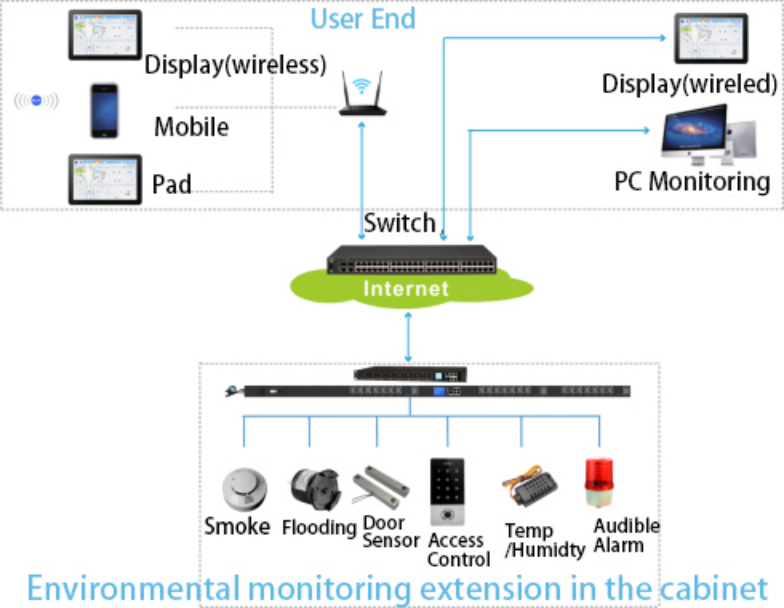

JPDU remote monitor topology
6,PDU naming
7,Main parameter list of intelligent series products:
7.1 Horizontal 8 outputs intelligent product main parameter table (single phase):
| Output | |
| Rated output voltage | 220Vac |
| Overload protection | Available |
| Max. current consumption | 16A |
| Output sockets | Standard: Overseas 8-bit IEC 320 C13; domestic 8-bit national standard 3 holes Non-standard: accept customization (such as: national five holes, American style, etc.) |
| Input | |
| Rated Input Voltage | 200Vac/ 208Vac/230Vac |
| Input Frequency | 50/60 Hz |
| Input Terminal block | Standard: Overseas customers specify the output method; domestic national standard Samsung Non-standard: accept customization (such as: IEC 309 32A 2P+E, national standard, American standard, European standard, British standard, etc.) |
| Cable length | 2.5m |
| Input voltage range | 220-240Vac |
| Cable quantity | 1(optional) |
| Bear capacity | 3700VA |
| Max. input current | 16A |
| Max. circuit current | 16A |
| Physical parameter | |
| H | 44mm,4.4cm(without connector) |
| W | 436mm,43.6cm(without hander) |
| D | 168mm,16.8cm (without air switch) |
| Installation cover distance | 460mm,46.0cm(with hanger) |
| N.W. | 2.9kg |
| G.W. | 3.6kg |
| pkg height | 120mm, 12.0cm |
| Pkg width | 500mm,50.0cm |
| Pkg depth | 400mm,40.0cm |
| Enclosure material | SGCC metal sheet |
| Color | Black |
| Environment | |
| Working Temperature | -5 - 55 °C |
| Working Humidity | 5 - 95 % |
| Working Altitude | 0-3000 m without derating |
| Storage Temperature | -25 - 75 °C |
| Storage Humidity | 5 - 95 % |
| Storage Altitude | 0-15000m |
| Warranty | |
| Standard warranty | 2years |
| RoHS | Conform |
| Battery directive | Available |
Warm reminder: The above parameters are for reference only, in case of technical upgrade parameters change, it is recommended to consult the online customer service for the actual parameters of the product.
SGCC is hot-dip galvanized steel. S means steel, G means galvanized, C means cold rolled, and C means common grade. Advantages of SGCC: anti-rust, anti-corrosion, strong weather resistance.
7.2 Vertical PDU specification --24/20/16outputs(Single phase):
Note: The above parameters are for reference only, in case of technical upgrade parameters change, it is recommended to consult the online customer service for the actual parameters of the product.
SGCC is hot-dip galvanized steel. S means steel, G means galvanized, C means cold rolled, and C means common grade. Advantages of SGCC: anti-rust, anti-corrosion, strong weather resistance.
|
