18.5 inch TFT LCD with LVDS Interface 30PIN High Resolution 1920x1080 Pixel 1200 nits Storage temperatures -30 80 °C

18.5 inch TFT LCD with LVDS Interface 30PIN High Resolution 1920x1080 Pixel 1200 nits Storage temperatures -30 80 °C

18.5 inch TFT LCD with LVDS Interface 30PIN High Resolution 1920x1080 Pixel 1200 nits Storage temperatures -30 80 °C
18.5 inch TFT LCD with LVDS Interface 30PIN High Resolution 1920x1080 Pixel 1200 nits Storage temperatures -30 80 °C
Categories TFT LCD Display
Brand Name: AISON
Model Number: Z185BMN181-H4801
Certification: ISO9001 / ISO14000/ROHS
Place of Origin: Guangdong,China
MOQ: 1
Price: Negotiable
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 300k/month
Delivery Time: 7 working days
Packaging Details: Blister Package/Carton
LCM: BOE 18.5 inch FHD LCD Display
Number of pixels: 1920x1080
Dimensional outline: 430.37(H)*254.6(V)*11.2(D)
Active area: 408.96 (H) × 230.04(V)mm
Interface: LVDS 30PIN
Viewing angle: 85/85/85/85
Brightness: 350 cd/m2 or custom
Display mode: Normally Black
Viewing Direction: ALL/IPS
Operating temperatures: -30 ~ 80 °C
Storage temperatures: -30 ~ 80 °C
Contact Now
Company Info.
Aison Technology (HK) Co.,Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

18.5 inch TFT LCD with LVDS Interface 30PIN High Resolution 1920x1080 Pixel 1200 nits Storage temperatures -30 80 °C

BOE 18.5 inch FHD 1920X1080 TFT Display GV185FHM-N10-3M30 LVDS 30 Pin -30 ~ 80 Degree


General Description

1.1 Introduction


1.0.1 Introduction
Z185BMN181-H4801 is a color active matrix TFT LCD module using amorphous silicon FT's (Thin Film Transistors) as an active switching devices. This module has a 18.5 inch diago ally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array).Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7 M colors.

1.2 Features


LED back-light

LVDS interface

RoHS Compliant

16.7M color depth

FHD1920X1080

Wide Temperature


General Data

Model Name18.5 inch TFT Display Module
Resolution1920(RGB)×1080, FHD
Model Size (W*H*T)430.37(H)*254.6(V)*11.2(D)
Display Area (W*H)408.96(W)×230.04(H) mm
InterfaceLVDS
Display ModeNormally Black,Transmissive
ViewingIPS
Brightness120 cd/m2
Pin number30 pin
Contrast Ratio1200:1
Operating temperatures-30 ~ 80 °C
Storage temperatures-30 ~ 80 °C

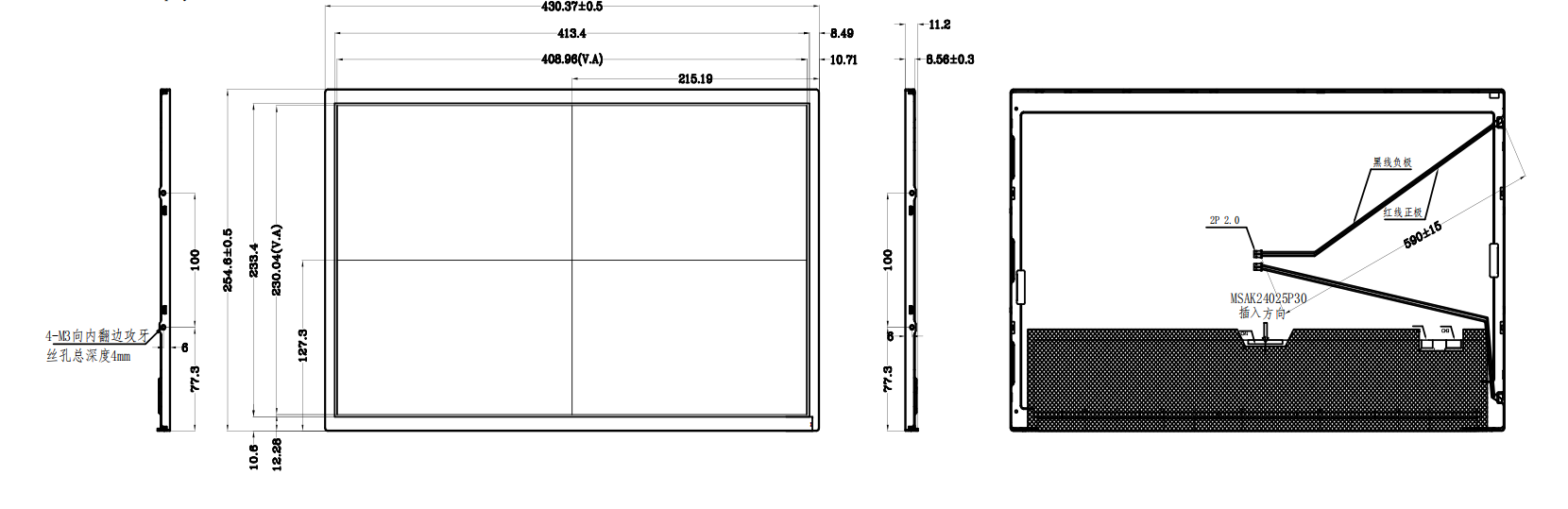

Drawing


Product Details



TFT Applications:


The 18.5 inch FHD TFT display modules are suitable for many varied applications including industrial process control, factory automation, in-vehicle systems, instrumentation, point-of-sale systems, digital signage, and medical equipment.


Product Tags:

30PIN TFT LCD



1200 nits TFT LCD



LVDS Interface TFT LCD


Cheap 18.5 inch TFT LCD with LVDS Interface 30PIN High Resolution 1920x1080 Pixel 1200 nits Storage temperatures -30 80 °C for sale
