| Categories | TFT LCD Display |
|---|---|
| Brand Name: | AISON |
| Model Number: | Z035HV24 |
| Certification: | ISO9001 / ISO14000/ROHS |
| Place of Origin: | Guangdong,China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 200k/month |
| Delivery Time: | 7 working days |
| Packaging Details: | Carton/Blister |
| LCM: | 3.5 inch Portrait SPI LCD Module |
| Resolution: | 320x480 |
| Module dimension: | 54.5x83x2.1mm |
| Active area: | 48.96x73.44mm |
| Display Interface: | SPI |
| Brightness: | 350 cd/m2 |
| Display mode: | TFT,Normally Black |
| Driver IC: | ILI9488 |
| Operating temperatures: | -20 to 70 degree |
| Storage temperatures: | -30 to 80 degree |
| Company Info. |
| Aison Technology (HK) Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
3.5'' 320x480 IPS Portrait TFT LCD Module Display with SPI Interface
Z035HV24 is a 3.5-inch TFT LCD display with an IPS panel. This lcd modul is integrated with the ILI9488 driver IC, supporting SPI interfaces,with a typical brightness of 350 nits and a contrast ratio of 800:1.
This 3.5 inch 320x480 display SPI TFT LCD, providing a clear and crisp visual experience for various applications.
The 3.5'' IPS panel is with IPS viewing 85/85/85/85.The Z035HV24 can operate in temperatures ranging from -20℃ to +70℃, and its storage temperature range is from -30℃ to +80℃.
General Data
| Product Name | 3.5 inch Portrait LCD Module |
| Number of Pixel | 320x480 |
| Interface | SPI |
| Luminance(cd/m2) | 350 cd/m2 |
| Active area | 48.96x73.44mm |
| LCM (W x H x D) | 54.5x83x2.1mm |
| Viewing Direction(eye) | ALL/IPS |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |

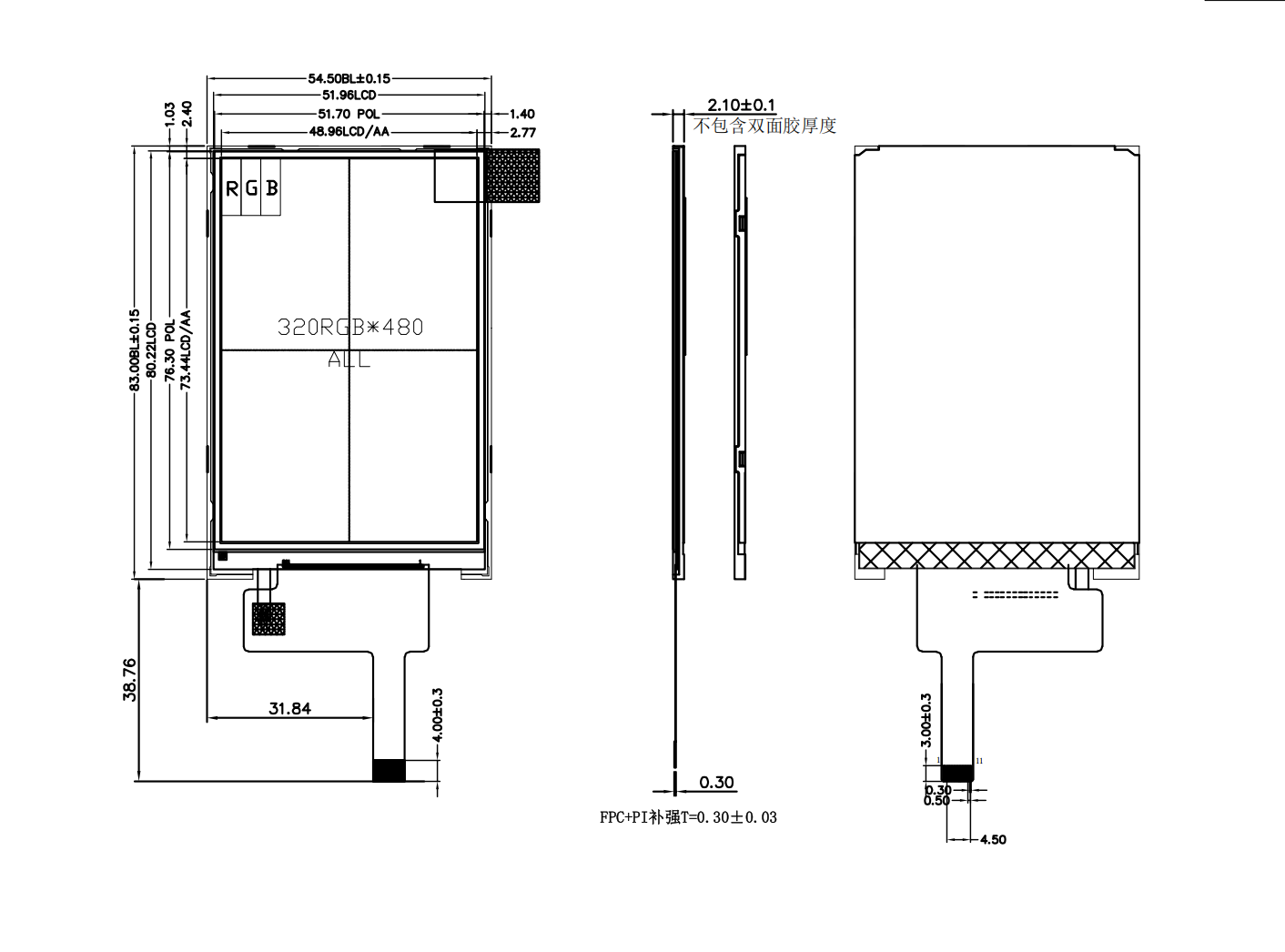

Drawing
TFT Applications
Overall,this 3.5 inch SPI tft display is a versatile and high-performance display screen that is suitable for a wide range of applications, including industrial control systems, home automation, and portable electronics.
|
