Temperature Control High Temperature Box Furnace PID Auto-tuning High Temperature Box Furnace

I. Equipment Overview
Name/Model:

HBF52-17NO High-Temperature Box Furnace
Application:
Suitable for high-temperature sintering processes such as ITO targets, microwave ferrites, magnetic materials, electronic components, and ceramic filters. Supports air/oxygen atmosphere environments.

II. Core Parameters
Item | Specification
Rated Temperature | 1650°C
Maximum Temperature | 1700°C (short-term achievable)
Effective Chamber Size | 350×300×500mm (W×H×D)
Heating Element | U-shaped molybdenum disilicide rods (high-temperature resistant, long lifespan)
Temperature Control Accuracy | ±1°C (PID auto-tuning function)
Temperature Uniformity | ±5°C (tested at 1650°C for 2 hours, empty furnace)
Thermocouple Type | Type B (single-point measurement at side center)
Temperature Control Program | 4×16 programmable segments (flexible heating/soaking curve setup)

III. Features & Safety
Atmosphere Control: Supports air or oxygen environment; top exhaust chimney with automatic lid.
Protection System:

• Over-temperature and thermocouple failure alarms (audible & visual)
• Automatic power cutoff for over-temperature
  Power Parameters:
• Maximum Heating Power: 25kW
• Empty Furnace Holding Power: ≤10kW
  Heating Rate:
• RT→1200°C: ≤5°C/min
• 1200→1700°C: ≤2°C/min
  Surface Temperature Rise: ≤40°C (safety protection design)

IV. Physical Parameters
Item | Specification
Equipment Weight | ≈950kg
Dimensions | 1620×1960×1220mm (W×H×D)
Color | Light gray

V. Operating Environment Requirements
Environmental Conditions:

• Temperature: 0～40°C
• Humidity: ≤80%RH (non-corrosive gases, no strong airflow disturbance)
  Gas Supply Requirements:

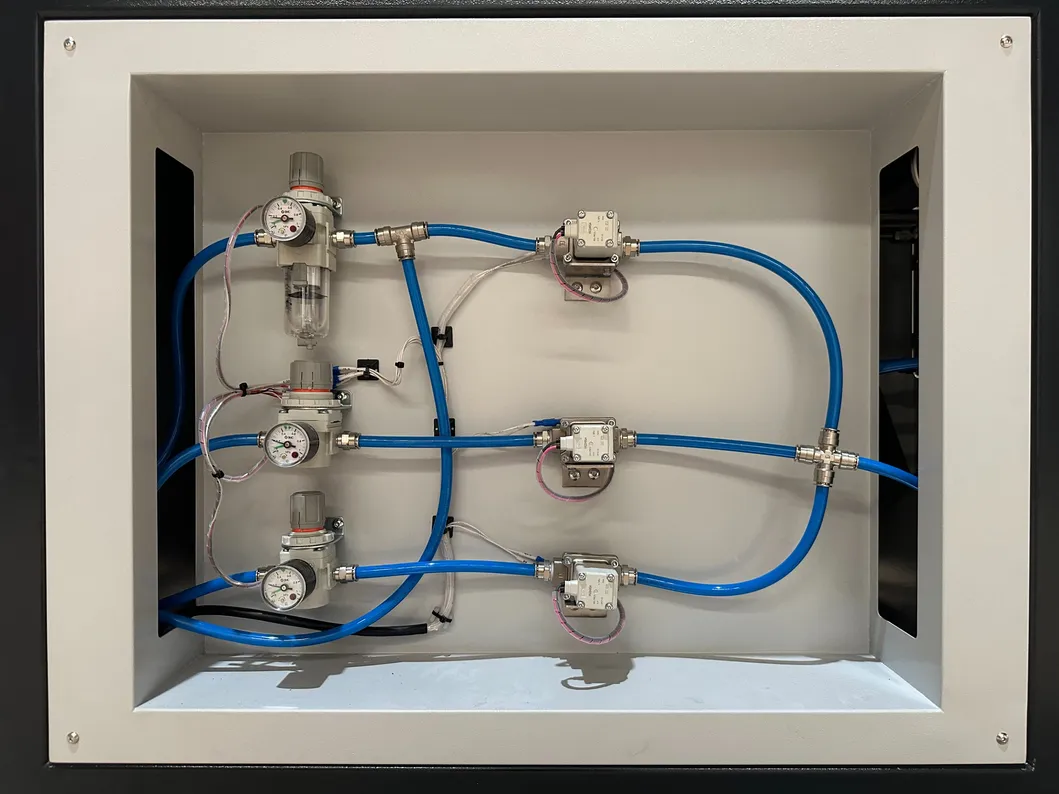

• Clean dry compressed air: 0.2～0.4MPa, consumption 2～6m³/h
• High-purity oxygen: same pressure range, consumption 2～6m³/h
  Ventilation System:
• Must connect to user exhaust system with capacity ≥10m³/h
  Floor Conditions:
• Level, vibration-free, load-bearing >300kg/m²
  Electrical Requirements:
• 3-phase 5-wire system, capacity ≥34KVA
• Voltage: 220/380V, frequency 50Hz
• Wire color code: L1 yellow/L2 green/L3 red/N blue/PE yellow-green
  Installation Space:
• Minimum site: 2000×3000×1500mm (W×H×D)
• Recommended area: >3m²

VI. Precautions
Safety Operation: Professional installation and commissioning required; strictly follow heating curves to avoid thermal shock.
Maintenance Advice: Regularly inspect heating elements and thermocouples; ensure gas path sealing.
Environmental Compliance: Exhaust must be treated via user system to avoid direct high-temperature gas emission.

Detailed Photos
