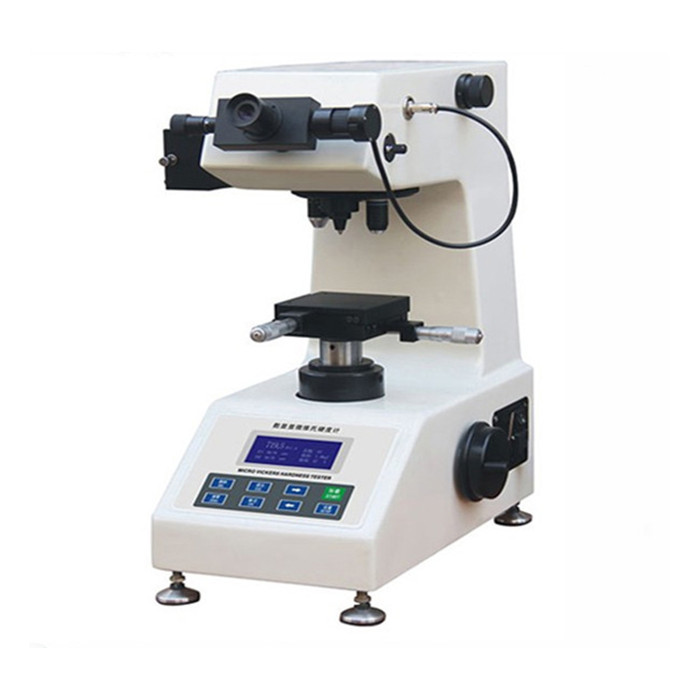

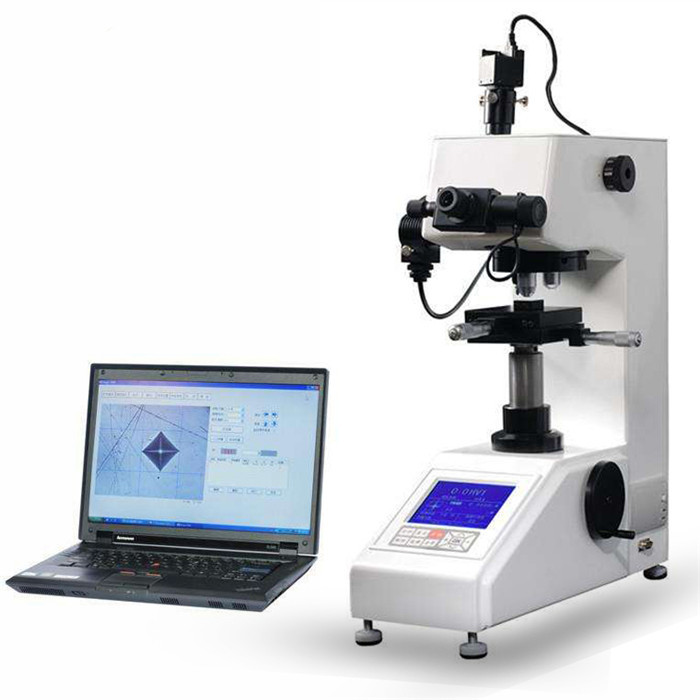

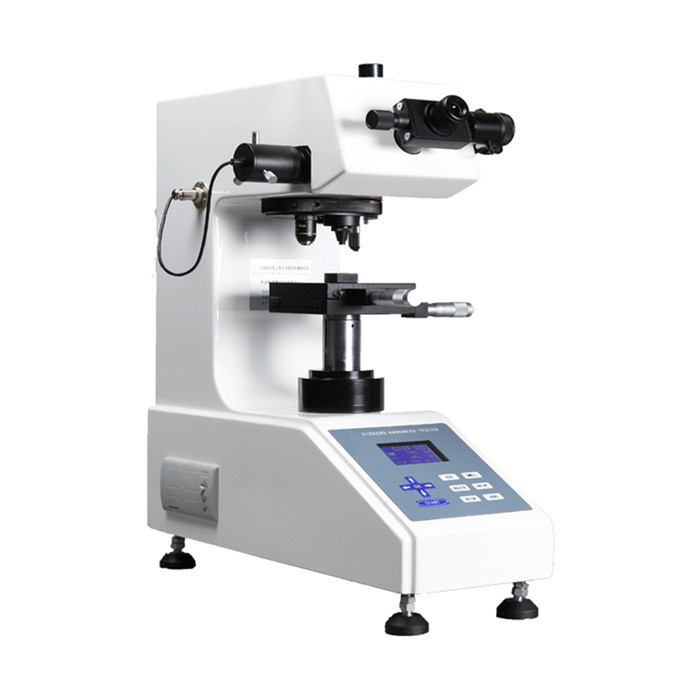

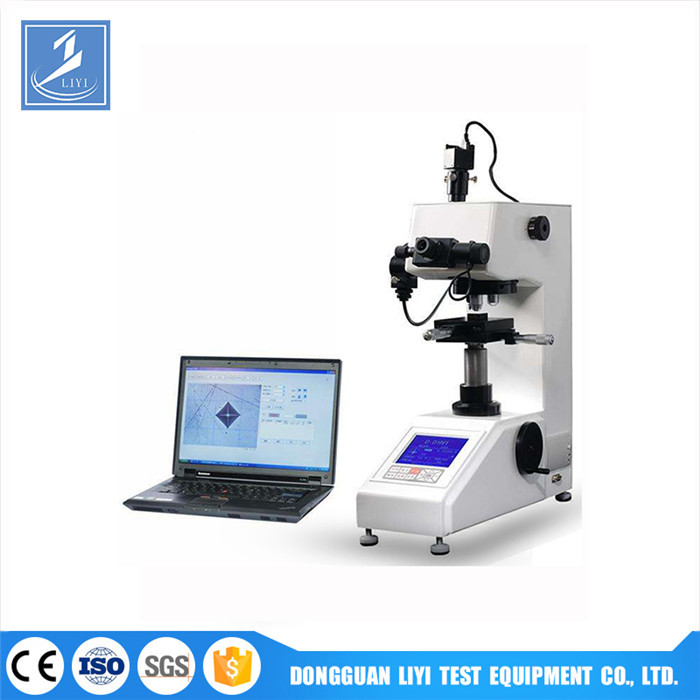

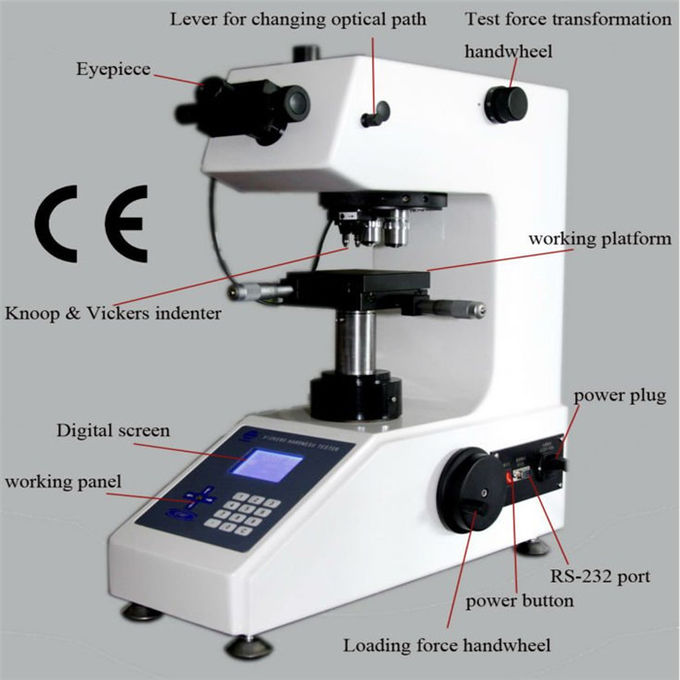

Hv0.3 - Hv10 Manual Turret Digital Vickers Hardness Testing Machine
Main Function:
Digital Macro Vickers hardness tester is a high-tech and new
product combining the optics, mechanic and electrics features. It
improves the precision of the test force and the repeatability and
stability of the indicating value. With digital measuring eyepiece,
no need for checking the table or inputting the diagonal of the
indentation, it can directly shows the test force, indentation
length, dwell time, test numbers, conversion scale, date and time.
As long as press the eyepiece button after measuring the
indentation length, it can automatically get the hardness value and
shows on the screen.
With built-in printer & RS232 interface, and equipped with data
statistic and storage function.
Application:
Specification:
| Model | DV-10AT-8P | DV-10MT-8P |
| Turret | Automatic turret | Manual turret |
| Hardness scale | HV0.3, HV0.5, HV1, HV3, HV5, HV10 | |
| Test Force | 0.3kgf, 0.5kgf, 1kgf, 3kgf, 5kgf, 10kgf 2.94N, 4.90N, 9.80N, 29.4N, 49N, 98N9.8N, 49.0N, 98.0N, 196N, 294N, 490N | |
| Hardness conversion | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T | |
| Hardness range | 8-2900HV | |
| Min measuring unit | 0.01µm | |
| Force loading | Automatic loading - dwell - unloading | |
| Eyepiece | 10X digital eyepiece with built-in encoder, auto calculate | |
| Objective | Standard: 10X, 20X (both lens can be used measuring & observe) | |
| Magnification | Standard: 100X, 200X | |
| Dwell time | 1-99S | |
| Data output | 8 inches touch screen, Built-in Printer, RS232 Interface | |
| Test space | 160*135MM (H*D) | |
| Power supply | AC220V+5%,50-60Hz | |
| Standard | ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 | |
| Overall Dimension | 600x220x700mm | |
| Net weight | 55Kg | |
| Package size | 800*470*800mm | |
| Gross weight | 78kg | |
| Item | Quantity |
| Main Instrument | 1 set |
| 10X Digital Micro Eyepiece | 1 piece |
| 10X Objective lens | 1 piece |
| 20X Objective lens | 1 piece |
| Vickers diamond indenter | 1 piece |
| Large testing table | 1 piece |
| Middle testing table | 1 piece |
| V shape testing table | 1 piece |
| Horizontal Regulating Screw | 4 pieces |
| Weights | 4 pieces |
| Level | 1 piece |
| Power Cable | 1 piece |
| Fuse 2A | 2 pieces |
| Dust cover | 1 piece |
| Warranty card | 1 piece |
| Manual book | 1 piece |
Product Effects
Company Information
LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Our Services
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem
controller freely, even it's not from our factory. What you need to
do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract,
which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
|
