Outdoor Split Core Current Transformer , Split Core Current Transducer

SCTK732B Series Split Core Current Transformer with Current Range 0.5A to 6000A,Current sensor

SCTK732B series retro-fit (split-core) current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.

Features:

Test range: 0.5A - 6000A AC input, output of 0.333VAC or 0-5A
Test precision class: 0.2, 0.5 ,1.0
Current Transformer secondary windings uniformly distributed along the core circumference,the use of ABS
flame retardant plastic shell for transformer insulation
The middle of the window for the bus to wear around.
The Secondary windings Uniform Around the system,which magnetic Flux Leakage is small With stable performance, light weight, convenient installation, etc.

Applications:

Current measurement, monitoring and protection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting, air compressor,heating
Entilation system, air-condition equipment and automation – control system.
Current, power and energy monitoring device.

Electrical Parameter

Rated Input	0.5A-6000A
Measuring range	10%In-130%In
Rated Output	0.333V(AC) or 0-5A
Ratio	≤± 0.2％
Phase angle	≤ ±10min
Dielectric strength	5.0KV/1mA/1min
Insulation Resistance	DC500V/100MΩmin

Mechanical Parameter

Case	PC+ABS/UL94-V0
Bobbin	PC+ABS
Core	Silicon
Internal structure	Epoxy
Construction	Tie
Operating Temp	－25℃～＋75℃
Operating Humidity	≤85%

Type selection

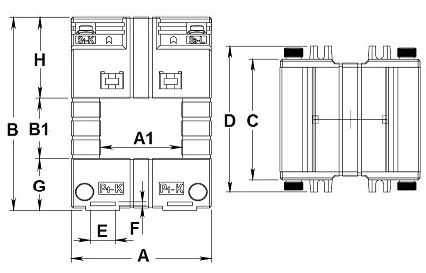

P/N	Input (A)	Output (A/V)	Accuracy	Dimensions(mm)
				A1	B1	A	B	C	D	E	F	G	H
SCTK732B-330	0-630A	1A/5A/0.333V	0.2,0.5,1.0	33	32	69	119	64	78	13	2	43	43
SCTK732B-430	0-800A	1A/5A/0.333V	0.2,0.5,1.0	43	32	79	119	64	78	13	2	43	43
SCTK732B-530	0-1250A	1A/5A/0.333V	0.2,0.5,1.0	53	32	89	119	64	78	13	2	43	43
SCTK732B-630	0-1600A	1A/5A/0.333V	0.2,0.5,1.0	63	32	99	119	64	78	13	2	43	43
SCTK732B-830	0-2000A	1A/5A/0.333V	0.2,0.5,1.0	83	32	119	119	64	78	13	2	43	43
SCTK732B-1030	0-3000A	1A/5A/0.333V	0.2,0.5,1.0	103	32	139	119	64	78	13	2	43	43
SCTK732B-1230	0-3600A	1A/5A/0.333V	0.2,0.5,1.0	123	32	159	119	64	78	13	2	43	43
SCTK732B-1330	0-4000A	1A/5A/0.333V	0.2,0.5,1.0	133	32	169	119	64	78	13	2	43	43
SCTK732B-1430	0-5000A	1A/5A/0.333V	0.2,0.5,1.0	143	32	179	119	64	78	13	2	43	43
SCTK732B-1830	0-5000A	1A/5A/0.333V	0.2,0.5,1.0	183	32	219	119	64	78	13	2	43	43
SCTK732B-350	0-630A	1A/5A/0.333V	0.2,0.5,1.0	33	55	69	141	64	78	13	2	43	43
SCTK732B-450	0-800A	1A/5A/0.333V	0.2,0.5,1.0	43	55	79	141	64	78	13	2	43	43
SCTK732B-550	0-1250A	1A/5A/0.333V	0.2,0.5,1.0	53	55	89	141	64	78	13	2	43	43
SCTK732B-650	0-1600A	1A/5A/0.333V	0.2,0.5,1.0	63	55	99	141	64	78	13	2	43	43
SCTK732B-850	0-2000A	1A/5A/0.333V	0.2,0.5,1.0	83	55	119	141	64	78	13	2	43	43
SCTK732B-1050	0-3000A	1A/5A/0.333V	0.2,0.5,1.0	103	55	139	141	64	78	13	2	43	43
SCTK732B-1250	0-3600A	1A/5A/0.333V	0.2,0.5,1.0	123	55	159	141	64	78	13	2	43	43
SCTK732B-1350	0-4000A	1A/5A/0.333V	0.2,0.5,1.0	133	55	169	141	64	78	13	2	43	43
SCTK732B-1450	0-5000A	1A/5A/0.333V	0.2,0.5,1.0	143	55	179	141	64	78	13	2	43	43
SCTK732B-1850	0-5000A	1A/5A/0.333V	0.2,0.5,1.0	183	55	219	141	64	78	13	2	43	43
SCTK732B-2050	0-5000A	1A/5A/0.333V	0.2,0.5,1.0	203	55	239	141	64	78	13	2	43	43
SCTK732B-2250	0-5000A	1A/5A/0.333V	0.2,0.5,1.0	223	55	259	141	64	78	13	2	43	43
SCTK732B-2650	0-6000A	1A/5A/0.333V	0.2,0.5,1.0	263	55	299	141	64	78	13	2	43	43
SCTK732B-380	0-630A	1A/5A/0.333V	0.2,0.5,1.0	33	82	69	168	64	78	13	2	43	43
SCTK732B-480	0-800A	1A/5A/0.333V	0.2,0.5,1.0	43	82	79	168	64	78	13	2	43	43
SCTK732B-580	0-1250A	1A/5A/0.333V	0.2,0.5,1.0	53	82	89	168	64	78	13	2	43	43
SCTK732B-680	0-1600A	1A/5A/0.333V	0.2,0.5,1.0	63	82	99	168	64	78	13	2	43	43
SCTK732B-880	0-2000A	1A/5A/0.333V	0.2,0.5,1.0	83	82	119	168	64	78	13	2	43	43
SCTK732B-1080	0-3000A	1A/5A/0.333V	0.2,0.5,1.0	103	82	139	168	64	78	13	2	43	43
SCTK732B-1280	0-3600A	1A/5A/0.333V	0.2,0.5,1.0	123	82	159	168	64	78	13	2	43	43
SCTK732B-1380	0-4000A	1A/5A/0.333V	0.2,0.5,1.0	133	82	169	168	64	78	13	2	43	43
SCTK732B-1480	0-5000A	1A/5A/0.333V	0.2,0.5,1.0	143	82	179	168	64	78	13	2	43	43
SCTK732B-1880	0-5000A	1A/5A/0.333V	0.2,0.5,1.0	183	82	219	168	64	78	13	2	43	43
SCTK732B-2080	0-5000A	1A/5A/0.333V	0.2,0.5,1.0	203	82	239	168	64	78	13	2	43	43
SCTK732B-2280	0-5000A	1A/5A/0.333V	0.2,0.5,1.0	223	82	259	168	64	78	13	2	43	43
SCTK732B-2680	0-6000A	1A/5A/0.333V	0.2,0.5,1.0	263	82	299	168	64	78	13	2	43	43

Notes: Product specifications can be customized
