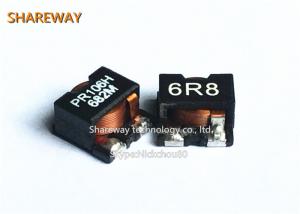

Durable Surface Mount High Power Inductor 0.36uH-13.5uH Inductance MOX-HCSM-104

Durable Surface Mount High Power Inductor 0.36uH-13.5uH Inductance MOX-HCSM-104

Durable Surface Mount High Power Inductor 0.36uH-13.5uH Inductance MOX-HCSM-104
Durable Surface Mount High Power Inductor 0.36uH-13.5uH Inductance MOX-HCSM-104
Categories SMD Power Inductor
Brand Name: Shareway
Model Number: MOX-HCSM-104
Certification: RoHS,ISO9001-2001
Place of Origin: Guangdong,shenzhen
MOQ: 500/1000
Price: Supportive
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Delivery Time: Stock Or 3 weeks
Packaging Details: Reel/Tray
Product name: MOX-HCSM-104 Surface Mount High Power Inductors 0.36uH to 13.5uH
Inductance: 0.36uH to 13.5uH
Mount type: Surface Mount
Type: High Power Inductors
Features: Flat wire construction.
Operating temperature: -40°C to +125°C
Contact Now
Company Info.
SHAREWAY TECHNOLOGY CO., LTD.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Durable Surface Mount High Power Inductor 0.36uH-13.5uH Inductance MOX-HCSM-104

MOX-HCSM-104 Surface Mount High Power Inductors 0.36uH to 13.5uH

Features:

  • High frequency design.
  • Operating temperature: -40°C to +125°C.
  • Flat wire construction.
  • Excellent thermal stability.
  • MoxiE Inductor Corporation custom designs available

  • inductance test: HP4284A @ 100kHz/1V or equivalent.
  • OCL: Open Circuit Inductance test parameters:100kHz, 0.1Vrms, 0.0Adc.
  • OCL@-40°C can be lower than OCL@20°C by 15% max.
  • Isat¹ Amperes Peak for approximately 30% rolloff (@25°C)
  • Irms² DC current for an approximate DT of 40°C without core loss.
  • PCB layout, trace thickness and width, air-flow, and proximity of heat generating components will affect the overall temperature rise.
  • MoxiE recommends that the temperature of the part not exceed 125°C under worst case operating conditions verified in the end application.
  • Derating is necessary for AC currents.
  • Storage temperature: -40ºC to +125ºC.

Part NumberInductance
(μH)		DCR
(mΩ)
Max.		Isat¹
(A)		Irms²
(A)
MOX-HCSM-104-R36N0.36 ± 30%1.726.023.0
MOX-HCSM-104-R80M0.80 ± 20%3.917.015.0
MOX-HCSM-104-1R4M1.40 ± 20%4.414.013.0
MOX-HCSM-104-2R2M2.20 ± 20%8.710.09.5
MOX-HCSM-104-3R2M3.20 ± 20%10.48.08.0
MOX-HCSM-105-R36M0.36 ± 30%1.726.028.0
MOX-HCSM-105-R80M0.80 ± 20%2.518.020.0
MOX-HCSM-105-1R4M1.40 ± 20%3.214.016.0
MOX-HCSM-105-2R2M2.20 ± 20%5.810.012.0
MOX-HCSM-105-3R2M3.20 ± 20%7.29.011.0
MOX-HCSM-105-4R3M4.30 ± 20%8.58.010.0
MOX-HCSM-105-5R7M5.70 ± 20%13.27.07.6
MOX-HCSM-105-7R2M7.20 ± 20%15.56.27.0
MOX-HCSM-105-8R8M8.80 ± 20%17.25.66.0
MOX-HCSM-124-R75M0.75 ± 20%3.014.013.0
MOX-HCSM-124-1R3M1.30 ± 20%4.513.012.0
MOX-HCSM-124-2R0M2.00 ± 20%6.011.010.0
MOX-HCSM-125-R90M0.90 ± 20%2.520.018.0
MOX-HCSM-125-1R4M1.40 ± 20%3.416.015.0
MOX-HCSM-125-2R0M2.00 ± 20%4.613.012.0
MOX-HCSM-125-3R5M3.50 ± 20%6.39.011.2
MOX-HCSM-125-4R0M4.00 ± 20%7.212.010.9
MOX-HCSM-125-4R8N4.80 ± 30%10.57.29.3
MOX-HCSM-125-6R8N6.80 ± 30%11.06.07.8
MOX-HCSM-125-8R6N8.60 ± 30%12.05.47.2
MOX-HCSM-125-105N10.5 ± 30%13.54.76.5
