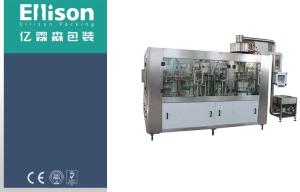

Automatic Carbonated Soft Drink Bottle Filling Machine Plastic Bottle

DCGF40-40-12 Carbonated Soft Drink Filling Bottling Machine Plastic Bottle​

General infomation

Description

1, The mono-bloc machine is integrated with rinsing, filling and capping together;

2, Bottle feeding: by air conveyor;

3, The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays water to rinse bottle in wall.

4, The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts pressure filling way;

5, The stop screwing knife holds the bottle neck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam;

Machine list

Flow Chart

1, Bottle production line

PET resin – Injection moulding machine – Bottle blow moulding machine – PET bottle

2, Water treatment system

Raw water – Pump – Silica sand filter – Active carbon filter – Water softener – reverse osmosis – UV sterilizer – Ozone machine – Pure water storage tank

3, Carbonated drink processing line

Hot water system - Syrup melting - Mixing - Filtering - CO2 Mixing - Water chiller

4, Filling and packing part

Bottle unscrambler – Air conveyor – Monoblock filling machine – Light checker – Beverage warming up - Bottle dryer – Date printer – Labeling machine – Final packing machine – Stock

Detailed photo for ref



PLS CONTACT ME IF YOU NEED ANY HELP AND ANY DOUBT. WARMLY WELCOME TO US.

CONTACT: VICKIE SUN
MOB (WHATSAPP): 0086 13584426100
SKYPE: vickiesunqiu
EMAIL: sunpiu2012@gmail.com

Suzhou Ellison Packing Machinery Co.,Ltd. which was originally set up as an factory in 2000. The company is growing up time by time in research and design, quality and production, sales and after sale service. Our machineries are sold to more than 50 countries and over cross domestic.
