ASTM A554 Stainless Steel Welded Pipe / Square Steel Tubing For Mechanical

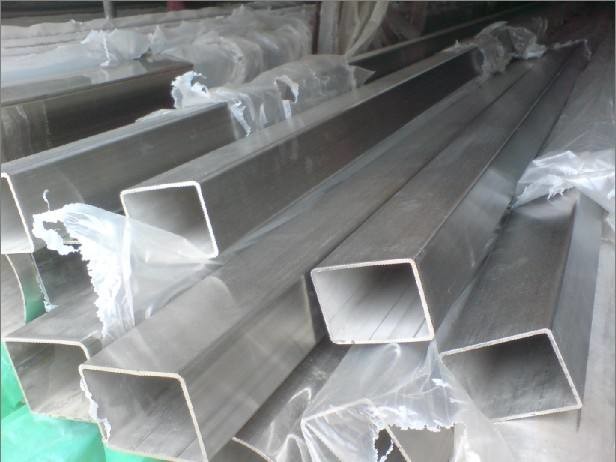

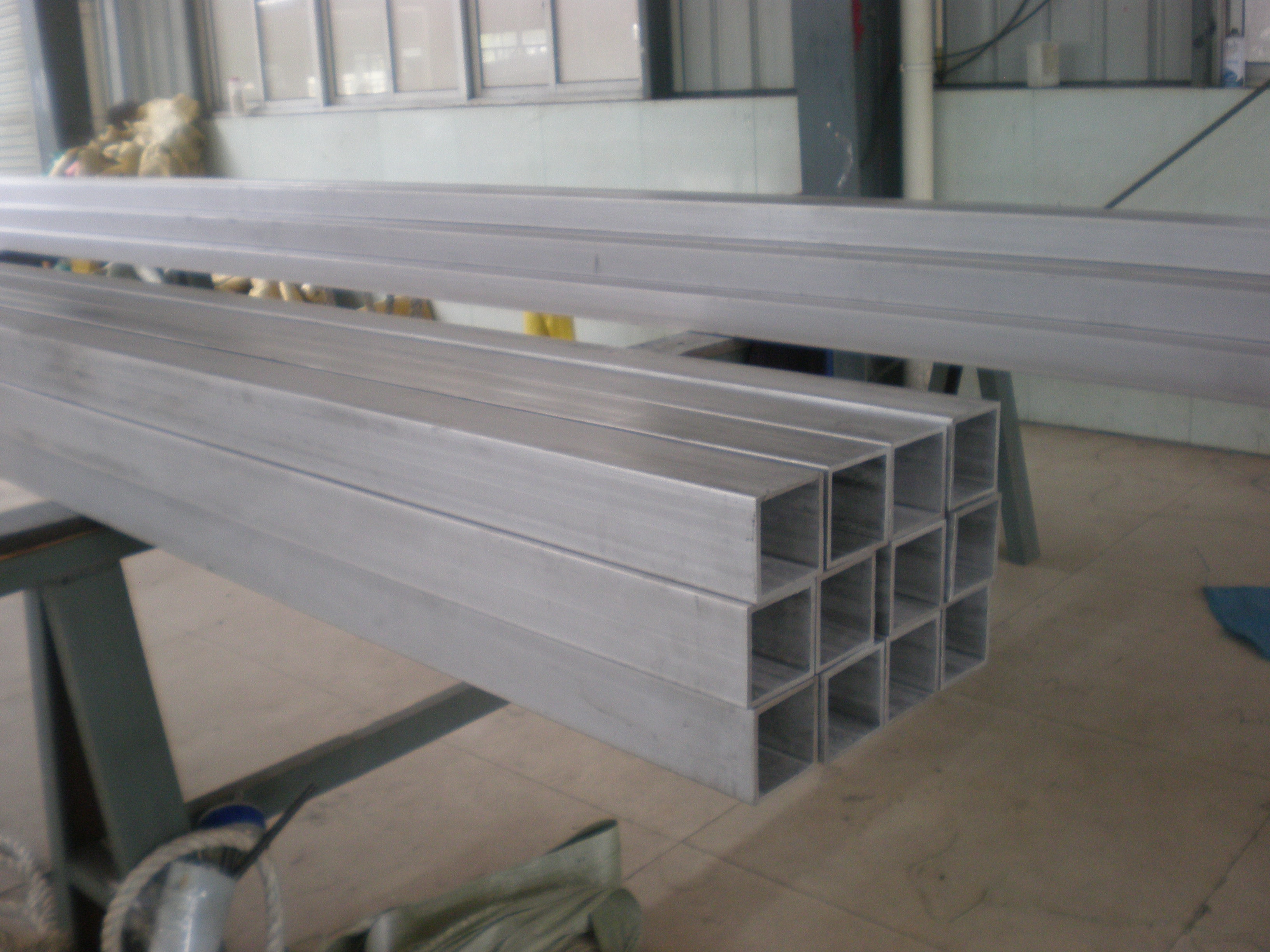

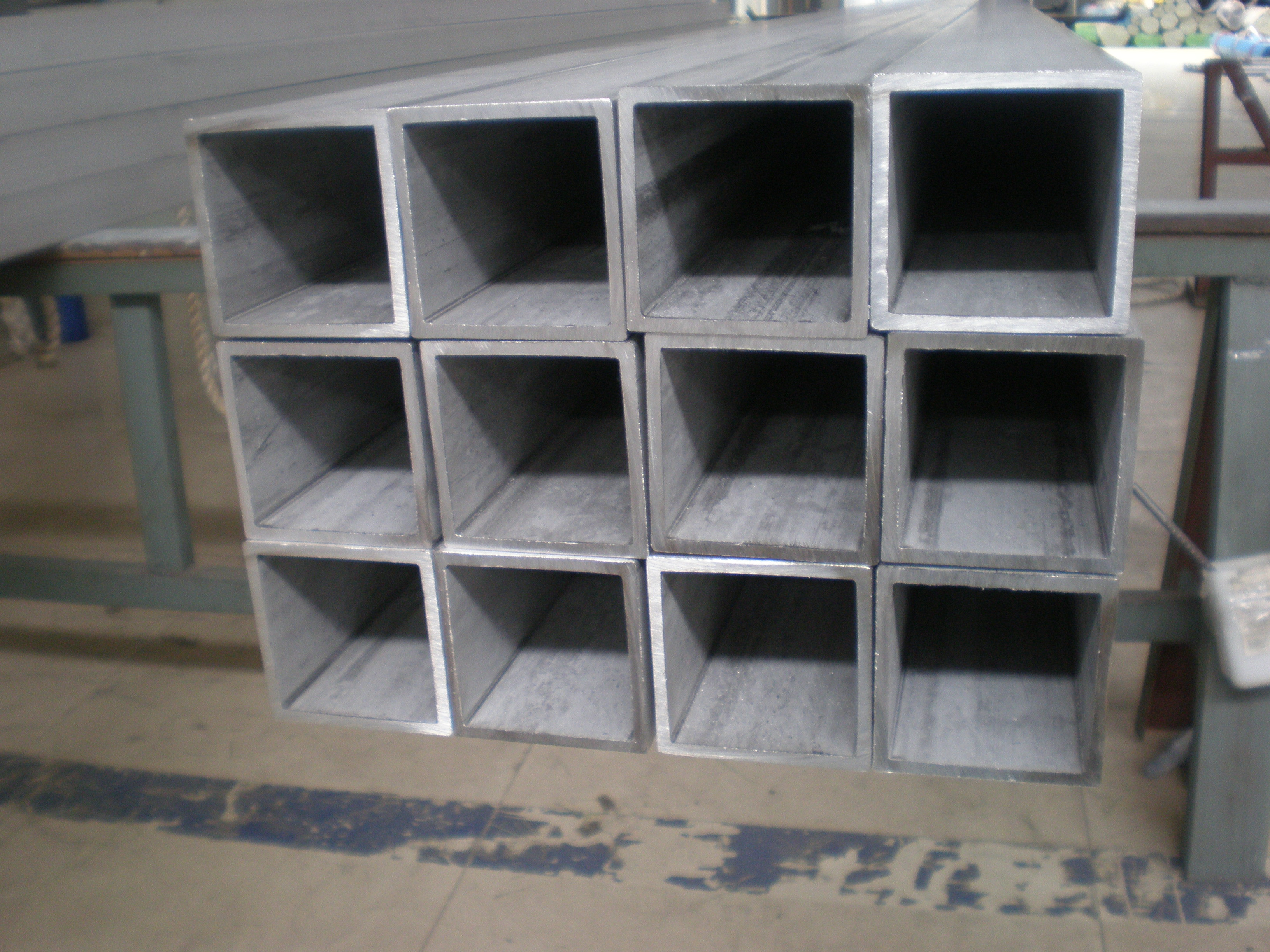

ASTM A554 Welded Stainless Square Steel Tube for Mechanical 304 316

As-welded or cold-reduced mechanical tubing.

Shapes:

Round, Square, Rectangle, or special.

Dimension:

OD ≤406.4mm

WT ≥0.51mm

Grade:

MT-301, MT-302, MT-304, MT-309S

MT-310S, MT-316, MT-316L, MT-317

MT-321, MT-347, MT-430, MT-430i

Materials and Manufacture:

The tubes are manufactured from flat-rolled steel by automatic welding process.

Delivery Condition:

1. As welded

2. Welded and annealed

3. Cold reduced

4. Cold reduced and annealed

Inside diameter bead:

a. Bead not removed

b. Bead controlled to 0.005 in. (0.13mm) or 15% of the specified wall thickness, whichever is greater

c. Bead removed

Type one: Pickling Pipe

Size: OD:0.23''-80''(5.8-2032mm)

WT:0.01''-1.125''(0.25-28mm)

ANSI/ASME size as under,

NPS:1/8''-80'' SCH:5/5s,10/10s,20/20s,40/40s,80/80s,120/120s,160/160s acc. to ANSI B36.19/36.10

other standard of size is for ready choice.

Length: according to clients' request.

Standard:JIS DIN GB BS ASTM(ASME) etc.

Surface Finish: Annealed,Polish,Brush etc.

Application:for fluid and gas transport structure and machining.

Packing:Plywood cases or bundles.

Type two: Bright Annealed Tube

Size: OD range:6-50.8mm WT range:0.71-3.68mm Length:6-24m

Standard:ASTM A249, EN 10217-7, etc

Process Method:Welded ,bright annealed.

Surface Finish:Bright Annealed(BA),pickling,bright annealed(BA)&polish

Packing:

In bundles with outside protection and seaworthy packing

Wooden box, crate, cartons, with a lifts on the bundles for easy loading and unloading

Table 1 Dimension in millimeters

Bibliography:

ISO 1127:1992 Stainless steel tubes - Dimensions, tolerances and conventional masses per unit length

ISO 2604-2:1975 Stainless products for pressure purposes - Quality requirements - Part 2: Wrought seamless tubes

ISO 2604-5:1987, Steel products for pressure purposes - Quality requirements Part 5: Longitudinally welded austenitic stainless steel tubes

ISO 4200:1991, Plain end steel tubes, welded and seamless - General tables of dimensions and masses per unit length

SUPPLEMENTARY REQUIREMENTS:

S1 Hardness Test

S2 Tension Test

S3 Nondestructive Test

S4 Test Report

Referenced Documents:

ASTM Standards:

ASTM A370 Test Methods and Definitions for Mechanical Testing of Steel Products

ASTM E30 Test Methods for Chemical Anaysis of Steel, Cast Iron, Open-Hearth Iron

and Wrought Iron

ASTM E 59 Practice for Sampling Steel and Iron for Determination of Chemical Composition

Military Standards:

MIL-STD-129 Marking for Shipment and Storage

MIL-STD-163 Steel Mill Products Preparation for Shipment and Storage

Federal Standard:

Fed. Std. No. 123 Marking for Shipments

Who We are ?

-------A professional steel pipes materials inventor, manufacturer and solution provider
Torich International Limited is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes, which holds the factories of Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Grade.
Our factory was established since 1997, with the name of TORICH INTERNATIONAL LIMITED. The factories’ technicians are of great engineering experience in steel pipe industry for more than 20 years, which are in great command of production technology for Cold Drawing and Cold Rolling. So we have strong technician team and manufacturing capability.

What products we do?

------- Invent and produce various Precision Steel Pipes

Our steel pipes cover the following ranges:
Seamless Precision Steel Pipes

Bearing Steel Tubes
Welded Precision Steel Pipes, with DOM production
Seamless Heat Exchanger Steel Pipe
Seamless Boiler Steel Pipes

Honed Tubes

Hydraulic Cylinder Steel Tubes

Hydraulic Telescopic Cylinder Tubes
Seamless Structural Steel Pipes
Seamless Mechanical Steel Pipes
Seamless Alloy Steel Tubes & Pipes
Seamless Stainless Steel tubes
Welded Stainless Steel Tubes
Seamless Stainless Steel Tubes & Pipes
Welded Stainless Steel Tubes & Pipes
Seamless Carbon Steel Tubes & Pipes
Nickel Alloy Steel Tubes & Pipes

What TORICH do:
1. Producing Steel Tubes
2. Selling both on Domestic and International Market
3. Precisely Targeting Customers’ Requirement- Sourcing the right factory for right products for Customers

Products Application:
Oil Cylinders
Air Cylinder,
Automotive Cylinder Liners
Boilers, Pressure Vessels
Shell & Heat Exchangers
Jack Lifting
Telescopic Systems
Pneumatic Cylinders
Agricultural Machineries

Size range is:
O.D. 4-350mm,
W.T. 0.5-30mm,
Length: according to customer’s requirement and agreement


Steel Grade:
Carbon Steel Grade:
ST35.8, ST37.0, ST44, ST52;
E155, E195, E215, E235, E275, E355;
195GH, P235GH, P265GH, P195TR1, P195TR2, P235TR1, P235TR2, P265TR1, P265TR2;
SAE1010, SAE1020, SAE1026, SAE1035, SAE1045;

Carbon steel tube: SA178, A179, A192, A210, SA213, SA214, etc.
Alloy Steel Grade:
T2, T5, T9, T11, T12, T17, T21, T22, T91,T92, 15Mo3,16Mo3, 13CrMo44;
SAE4130, SAE4140, 40Cr, 40Cr4, 10CrMo910, 12CrMo910, 11CrMo910,
25CrMo4, 35CrMo, 35CrMo4, 42CrMo4, 34CrMo4, 20MnV, 20MnV6,20CrMn;
Carbon steel tube: A179,A192,A210,DIN17175,etc.

Bearing Steel Grades:
GCr15 52100 suj2 suj3 100Cr6 SKF3S SKF3S 20CrNiMo 8620H 4118H;

Nickel Alloy Grade:
N02200/2201, N04400, N06600, N06601, N06625, N06852, N06219, N06690, N08800/8810/8811, N08825, N08028, N08535, N08904, N08925, N08926, N010276, N06022, etc.

Austenitic/Super Austenitic Stainless Steel Grade:
304/304L, 316/316L, 314, 321, 347H, 316Ti, 316LMod, 317L/N, 310S, 253MA, 330, 904L, S31254, XM-19, etc.

Ferrite/Martensite Stainless Steel Grade:
TP410, TP405, TP420, TP430, TP430Ti, TP403, TP409, TP444, TP439, TP446, etc.

Duplex/Super Duplex Stainless Steel Grade:
S31803, S32304, S31500, S32550, S32750, S32760, etc.
Corporate Culture:
We focus on Quality First, Quality Traceability, and Quality Stability!
We focus on Customer First, People First, and Quality-Oriented!
Success:
First factory started in 1997, in the name of Torich , now covers 50000 square meters of factory building, with more than 100employees, and over 45 million RBM assets.
In 2008, we started the company of Torich International Limited for international business and marketing.
Welcome partners from all over the world for long term cooperation!
