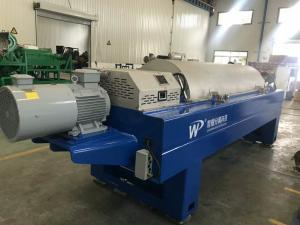

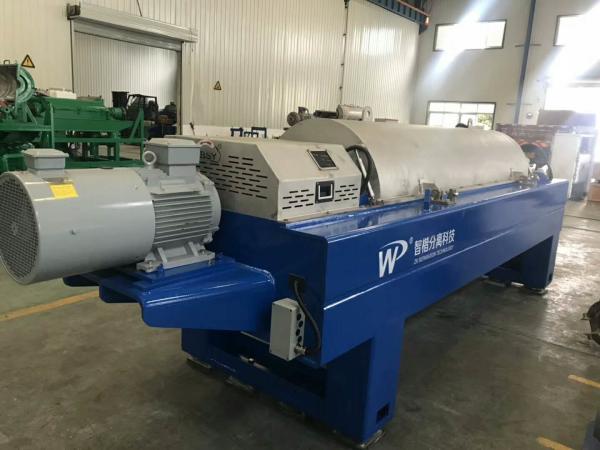

Palm Oil Sludge Three Phase Separation Horizontal Decanter Centrifuge

Palm Oil Sludge Three Phase Separation Horizontal Decanter Centrifuge


Paml oil 3 phase separation

Production Process:

1. Transport the fruit string into the first squeezing plant within 24 hours after harvesting (to prevent FFA from rising)
2. Cooking: Sterilizing at 150 ℃ 85 minutes and boiling the poles of the fruit string.
3. Fruit peeling, lifting machine--peeling machine, fruit string rod separation, string rod burning, and fruit to the warehouse.
4. Pressing: Screw press machine. The pressed cake is extruded from the machine head, which contains the nut (not cracked).
5. containing palm kernel oil), and the liquids flows out from the lower mouth.
6. Fluids into one 100m3 tank, adding water and heating (max.temp.100℃).

Be static for a period, the upper layer of crude palm oil is directly discharged and separated by disc centrifuge(separator), while the lower layer of water containing palm oil is taken into decanter centrifuge (three-phase) for separation.

6. After three-phase separated, the palm oil was returned to 100 m3 tank to be re-static to recover crude palm oil.

7. Press the palm kernel oil, process IV, the pressed cake will be discharged into the Screen separation port.

a) Processing of the crushed and extruded flesh fibers to produce fiberboard and paper.
b) The fruit core by the conveyor belt is sent to the crusher to break the core shell and separate the kernels.
c) The kernels(only about 4%) into press machine, filter and disc centrifuge(separator ), to get the crude palm oil. Usually 7 and 8 crude palm oil plants will cooperate to collect and treat it at one plant.


After separation, the photo as follow:




Models for choice: (Three Phase Separation Centrifuge )

Two phase centrifuge specification

High-Performance B type Three Phase Centrifuge Specification

Application
