Brand Name: | Donghuan |
Model Number: | 10121-10128 |
Certification: | SGS,CE & ISO |
Place of Origin: | Ningbo,Zhejiang,China |
MOQ: | 100pcs/order |
Price: | Get the update price |
Payment Terms: | L/C, T/T, D/A |
Supply Ability: | 5000pcs per month |
Delivery Time: | 15 workdays after deposit |
Packaging Details: | Packed With Export Case |
Material: | Nylon , Nylon |
Type: | Round Belt, Stringing Block |
Performance: | wear reisistance, durable, corrosion resistant,self -lubricating |
Brand: | Donghuan |
Name: | 660mm series large diameter stringing block |
Usage: | Lifting |
Port: | Ningbo or Shanghai |

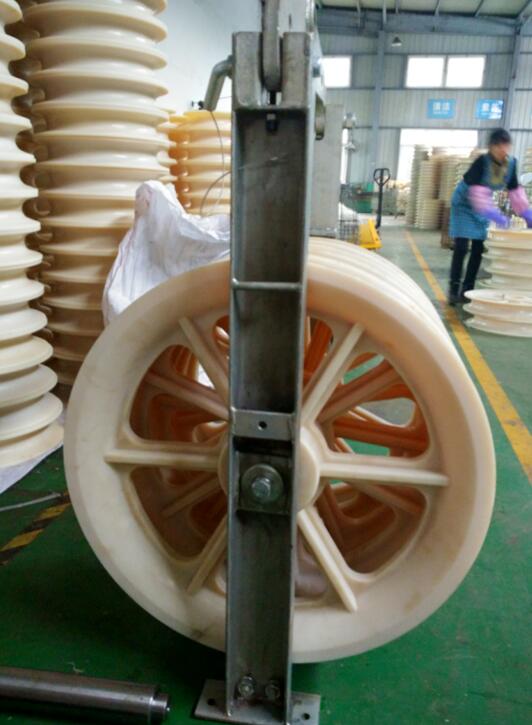

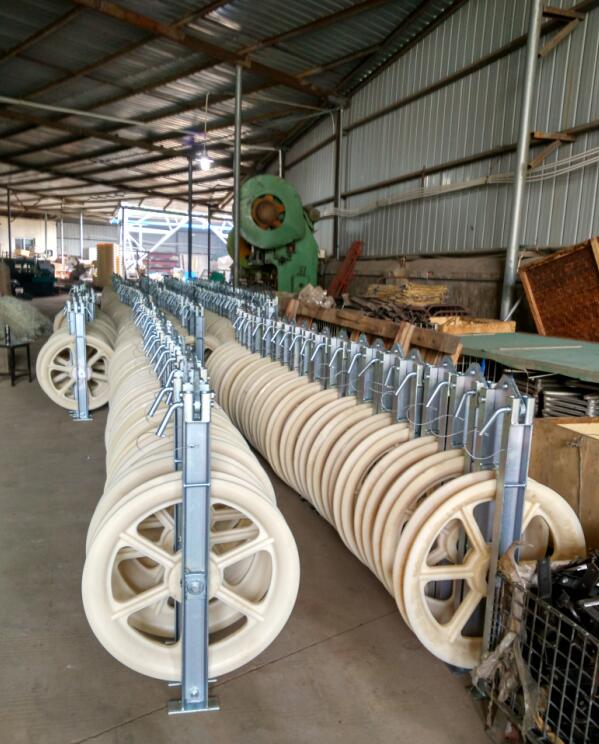

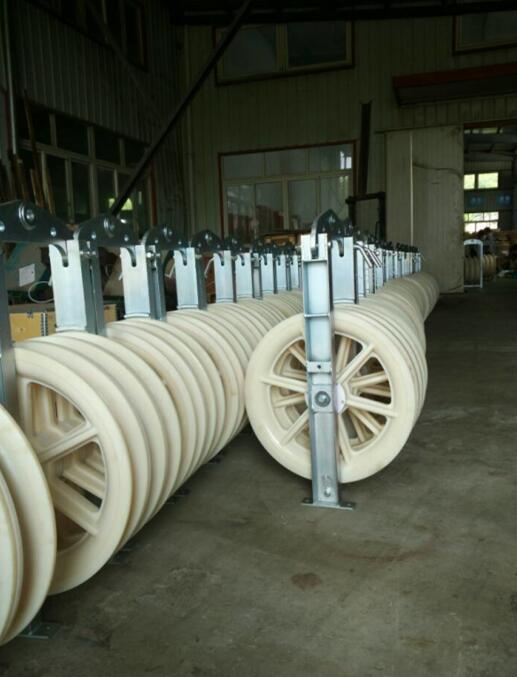

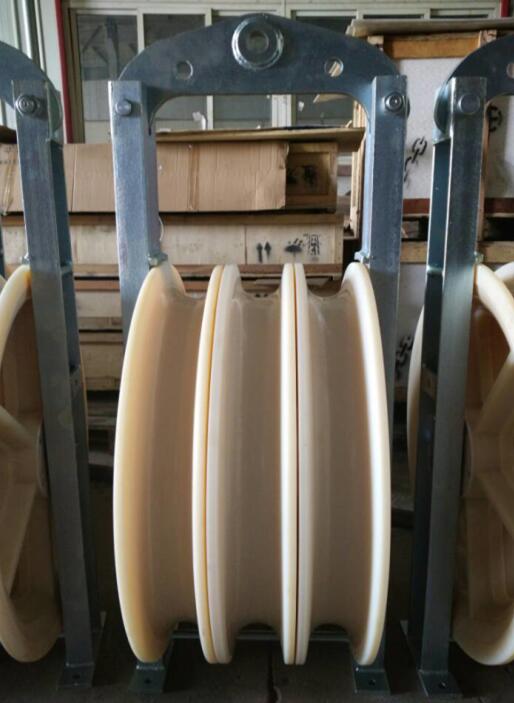

Transmission Parts Cable Pulley Block Large Diameter Stringing Block With Three Wheels
Usage:
Protect the cable and conductor from fricting when they are laying.They can save time and effort.
1.Maximum suitable conductor ACSR500
2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm)
3.Sheave dimension Φ660×Φ560×110(mm) can be customized
Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
10121 | SHD660 | 1 | 20 | 30 | Rubber lined aluminium sheave |
10122 | SHS660 | 3 | 40 | 100 | Middle : Cast steel sheave |
10123 | SHW660 | 5 | 60 | 150 | Conductor : Rubber lined aluminium sheave |
10124 | SHDN660 | 1 | 20 | 26 | MC nylon sheave |
10125 | SHSLN660 | 3 | 40 | 86 | Middle : MC nylon sheave |
10126 | SHWLN660 | 5 | 60 | 120 | Conductor : Rubber lined aluminium sheave |
10127 | SHSQN660 | 3 | 40 | 70 | MC nylon sheave |
10128 | SHWQN660 | 5 | 60 | 110 | |
10130 | SHQ660A | 7 | 75 | 190 | Middle :cast steel sheave |
Conductor : MC nylon sheave |
![]() |
