Multimode MPO MTP Patch Cord Fibre Optic Adapter OM3 OM4 OM5 Adaptor 0.3dB Durability

Categories MPO MTP Patch Cord
Brand Name: kCO, Kocent Optec Limited
Model Number: MPO-adt
Certification: ISO9001, RoHS
Place of Origin: Guangdong, China
MOQ: Negotiation
Price: Negotiable
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500,000pcs/month
Delivery Time: 3~5 working days
Packaging Details: Carton box, wooden pallet
Material: Plastic
Durability: 0.3dB
IL: 0.3dB
Wave length: 1260~1650nm
Type: MPO-MPO
Operating Temperature: -40~+70 degree
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Multimode MPO MTP Patch Cord Fibre Optic Adapter OM3 OM4 OM5 Adaptor 0.3dB Durability


MPO MTP Adapter OM3 OM4 OM5 Aqua Multimode Optical Fiber Adaptor With Flange


Descriptions:

* MPO fiber optic adapter is established by 2 adapter caps and 1 adapter body, it use to connect 2 MPO patch cord together or connector MPO patch cord with MPO pigtail together.

* Kocent Optec Limited supply single mode, multimode OM1, OM2, OM3, OM4 and OM5 of MPO adapter.

* We also supply all type of MPO, MTP patch cord with any length as customer request.

* MPO adapter is a mechanical device designed to align fiber optic connectors.

* The MPO adapter comes standard in black for plastic or metal housing for die cast.

* MTP Connector Adapter has a SC Footprint, Reduced Flange, is Aqua, and comes with 2 Dust caps.
* Adapter body is made of Polyethermide, the spring clip is made of stainless steel, and the dust cap is made of polycarbonate, all to reduce the potential for debris generation.
* It contains the interconnect sleeve, that holds the two ferrules together.

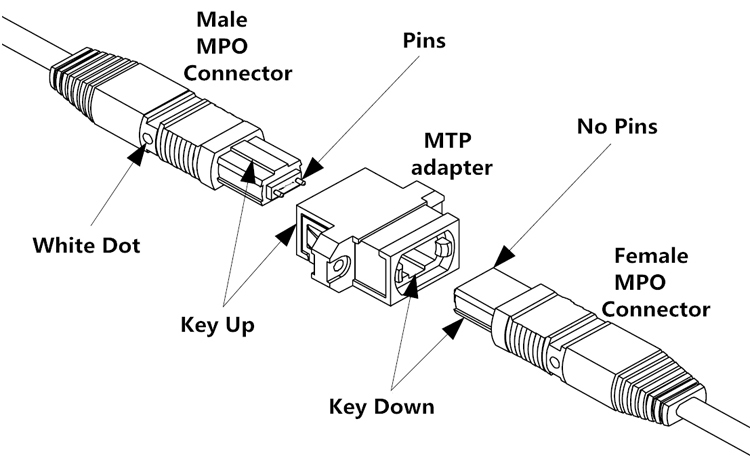

* Configured with an Opposed Key Orientation, meaning that the connectors are key-up to key-down.
* Works for any MTP Connector from 4 fiber to 72 fiber.
* Widely used in trunk cabling and casettes,
* Meets appropriate standards and is perfect for your paralell optics and MTP Adapter needs.

Product advantage:

* MTP MPO Singlemode Multifiber Adapte

* Apply for CATV, LAN, Telecom network, test equipment

* Multi Mode or Single Mode, Simplex or Duplex optional
* PC / APC available
* Simplex is available.
* Ceramic sleeve, copper, zinc alloy and plastic housing
* IL≤0.2dB, RL≥50dB (pc); RL≥60dB (apc)
* Operating temp.: -40°C~+85°C
* Standard plugging force: 2~6N
* Durability > 1000 times

Usage:



Features:


- Meet IEC 61754-7 and TIA/EIA 604-5 standards for MPO/MTP interfaces


- Internal shutter is available


- Keyway available for key-up to key-up or key up to key down

- Low insertion loss, high return loss

- High precision of mechanical dimensions

- High reliability & stability

- Ceramic or Bronze Sleeve

- PC, APC, UPC optional

- Simplex / Duplex

- Hybrid adapter Optional


Product pictures:



Specification:


ProductMTP MPO Singlemode Multimode Multifiber Adapter
TypeFC SC LC ST MPO MU MTRJ
Fibersm om1 om2 om3 om4
CoresSimplex Duplex Quad
ColorBlue Grey Aqua
With FlangeYes
Inertion Loss<0.3db
Return Loss>55db
PackageBlister or PE bags
Durability≤0.2dB (1000 times)

Environment and Mechanical


PropertiesTest conditionConformanceTest result
Vibration10-55Hz, 1.5mm, 60minIEC61300-2-1≤0.2dB
Mating Durability1000 Mating, clean every 25 mating.IEC61300-2-2≤0.2dB
Impact1.5m, 8 dropsIEC61300-2-6≤0.2dB
Strength of Coupling Mechanism40N, 10Min, L=22-28cmIEC61300-2-12≤0.2dB
Temperature Cycling40ºC to +75ºC, 40 cyclesIEC61300-2-22≤0.2dB
Temperature humidity cycling40ºC, 95%,96HrIEC61300-2-21≤0.2dB
Operating Temperature-40ºC to +85ºC≤0.2dB
Storage Temperature-40ºC to +85ºC≤0.2dB

OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.


Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
