6.7kg Weight Lifepo4 Battery Pack FT-32LFP-12.8V54AH Internal Cell Balancing

6.7kg Weight Lifepo4 Battery Pack FT-32LFP-12.8V54AH Internal Cell Balancing

6.7kg Weight Lifepo4 Battery Pack FT-32LFP-12.8V54AH Internal Cell Balancing
6.7kg Weight Lifepo4 Battery Pack FT-32LFP-12.8V54AH Internal Cell Balancing
Categories Lifepo4 Lithium Ion Battery
Brand Name: FORZATEC
Model Number: FT-32LFP-12.8V54AH
Certification: CE&ROHS
Place of Origin: CHINA
MOQ: 100
Payment Terms: L/C, T/T
Supply Ability: 10,000 PER MONTHS
Delivery Time: 15 DAYS
Packaging Details: CARTON AND PALLETS
Nominal Voltage: 12.8V
Nominal Capacity: 54Ah@0.2C
Energy: 691.2Wh
Internal Resistance: 50≤mΩ
Dimension(L*W*H*TH): 229*138*212*217mm
Weight: Approx. 6.7Kg
Contact Now
Company Info.
FORZATEC CO., LIMITED
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

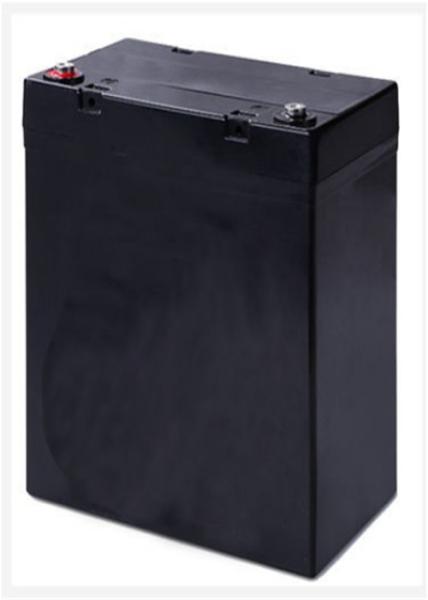

6.7kg Weight Lifepo4 Battery Pack FT-32LFP-12.8V54AH Internal Cell Balancing

FT-32LFP-12.8V54AH UPS Solar &Wind power system Golf Cart Solar Strret LED Lighting

Features

◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature

◆ Maintenance free

◆ Internal cell balancing

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set)

◆ Wider temperature range:-20℃~60℃

Application

◆ UPS

◆ Solar &Wind power system

◆ Golf Cart

◆ Electric vehicle , E-bike, E-rickshaw e.g.

◆Lighting

General Specifications


Electrical Characteristics

Nominal Voltage12.8V
Nominal Capacity54Ah@0.2C
Energy691.2Wh
Internal Resistance50≤mΩ
Cycle Life>2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
Months Self Discharge≤3.5% per month at 25℃

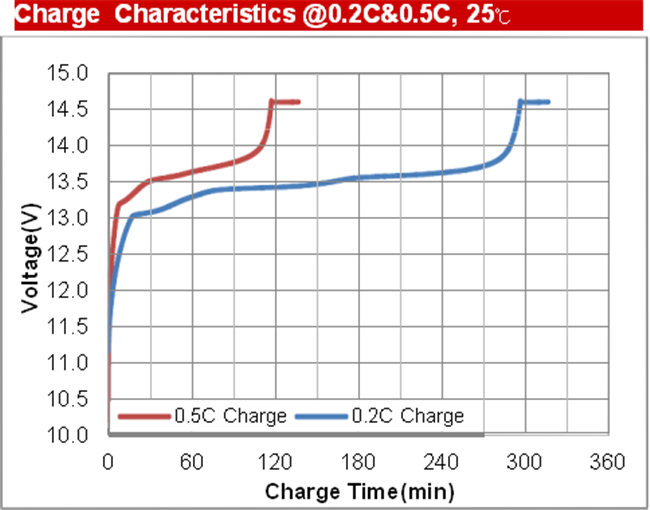

Standard Charge

Charge Voltage14.6±0.2V

Charge Mode(CC/CV)

At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A.
Charger Current10.8A
Max.Charge Current27A

Standard Discharge

Discharge Current10.8A
Max. Continuous Current54A
Max.Pulse Current120A(<3S)
Disxcharge Cut-off Voltage10.0V

Environmental

Charge Temperature0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Disxcharge Temperature-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust ResistanceIP55

Mechanical

Cell & MethodIFR32700 N60,4S9P
Plastic CaseABS
Dimension(L*W*H*TH)229*138*212*217mm
WeightApprox. 6.7Kg
TerminalM6
