| Categories | Door Lock |
|---|---|
| Brand Name: | OEM |
| Model Number: | ML107205 |
| Certification: | EN12209, EN1634-1, CE, Certifire |
| Place of Origin: | China |
| MOQ: | 1000 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 200,000 ea per month |
| Delivery Time: | 35 days |
| Packaging Details: | Bulk Pack or Color Packaging |
| Material: | Stainless Steel Forend / Strike, Latch and Deadbolt |
| Type: | Mortice Euro Cylinder Lock |
| Finish: | Satin, Polished, PVD Brass, PVD Black |
| Application: | Fire Rated Timber / Metal Door |
| Accreditation: | EN12209, EN1634-1 Tested and Certified, CE Mark, Certifire |
| Function: | Bathroom / Privacy |
| Packaging: | 1pc per individual box |
| Backset: | 50 / 55 / 60 / 65mm |
| Company Info. |
| Unity Hardware Ltd. |
| View Contact Details |
| Product List |
| Application | UNITY ML1072 Series Mortice Lock is designed for high frequency usage applications such as public access buildings where deliberate abuse likely takes place |
| Specification | 1. Modular case across functions for rapid door prepping and installation |
| 2. 72mm centers, backset in 50/55/60/65mm | |
| 3. 8mm follower with spindle gripping function | |
| 4. Reversible latchbolt in solid stainless steel | |
| 5. Single throw 20mm deadbolt with 8mm follower | |
| 6. Suitable for sprung and most un-sprung lever furniture | |
| 7. Stainless steel faceplate and strike in square and radius
version (radius version improves door prep efficiency with machine routing) | |
| 8. Compatible with bolt through furniture and escutcheons of 38mm centers |
Standards and Certification
 | Successfully type-tested for conformity to all of the requirements of EN12209: 2003 |
 | Successfully passed and exceeded 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014 |
 | CE Declaration of Conformity available upon request |
 | Meets the dimensional recommendations of BS8300 and Approved Document "M" |
 | UNITY ML1072 series locks are approved by Certifire.* Certifire No. CF5333 |
 | ALL EN/CE/Certifire tests performed independently and certified by Exova/Warrington Fire/Warrington APT. Test report/certificate are available upon request. |
* Certifire is an independent third party certification scheme that assures performance, quality and traceability of fire protection products
EN12209:2003 Clssification
| 3 | X | 8 | 1 | 0 | G | - | B | 0 | 2 | 0 |
Illustration
From outside: Handle retracts latchbolt only.Indicator shows whether deadbolt locking is enabled. |  | From inside: Handle retrachs latchbolt.Thumb-turn operates deadbolt. |

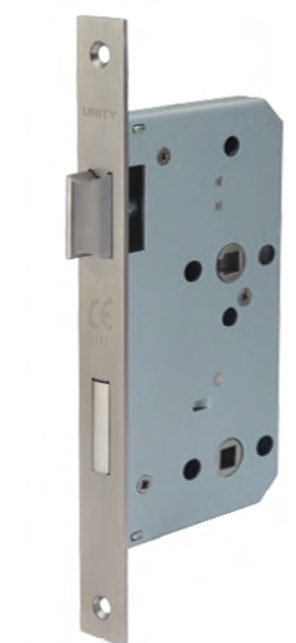

ML107205 Bathroom / Privacy |  |
50mm Backset: ML107205-50
55mm Backset: ML107205-55
60mm Backset: ML107205-60
65mm Backset: ML107205-65
|
