Categories | Lock Cylinder |
---|---|
Brand Name: | OEM |
Model Number: | ECS3030 |
Certification: | EN1303 |
Place of Origin: | China |
MOQ: | 1000 |
Price: | Negotiable |
Payment Terms: | T/T |
Supply Ability: | 200,000 ea per month |
Delivery Time: | 30 days |
Packaging Details: | Bulk Pack or Color Packaging |
Housing Material: | Brass |
Core / Key Material: | Brass |
Finish: | Satin Nickel, Brass Polished, Nickel Plated, Antique Brass |
Accreditation: | EN1301, EN1634-1 tested and certified |
Applications: | Public Building and Commercial office |
Packing: | 1pcs per box or bulk pack |
Company Info. |
Unity Hardware Ltd. |
View Contact Details |
Product List |

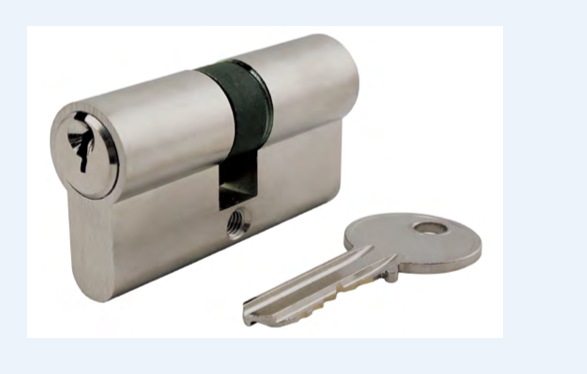

OEM Brass Mortice Lock Cylinder EN1303 Master Key EN1634 Fire Test
Application | UNITY ECS series cylinder is manageable euro cylinder with |
Specification | 1. Standard euro profile dimension according to DIN18252 |
2. Solid brass body and keys | |
3. 5 or 6 pins constructions | |

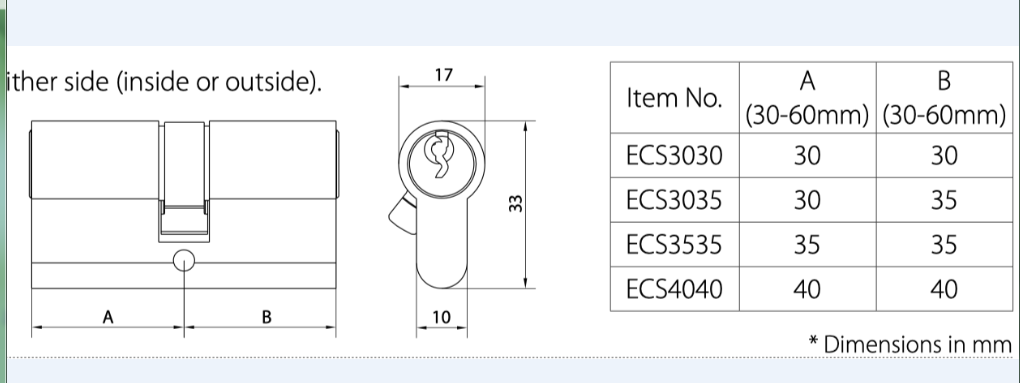

4. Various lengths available for different door thickness | |
5. Symmetrical and asymmetrical variants available to work | |
6. Optional anti-drill pins and anti-pick pins | |
7. Enhanced attack resistance provided by UNITY security | |

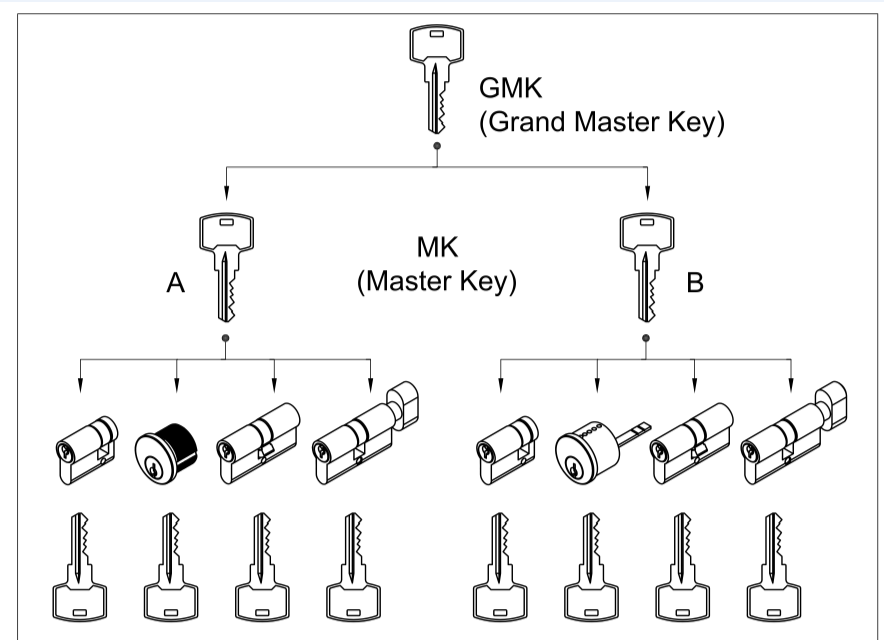

8. Master keying service or keyed alike service available upon request |
Standards and Certification
![]() | Successfully type-tested for conformity to all of the requirements of EN1303:2005 |
![]() | Successfully passed 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014 |
![]() | ALL tests performed independently and certified by Exova/Warrington
Fire/Warrington APT. Test report/certificate are available upon
request. |
EN1303:2005 Clssification
1 | 6 | 0 | 1 | 0 | C | 5 | 2 |
![]() |
