| Categories | Stainless Steel Globe Valve |
|---|---|
| Brand Name: | SUFA |
| Model Number: | J41H |
| Certification: | (DNV)ISO9001,(DNV)ISO14001,CE0035 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD 50~500/set |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 500 set/month |
| Delivery Time: | within 8-12 working days upon receipt of payment |
| Packaging Details: | Wooden box, ply-wood box, carton box, pallet |
| SIZE: | DN10-DN200 |
| PRSSURE: | PN1.6～16MPa |
| TEMPERATURE: | -29～570℃ |
| Material of Body: | WCB |
| Applicable media :: | water, oil, steam and other non-corrosive media |
| Name: | DN40 Cryogenic Valve Stainless Steel Short Stem Cryogenic Globe Valve |
| Company Info. |
| Suzhou Ephood Automation Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

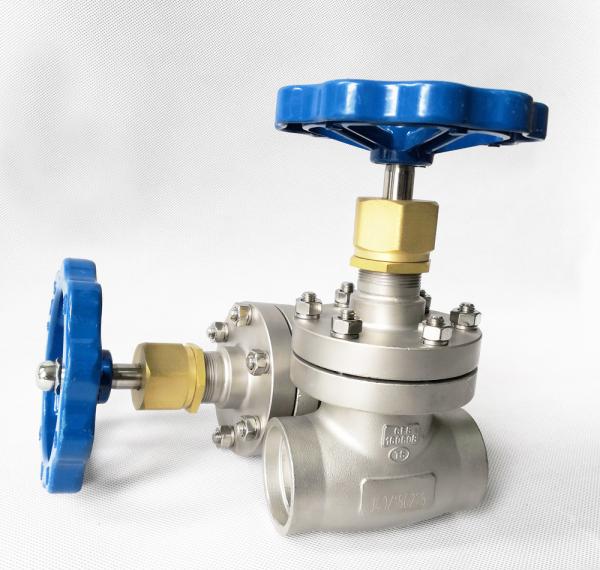

DN40 Cryogenic Valve Stainless Steel Short Stem Cryogenic Globe Valve

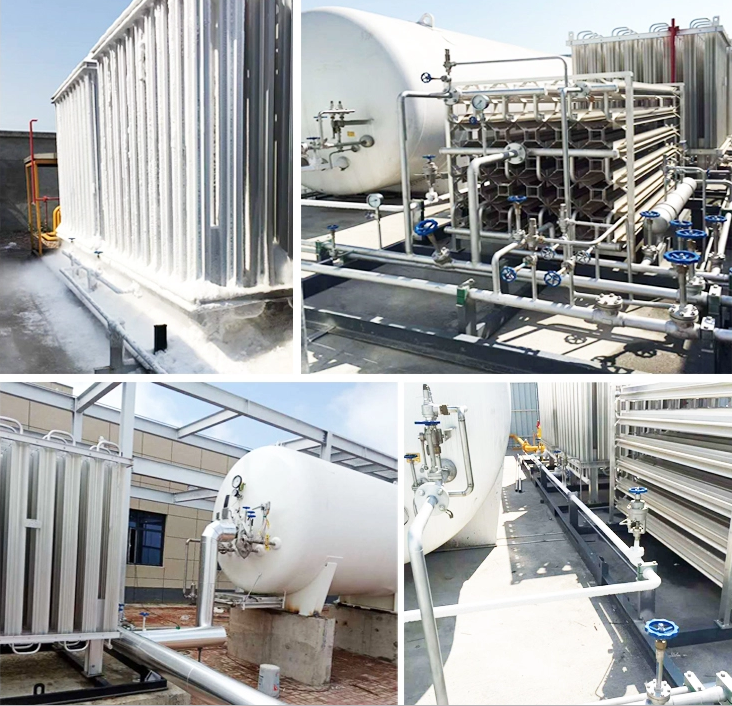

Cryogenic valves are widely used in cryogenic liquid storage and transportation, air separation, oil and gas, food and beverage carbonation, pharmaceuticals, petroleum, chemical,metallurgical,water treatment,aerospace and other industries,such as cryogenic liquid storage tank,tank truck,gasifier,gasification station,air dispersion equipment,air separation plants, petrochemical tail gas separation equipment,pressure swing adsorption oxygen generator,cold boxes,etc.
Product Description
| Valve Type: | Globe Valve |
| Operated Type: | Handwheel |
| Connection Type: | Welding |
| Nominal Diameter: | DN10~40mm |
| Nominal Pressure: | PN4.0MPa |
| Material: | Valve Body:ZGOCr18Ni9 |
| Valve Bonnet:OCr18Ni9 | |
| Valve Stem:OCr18Ni9 | |
| Stuffing:PTFE | |
| Disc seal ring:PCTFE | |
| Suitable Medium: | LNG |
| Suitable Temparature: | (-80℃~+80℃) |
| Design and Manufacture: | Conform to GB/T24925-2010 |
| Testing: | Conform to GB/T13927-2008 |
| Valve Lifetime: | Specified according to usage frequency and installation location |
| Lead Time: | Customized valves are usually 45~60 days; Stock valves are usually within 5 days. |

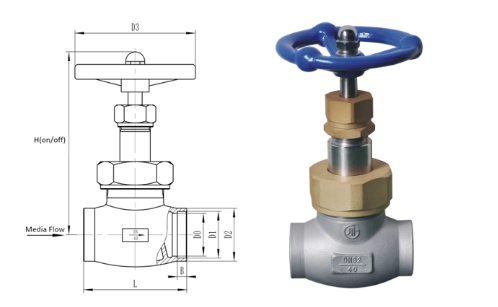

| Product Code | DN | H(on) | H(off) | L | L1 | D1 | D2 | D3 |
| C325DJ10 | 10 | 134 | 124 | 61 | 61 | 12 | 15 | 22 |
| C325DJ15 | 15 | 134 | 124 | 61 | 61 | 15 | 18.5 | 26 |
| C325DJ20 | 20 | 176 | 163 | 81 | 81 | 23 | 26 | 32 |
| C325DJ25 | 25 | 176 | 163 | 81 | 81 | 26 | 32 | 39 |
| C325DJ32 | 32 | 232 | 217 | 102 | 102 | 35 | 39 | 46 |
| C325DJ40 | 40 | 232 | 217 | 102 | 102 | 42 | 46 | 52 |
| C325DJ50 | 50 | 230 | 209 | 127 | 127 | 54 | 58 | 66 |
| C325DJ65 | 65 | 252 | 232 | 150 | 150 | 68 | 71 | 85 |
| C325DJ80 | 80 | 310 | 281 | 182 | 182 | 84 | 89 | 100 |
| C325DJ100 | 100 | 358 | 325 | 325 | 325 | 104 | 109 | 121 |
|
