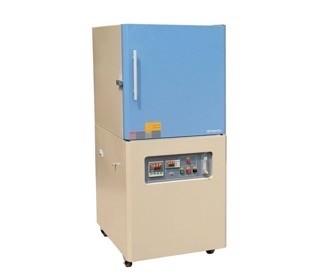

Wafer Annealing Scientific Lab Equipment 1800°C High Temperature Furnaces

Product introduction: jlx-1700 aerobic annealing furnace is mainly used in the laboratory of institutions of higher learning, scientific research institutes, etc., providing 1700 ° C high temperature test environment, applied in semiconductors such as silicon carbide (SiC); silicon wafers(Si), gallium arsenide (GaAs ), GaN, sapphire(Al2O3), aerospace, microelectronics, nanotechnology and other new materials.

Product description:

The JLX series muffle furnace is developed for the daily application of factories and laboratories. The excellent roasting effect, modern exterior design and high reliability are the outstanding features of this type of electric furnace. The product uses high-quality silicon carbon rod as heating element, and the furnace adopts imported alumina polycrystalline fiber material. Microcomputer control, easy to operate, programmable, automatic heating, automatic insulation, automatic cooling.

Features:

1. The furnace adopts Japan's energy-saving technology, which saves 30% compared with the traditional electric furnace;

2. The heating element is high-quality molybdenum disilicide, with large surface load and long service life;

3, sturdy and durable vacuum reinforced fiber module, double-layer furnace shell structure is stable, with air cooling layer, equipped with cooling fan;

4. There is a smoke exhaust passage at the top to facilitate the discharge of impurities and corrosive gases without affecting the service life of the equipment;

5, the heating rate is fast up to 30 ° C / min, can also accurately control 0.5 ° C / min

6, the button mechanical life is not less than 200,000 times (1200 times / hour)

7, using multi-stage program temperature control, programmable, automatic temperature rise, insulation, digital display ammeter;

8. Optional paperless recorder to record, store and display current or historical temperature curves, or transfer them to a computer via a USB flash drive.

9. Optional Xinite intelligent temperature control software for full monitoring and operation through the computer
