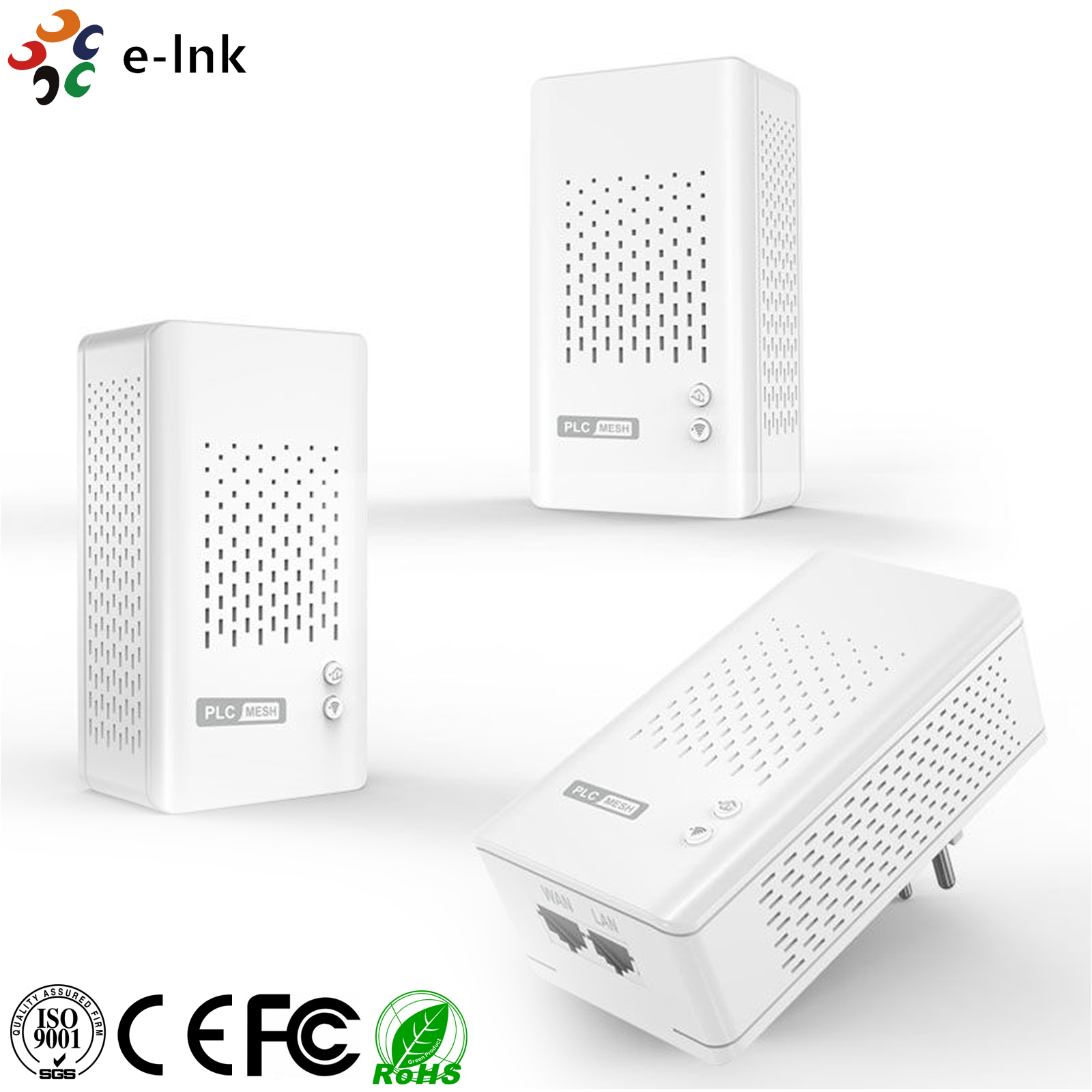

1200Mbps Wireless 2 Port Powerline Adapter with 300 meter range
Overview

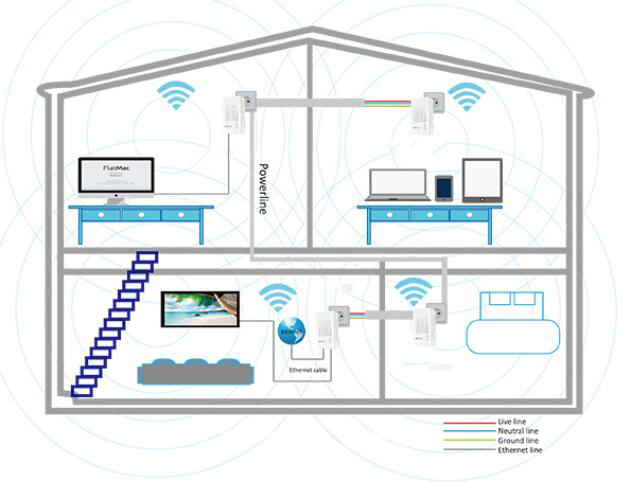

LNK-P1200W series wireless power adapter has powerline communication and wireless router functions. It is an ideal choice for small and medium enterprises, hotel, family villas, and residential network ideal choice.
Features
Technical Indexes
Model | LNK-P1200W |
Interface | 2 * Ethernet RJ45 4 * High Gain Antenna (Integrated) |
Protocol Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.11 a, b, g, n, ac(2.4 / 5 GHz concurrent) , IEEE 802.3az, IEEE 802.1p Auto MDI/X Wi-Fi Alliance HomePlug AV |
Transmission Rates | Wi-Fi 867 Mbps (2x2 MIMO/ 5.8 GHz), Wi-Fi 300 Mbps (2x2 MIMO/ 2.4 GHz) Ethernet 2*10/100/1000 Mbps Powerline 1200Mbps |
Modulation Type | Powerline OFDM - 4096/1024/256/64-QAM, QPSK, BPSK Wi-Fi DSSS (IEEE 802.11b) • Wi-Fi OFDM (IEEE 802.11a, g, n, ac) • Wi-Fi 32 |
LED Display Light | PLC light (Multi) Wi-Fi light (Multi) |
Transmission Band | 2MHz–68MHz |
Max. Supported Clients | 2.4GHz wireless up to 50 5.8GHz wireless up to 50 |
Security | WPA/WPA2 WPS PIN, WPS PBC Wi-Fi Time Schedule 128 Bit AES |
Range | Powerline up to 500M Wi-Fi up to 300M |
Button | PLC (Default Reset) Wi-Fi (WPS / Default Reset) |
Power consumption | Maximum W/A: 12W ; Typical W/A: 9W ; Stand-By W/A: 3W |
Operating Voltage Range | AC 100V-240V 50/60Hz |
operating environment | Working temperature: -10 ℃ to 40 ℃; Save temperature: - 40 ℃ -- 70 ℃; Working humidity: 10%-90% non-condensing state; Storage humidity: 5%-95% non-condensing state |
Size | 70mm×43mm×126mm(L×W×H) |
Weight | 0.35kg |
![]() |
