Marine Stainless Steel Screws , Stainless Steel Flange Bolts Metric Hex Drive

Categories Stainless Steel Screws
Brand Name: CY
Model Number: M3-M16
Certification: IS09001
Place of Origin: CHINA
MOQ: Negotiation
Payment Terms: T/T, L/C
Supply Ability: 200Ton /month
Delivery Time: 30DAYS AFTER ORDER CONFIRMED
Packaging Details: 1000PCS/BOX , BULK PACKING
Price: Negotiation
Size: 25mm Stainless Steel Screws,30mm Stainless Steel Screws
Thread: Mechanical thread,full threaded machine thread
Standard: DIN,JIS , GB ANSI
Surface treatment: Plain Polish
Head: Round head
Drive type: hex socket
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

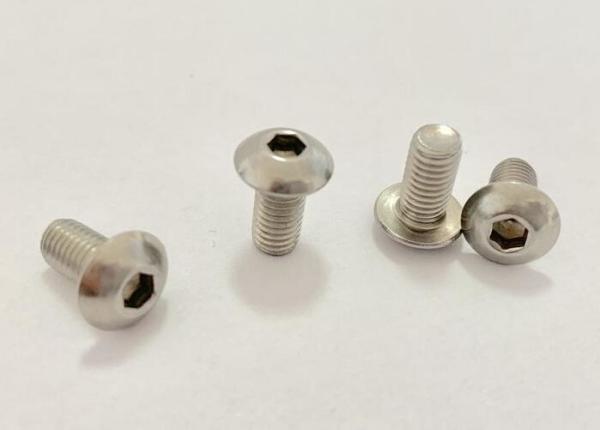

Marine Stainless Steel Screws , Stainless Steel Flange Bolts Metric Hex Drive

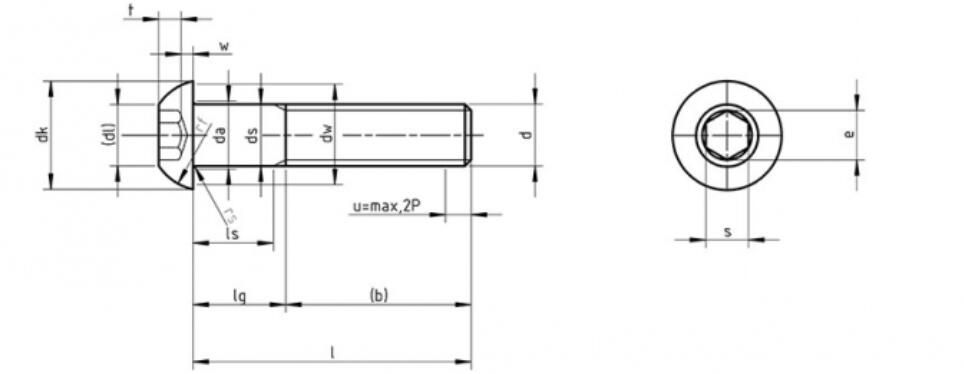

Grade A2 - 70 Hexagon Socket Button Head Cap Screw With Flange Hex Drive ISO 7380


Hexagon socket button head cap screws are made of two kinds, both are commonly used materials, stainless steel and carbon steel, carbon steel, we generally refer to iron, carbon steel hardness by grade points, low carbon steel, carbon steel, high carbon steel three. So hex flat head screws of strength class 4.8, 8.8, 10.9, 12.9 of these categories.stainless steel is generally divided into SS304 SS316 A2 A4. Stainless steel has strong corrosion resistance. Mechanical properties of stainless steel screws stronger than steel screws.


Application :

household appliances, interior decoration, sanitary installation, elevator decoration.


Thread dM3M4M5M6M8M10M12M16
P0,50,70,811,251,51,752
bref.1820222428323644
cmax.0,70,811,21,522,42,8
min.0,550,650,811,251,72,12,5
damax.3,64,75,76,89,211,213,717,7
dcmax.6,99,411,813,617,821,92634
min.6,328,8211,112,917,121,0625,1633
dkmax.5,27,28,81013,216,519,426
min.4,96,88,49,612,816,118,925,5
dLref.2,63,8567,7101216
dsmax.34568101216
min.2,863,824,825,827,789,7811,7315,73
dwmin.5,748,2410,412,216,420,2224,3232
emin.2,3032,8733,4434,5835,7236,8639,14911,429
kmax.1,652,22,753,34,45,56,68,8
min.1,41,952,534,15,26,248,44
r1max.3,74,65,756,157,959,811,215,3
min.3,34,25,255,657,459,210,514,5
rsmin.0,10,20,20,250,40,40,60,6
rtmin.0,30,40,450,50,70,71,11,1
snom.22,53456810
max.2,082,583,084,0955,146,148,17510,175
min.2,022,523,024,025,026,028,02510,025
tmin.1,041,31,562,082,63,124,165,2
wmin.0,20,30,380,741,051,451,632,25


Question & Answer


1. Payment : T/T (30% T/T in advance and balance 70% against copy of B/L)

L/C at sight


2. Lead Time : If have stock , can be packing and ship within 10-15 days ,

If not have stock , usually take 25-30 days to produce one container order .


3. Free Sample : For standard item , we can supply the samples free . courier cost by the buyer.

For nonstandard item , we will quote the mould charge ineed, but the mould charge can be return if bulk order released .


4. OEM : We Can produce the drawing according to your drawing or samples , also can packing the products as customer's request with LOGO and company information on it


5. How to place a order :

Send inquiry -------quotation --------Confirm order (price ,lead time , technical detail with drawing and payment ) ---------pay deposit -------Start to produce after got deposit ---------sample approve (if need) ------------ass produce -----send picture of packing for confirm------arrange shippment ---------send copy of B/L -------------Pay balance payment ----------send the documents for clearance ----------feedback


6. Anyother question , welcome to contact us anytime .
