1A-6A Two-Stage Single Phase EMC Filter Wire Output Power Line Filter

High Quality Two-Stage Single Phase EMI Filter Wire Output Power Line Filter

YB22D1-6A-W EMI Filter:

YB22D2-6A-W is the Dual-Stage Single Phase Filter. According to different equipment to choose the appropriate output mode, its connection mode can be selected fast-on terminal, M4 screw, electronic wire. The maximum rated current up to 50 amps. Designed with both common mode and differential mode performing high noise suppression.

Filter Selection Table:

Part No.	Case	Rated Currents (A)	Output Connections
YB22D1-6A	D1	6	Fast-on terminal
YB22D1-10A	D1	10	Fast-on terminal
YB22D1-15A	D1	15	Wire
YB22D1-20A	D1	20	Wire
YB22D1-30A	D1	30	M4 Screw
YB22D1-40A	D1	40	M4 Screw

*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

Naming Rule:

YB	22	D1	-	6A	-	W
∣	∣	∣		∣		∣
Our brand	Circuit	Dimension		Current		Output Connection
	22:22 circuit	D1		6A :6 amp		Q:fast-on tab 250
				10A :10 amp		W:wire
				20A :20 amp		S:M4 screw

Features Of Single Phase Filter:

-- The rated current can be offered from 1 to 50 amps.
-- Various output selections such as M4 screw terminal wire and terminal block.

-- YB22 have designed two-stage filtering, with good differential and common-mode attenuation.

-- There are a variety of parts and combinations to meet different customer's EMC tests.

EMI Filter Application:

1. Electrical and electronic equipment

2. Medical equipment

3. Datacom equipment

4. Office automation equipment

Technical Specification:

Item	Single Phase Filter	Rated Current	1~10A
Model	YB22D1-6A-W	Environmental Temperature	40°C
Transfer Function	Low Pass	Temperature Range	25 / 085 / 21
Package Type	Surface Mount	Operating Frequency	50/60HZ
Nominal Center Frequency	150K-30MHZ	Line to Line	1450VDC

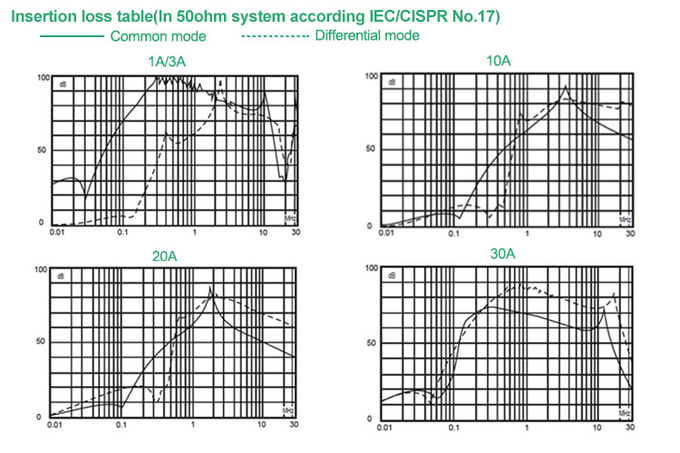

Insertion Loss	60~90dB	Line to Ground	2250VDC
Input Impedance	50Ω	Maximum Leakage Current	250VAC/60HZ 0.8mA Max
Rated Voltage	115V/250V	MOQ	100pcs

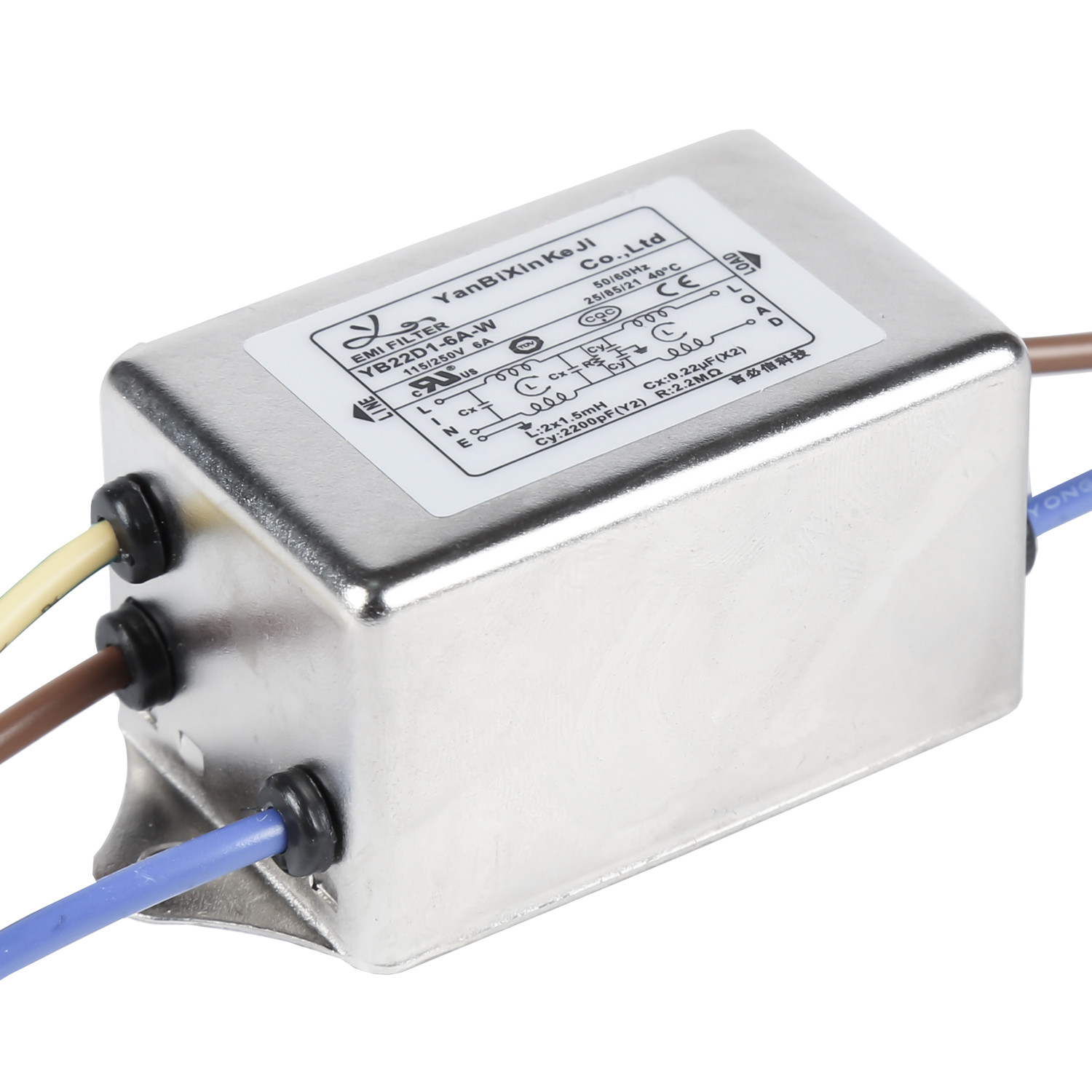

YB22D1-6A-W EMI Filter Picture:

Tabulates:

Model No.

Rated Current
@40°C

Terminal Options*

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB22E4-1A

1A~4A

<0.8mA

Fig.1

115/250V

50/60Hz

YB22E4-6A

Fig.1

YB22E4-8A

Fig.1

YB22E4-10A

10A

Fig.1

YB22E4-15A

15A

Fig.1

YB22D1-1A

1A~4A

Fig.1

YB22D1-6A

Fig.1

YB22D2-6A

Fig.1

YB22D2-8A

Fig.1

YB22D2-10A

10A

Fig.1

YB22D2-15A

15A

Fig.1

YB22D3-8A

Fig.1

YB22D3-10A

10A

Fig.1

YB22D3-15A

15A

Fig.1

YB22D4-10A

10A

Fig.1

YB22D4-15A

15A

Fig.1

YB22D4-20A

20A

Fig.1

YB22D5-15A

15A

Fig.1

YB22D5-20A

20A

Fig.1

YB22D5-30A

30A

Fig.1

YB22D6-20A

20A

Fig.1

YB22D6-30A

30A

Fig.1

YB22F1-20A

20A

Fig.1

YB22F1-30A

30A

Fig.1

YB22F2-30A

30A

Fig.1

YB22F2-40A

40A

Fig.1

YB22F2-50A

50A

Fig.1

YB22F3-50A

50A

Fig.1

Medical Type Tabulates:

Model No.

Rated Current
@40°C

Terminal Options

Medical equipment

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB22E4-1A-x(5)

1A~4A

<5μA

Fig.2

115/250V

50/60Hz

YB22E4-6A-x(5)

Fig.2

YB22E4-8A-x(5)

Fig.2

YB22E4-10A-x(5)

10A

Fig.2

YB22E4-15A-x(5)

15A

Fig.2

YB22D1-1A-x(5)

1A~4A

Fig.2

YB22D1-6A-x(5)

Fig.2

YB22D2-6A-x(5)

Fig.2

YB22D2-8A-x(5)

Fig.2

YB22D2-10A-x(5)

10A

Fig.2

YB22D2-15A-x(5)

15A

Fig.2

YB22D3-8A-x(5)

Fig.2

YB22D3-10A-x(5)

10A

Fig.2

YB22D3-15A-x(5)

15A

Fig.2

YB22D4-10A-x(5)

10A

Fig.2

YB22D4-15A-x(5)

15A

Fig.2

YB22D4-20A-x(5)

20A

Fig.2

YB22D5-15A-x(5)

15A

Fig.2

YB22D5-20A-x(5)

20A

Fig.2

YB22D5-30A-x(5)

30A

Fig.2

YB22D6-20A-x(5)

20A

Fig.2

YB22F1-20A-x(5)

20A

Fig.2

YB22F1-30A-x(5)

30A

Fig.2

YB22F2-30A-x(5)

30A

Fig.2

YB22F2-40A-x(5)

40A

Fig.2

YB22F2-50A-x(5)

50A

Fig.2

YB22F3-50A-x(5)

50A

Fig.2

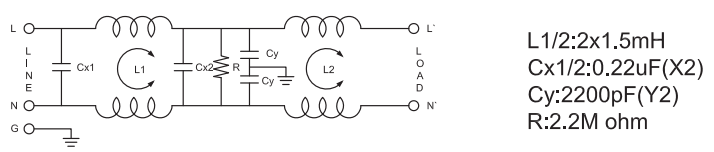

YB22D1 Electrical Schematic:

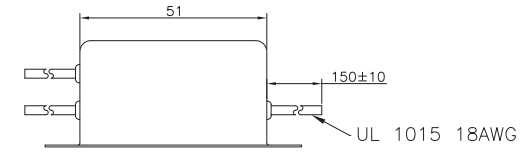

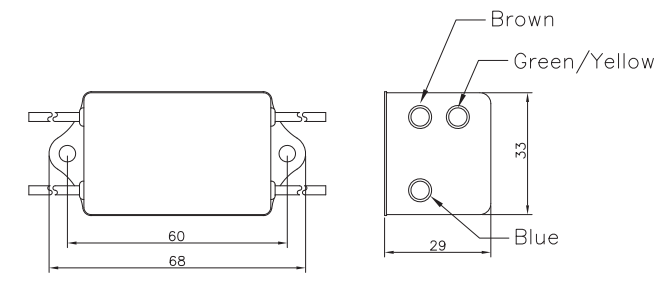

Mechanical Dimension(Unit: mm)

Our Certificates:

Product Tags:

emc line filter

active emi filter

1A-6A Two-Stage Single Phase EMC Filter Wire Output Power Line Filter

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen Yanbixin Technology Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	EMI EMC Filter
Brand Name:	YBX
Model Number:	YB22D1-6A-W
Certification:	cUL, TUV, CQC, CE, ROHS
Place of Origin:	China
MOQ:	50pcs
Price:	Negotiable
Payment Terms:	T/T, L/C
Supply Ability:	10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
Delivery Time:	20-25 days
Packaging Details:	56.528.522.5cm
Item:	EMC Filter
Current:	1A-10A
Voltage:	220VAC
Frequency:	50/60HZ
Packaging:	Carton
MOQ:	50pcs

Country & Test Authority		Recognized Mark	Test Standard	Certificate Number
China	CQC		GB/T15287-1994 GB/T15288-1994	CQC14001106207 CQC14001104850 CQC14001104342
American	UL		UI1283 UI939	E471748
Canada	cUL		CAS C22.2NO.8	E471748
EU	TUV		IEC/EC60939	B141289931001
EU	CE		En60950	AT SZAIS180620005
