| Categories | EMI Power Filter |
|---|---|
| Brand Name: | YBX |
| Model Number: | YB11B2-10A-Q |
| Certification: | cUL, TUV, CQC, CE, ROHS |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500000 Piece/Pieces per Month |
| Delivery Time: | 15-25 days |
| Packaging Details: | 56.5*28.5*22.5cm(one box) |
| Product: | YB11B2-10A-Q |
| Voltage: | 115V/250V |
| Current: | 1A 3A 6A 8A 10A |
| Environmental Temperature: | 40°C |
| Port: | SHENZHEN |
| Line to Line: | 1450VDC |
| Line to Ground: | 2000VAC |
| Approval: | ISO9001:2008 cUL TUV CQC CE ROHS |
| Company Info. |
| Shenzhen Yanbixin Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

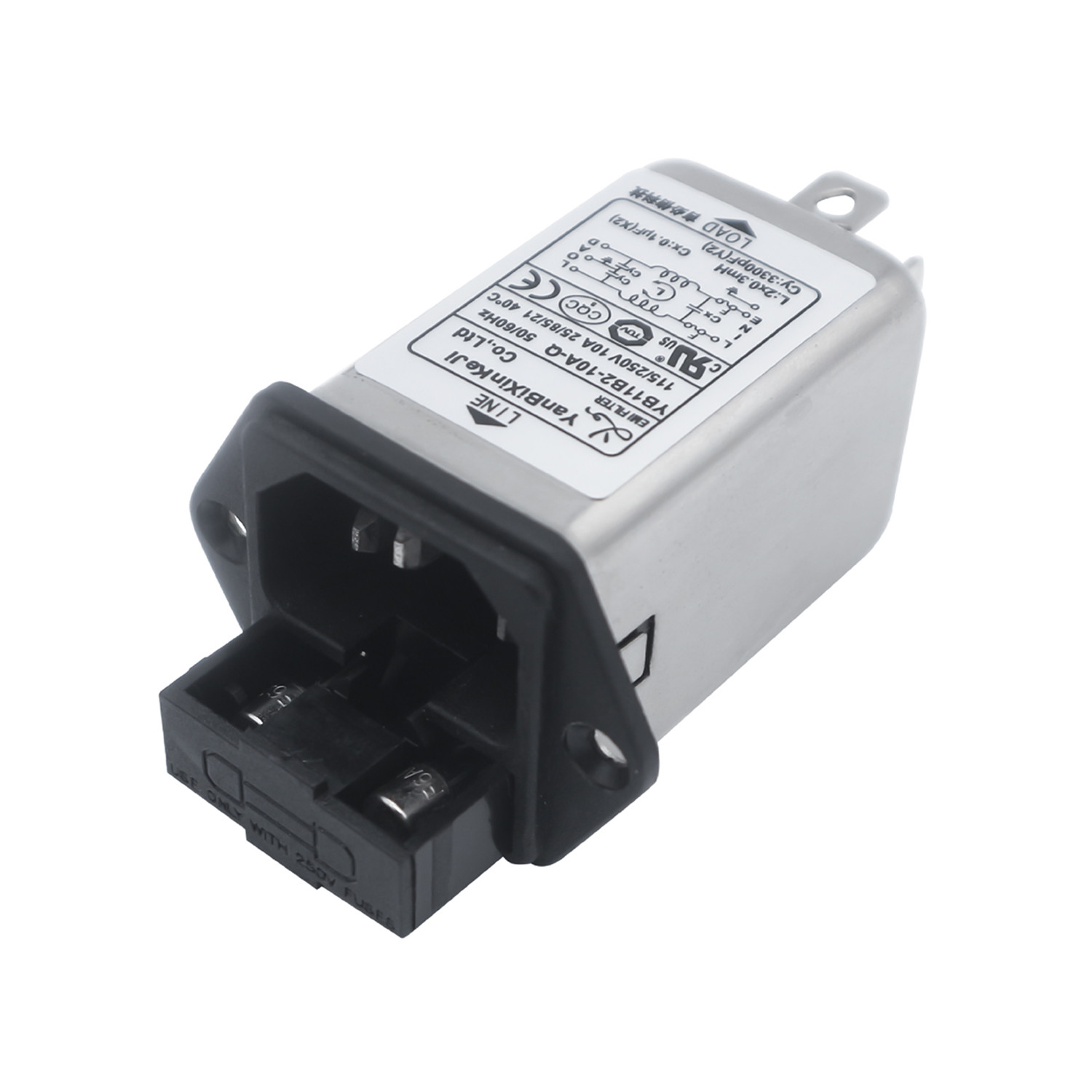

6A 220V Medical Appliance IEC Inlte Filter With Fuse
Technical Specification:
| Item | IEC Inlet Filter With Fuse |
| Model | Emi Power Filter YB-B |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 125VAC 250VAC |
| Rated Current | 1A 3A 6A 10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.2mA Max |
| MOQ | 500pcs |
| Price | USD1~5/Meter |
| Lead Time | 5~15 weekday |
Features:
-- Versions to 10A are available with fuse holder for one or two (5*20mm) fuses
-- (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing
-- There are a variety of parts and combinations to meet different customer's EMC tests
-- Customized products according to customer's requirements
Typical Applications:
-- Portable electrical and electronic equipment;
-- Medical equipment;
-- Test and measurement equipment;
-- Small and medium-sized machines and household equipment
Rule of Nomination:
YB-----11---------B1--------10A---------Q-------------( R 5 G )
¦ ¦ ¦ ¦ ¦ ¦ ¦
circuit case current connection optional
Tabulates:
| Model No. | Rated Current @40°C | Terminal Options* | Bleeder resistor(optional) | G | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) | |||||||||||||||||||||||||||||||||||||
| YB11B1-1A | 1A | Q | S | - | - | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz | |||||||||||||||||||||||||||||||||||
| YB11B1-2A | 2A | Q | S | - | - | - | Fig.1 | ||||||||||||||||||||||||||||||||||||||
| YB11B1-3A | 3A | Q | S | - | - | - | Fig.1 | ||||||||||||||||||||||||||||||||||||||
| YB11B1-4A | 4A | Q | S | - | - | - | Fig.1 | ||||||||||||||||||||||||||||||||||||||
| YB11B1-6A | 6A | Q | S | - | - | - | Fig.1 | ||||||||||||||||||||||||||||||||||||||
| YB11B1-8A | 8A | Q | S | - | - | - | Fig.1 | ||||||||||||||||||||||||||||||||||||||
| YB11B1-10A | 10A | Q | S | - | - | - | Fig.1 | ||||||||||||||||||||||||||||||||||||||
| YB11B2-1A | 1A | Q | S | - | - | - | Fig.1 | ||||||||||||||||||||||||||||||||||||||
| YB11B2-2A | 2A | Q | S | - | - | - | Fig.1 | ||||||||||||||||||||||||||||||||||||||
| YB11B2-3A | 3A | Q | S | - | - | - | Fig.1 | ||||||||||||||||||||||||||||||||||||||
| YB11B2-4A | 4A | Q | S | - | - | - | Fig.1 | ||||||||||||||||||||||||||||||||||||||
| YB11B2-6A | 6A | Q | S | - | - | - | Fig.1 | ||||||||||||||||||||||||||||||||||||||
| YB11B2-8A | 8A | Q | S | - | - | - | Fig.1 | ||||||||||||||||||||||||||||||||||||||
| YB11B2-10A | 10A | Q | S | - | - | - | Fig.1 | ||||||||||||||||||||||||||||||||||||||
Medical Type Tabulates:
| Model No. | Rated Current @40°C | Terminal Options | Bleeder resistor(optional) | Medical equipment | G | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) | |||||||||||||||||||||||||||||||||||||||
| YB11B1-1A-x(R5) | 1A | Q | S | - | 1 | 5 | - | <5μA | Fig.2 | 115/250V | 50/60Hz | |||||||||||||||||||||||||||||||||||||
| YB11B1-2A-x(R5) | 2A | Q | S | - | 1 | 5 | - | Fig.2 | ||||||||||||||||||||||||||||||||||||||||
| YB11B1-3A-x(R5) | 3A | Q | S | - | 1 | 5 | - | Fig.2 | ||||||||||||||||||||||||||||||||||||||||
| YB11B1-4A-x(R5) | 4A | Q | S | - | 1 | 5 | - | Fig.2 | ||||||||||||||||||||||||||||||||||||||||
| YB11B1-6A-x(R5) | 6A | Q | S | - | 1 | 5 | - | Fig.2 | ||||||||||||||||||||||||||||||||||||||||
| YB11B1-8A-x(R5) | 8A | Q | S | - | 1 | 5 | - | Fig.2 | ||||||||||||||||||||||||||||||||||||||||
| YB11B1-10A-x(R5) | 10A | Q | S | - | 1 | 5 | - | Fig.2 | ||||||||||||||||||||||||||||||||||||||||
| YB11B2-1A-x(R5) | 1A | Q | S | - | 1 | 5 | - | Fig.2 | ||||||||||||||||||||||||||||||||||||||||
| YB11B2-2A-x(R5) | 2A | Q | S | - | 1 | 5 | - | Fig.2 | ||||||||||||||||||||||||||||||||||||||||
| YB11B2-3A-x(R5) | 3A | Q | S | - | 1 | 5 | - | Fig.2 | ||||||||||||||||||||||||||||||||||||||||
| YB11B2-4A-x(R5) | 4A | Q | S | - | 1 | 5 | - | Fig.2 | ||||||||||||||||||||||||||||||||||||||||
| YB11B2-6A-x(R5) | 6A | Q | S | - | 1 | 5 | - | Fig.2 | ||||||||||||||||||||||||||||||||||||||||
| YB11B2-8A-x(R5) | 8A | Q | S | - | 1 | 5 | - | Fig.2 | ||||||||||||||||||||||||||||||||||||||||
| YB11B2-10A-x(R5) | 10A | Q | S | - | 1 | 5 | - | Fig.2 | ||||||||||||||||||||||||||||||||||||||||
Electrical schematic:
Fig.1
Fig.2

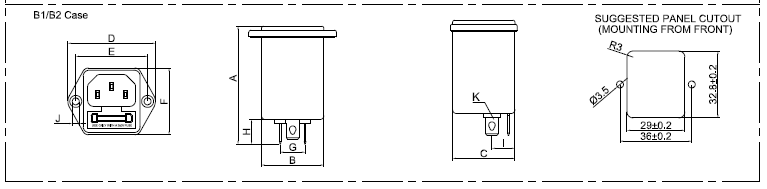

Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K | ||||||||||||||
| B1 | 58 | 28 | 32.5 | 44 | 36 | 33.5 | 13 | 11 | 12.5 | 3.5 | 6.35*0.8 | ||||||||||||||
| B2 | 58 | 28 | 32.5 | 44 | 36 | 33.5 | 13 | 11 | 12.5 | 3.5 | 6.35*0.8 | ||||||||||||||
| Tolerances | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 | ||||||||||||||
IEC Inlet Filter With Fuse:
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
|
