Categories | Outdoor Directional Antenna |
---|---|
Brand Name: | ZD |
Model Number: | ZD-OYA-5759-17.5NF |
Certification: | RoHS |
Place of Origin: | china |
MOQ: | Negotiable |
Price: | Negotiable |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10000pcs per month |
Packaging Details: | Standard Packing |
Freq. Range: | 5725-5850 MHz |
Bandwidth: | 125 MHz |
Gain: | 17.5dBi |
VSWR: | ≤1.5 |
Weight: | 1.2kg |
Antenna Length: | 520 mm |
Company Info. |
SHENZHEN ZD TECH CO., LTD |
View Contact Details |
Product List |

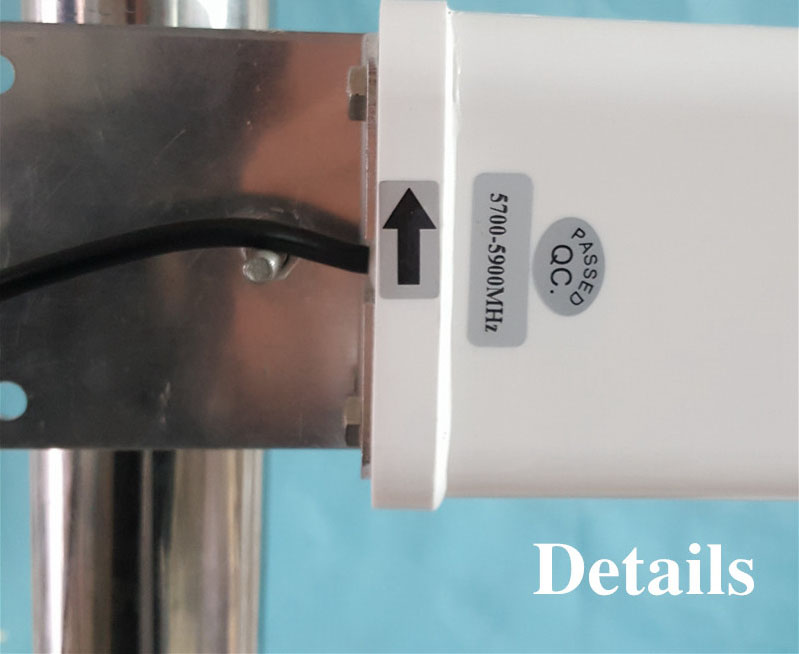

5.8G Yagi antenna 5700-5900MZH yagi antenna outdoor antenna
Applications:
wifi system
Features:
* Small Size, Low Profile
* Lightweight ABS Radome
* outdoor Used
Specifications | |
Model | ZD-OYA-5759-17.5NF |
Freq. Range | 5725-5850 MHz |
Bandwidth | 125 MHz |
Gain | 17.5dBi |
Horizontal Beamwidth | 19±3° |
Vertical Beamwidth | 19±3° |
Number Of Element | 34 |
F/B Ratio | > 20dB |
VSWR | ≤1.5 |
Impedance | 50 ohm |
Polarization | Vertical |
Max. Power | 100 W |
Connector | N Female |
Lightning Protection | DC Ground |
Antenna Length | 520 mm |
Weight | 1.2kg |
Rated Wind Velocity | Rated Wind Velocity |
Diameter of installation pole | Φ30~ 50mm |
Working Temperature | -40’C~+60’C |
![]() |
