| Categories | Heavy Duty Dump Truck |
|---|---|
| Brand Name: | CLW |
| Model Number: | CLW3310 |
| Certification: | BV,SGS,CCC |
| Place of Origin: | SUIZHOU,CHINA |
| MOQ: | 1 Unit |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 units/month |
| Delivery Time: | 30 days after receiving deposit at account |
| Packaging Details: | naked,waxed,bulk ship,ro-ro |
| Brand: | Sinotruk Howo,CAMC,shacman,foton,north-benz,JAC,ISUZU |
| loading capacity: | 30t,30ton,30tons,40t,40tons,40tin,35t,35ton,35tons |
| Lifting Type: | Front Tipping,Middle tipping |
| Oil cylinder brand: | HYVA or Chinese brand |
| Thickness of dumper: | side 6mm,bottom 8mm or side 8mm bottom 10mm |
| Dumper material: | Q345/B |
| color: | White,red,yellow as request |
| engine: | 266hp,290hp,336hp,371hp |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

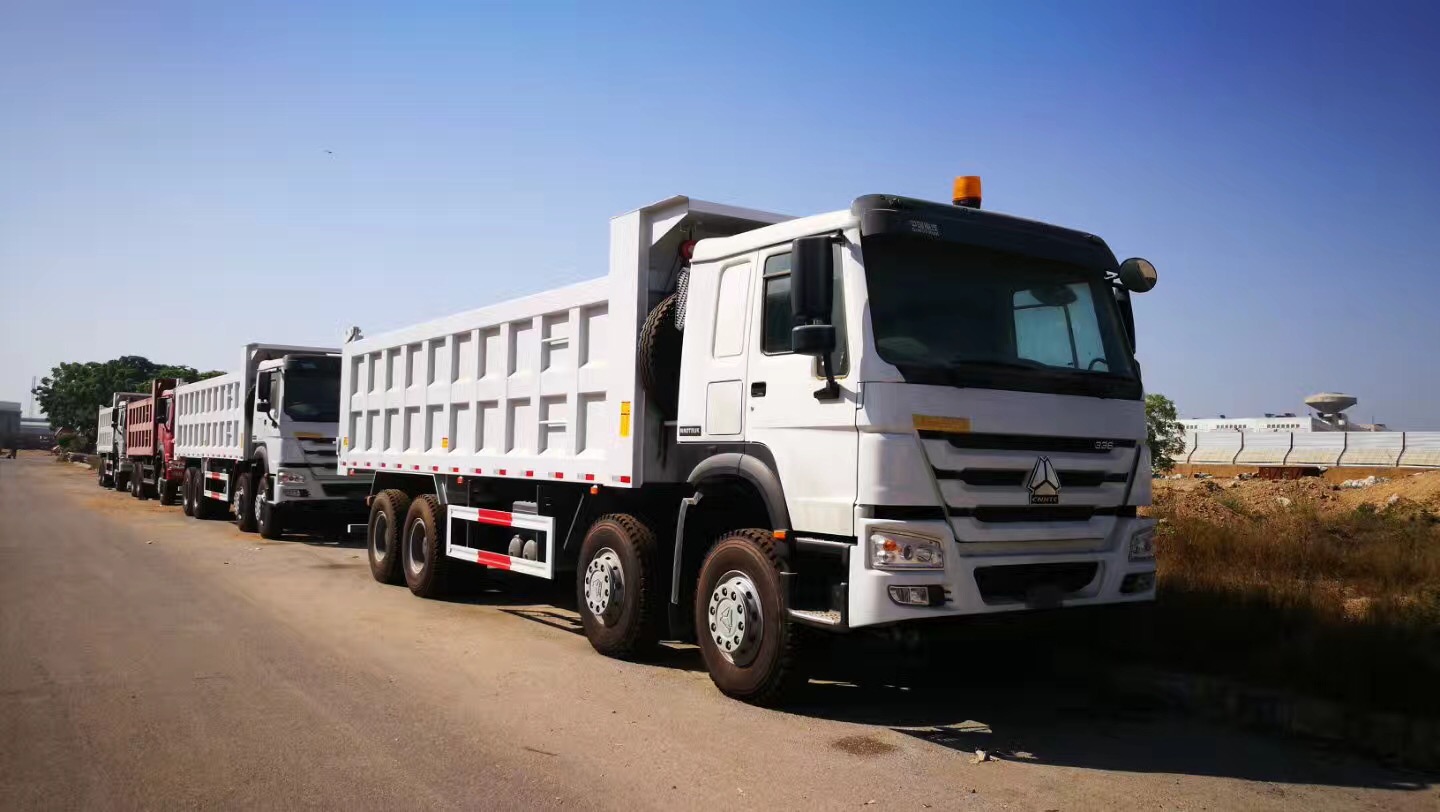

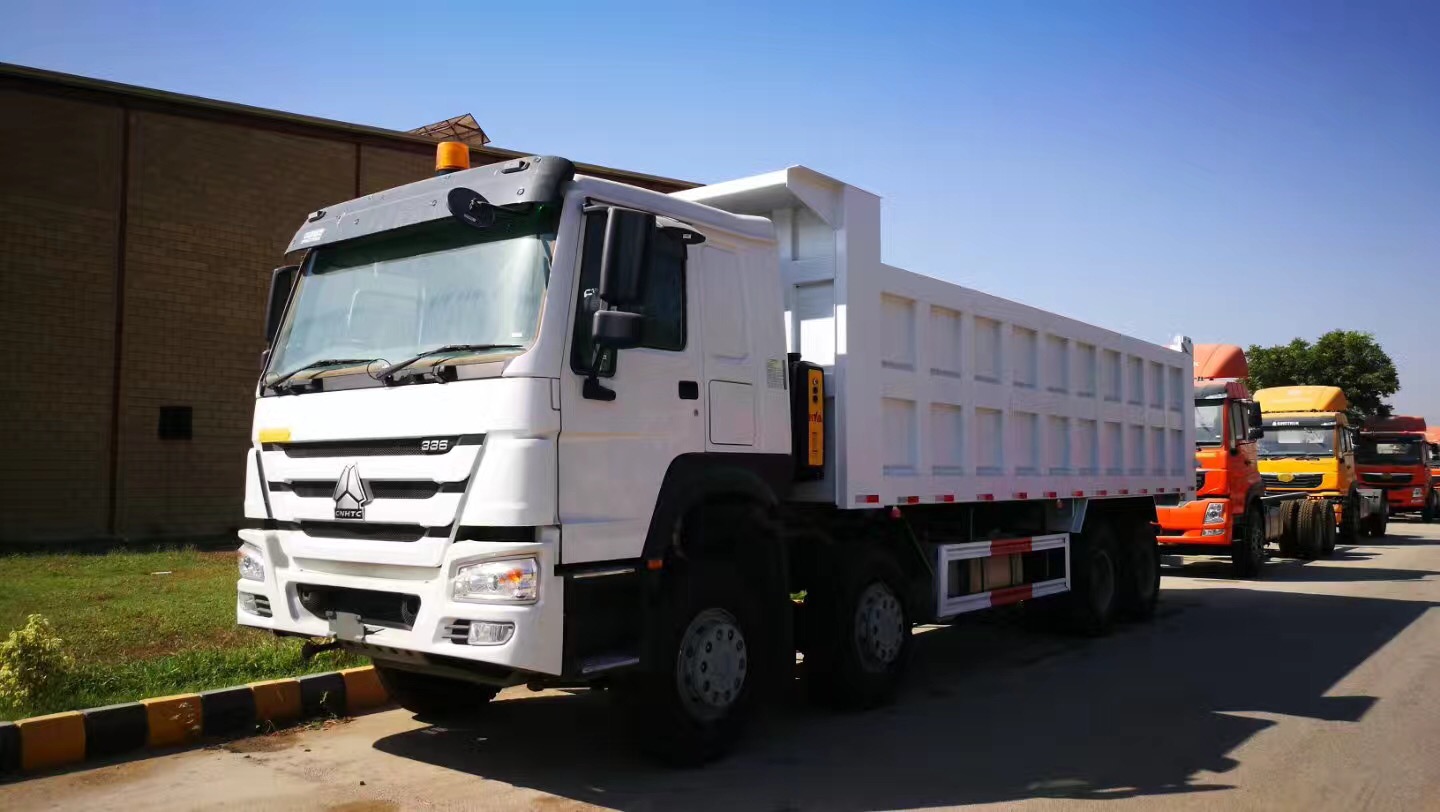

Howo 40ton Construction Tipper Truck 8X4 371hp RHD front tipping tipper
Product Description
1) Dump truck brand:SINOTRUK HOWO,CAMC,SHACMAN,JAC,NORTH-BENZ,ISUZU,FOTON...
2) Tipping Model:Front-tipping,middle tipping dump truck,HYVA or Chinese brand hydraulic oil cylinder brand
3) high tensile steel for dumper materia,4mm,6mm,8mm or 10mm
4) Used in construction site for transportation of mineral,stone,sand and so on.
Specifications of Sinotruk Howo 8X4 40ton construction tipper truck
| Cabin | HOWO HW70 Cab,LHD or RHD,70° hydraulically tillable to the front | |||||||
| Vehicle Main Dimensions | (L x W x H)mm | 10445×2496×3500 | ||||||
| Wheel base (mm) | 1800+4200+1350 | |||||||
| Wheel track (front/rear) (mm) | 1500/2095 | |||||||
| Approach/Departure angle(°) | 19/22 | |||||||
| Weight in KGS | Tare Weight | 15500 | ||||||
| Loading Capacity | 30000kg~50000kg | |||||||
| Front axles loading capacity | HF9 2x9000 | |||||||
| Rear axles loading capacity | HC16 2x16000 | |||||||
| Max. driving speed(km/h) | 85 | |||||||
| Engine | Brand | Sinotruk | ||||||
| Model | WD615.47 | |||||||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||||||
| Horse Power(HP) | 371HP | |||||||
| Emission standard | Euro Ⅱ | |||||||
| Gearbox | HW19710, 10 forwards & 2 reverse | |||||||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |||||||
| Steering Gear | ZF 8118,power steering, hydraulic steering with power assistance | |||||||
| Fuel tank (L) | 300 | |||||||
| Tire | 12.00R20 , 12 pieces with one spare | |||||||
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |||||||
Electrical system | Battery | 2X12V/165Ah | ||||||
| Alternator | 28V-1500kw | |||||||
| Starter | 7.5Kw/24V | |||||||
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of construction tipper truck I can order from your company?
A: There are various sizes and types of dump trucks,you can contact
us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied construction tipper truck to any overseas companies?
A: Yes,we offered construction tipper truck to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our
overseas marketing office is in Wuhan city,Hubei Province.Wuhan is
about two hours' plane and four hours' high speed train from
Beijing,Shanghai or Guangzhou city,welcome to visit us for factory
inspection.
|
