Micro Vicker Hardness Tester With 5 - 3000 Measuring Range Aluminum Shell

Categories Hardness Testing Machine
Brand Name: LIYI
Model Number: LYHV-1000
Certification: CE, ISO
Place of Origin: China
MOQ: 1 Set
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 pieces per month
Delivery Time: 15 days after deposit
Packaging Details: Strong Plywood Case
Measuring range: 5-3000HV
Test force: Test force gf, 10,25,50,100,200,300,500,1000
(Optional 2000g) N: 0.098,0.245, 0.490, 0.98 0,1.961,2.942,4.903,9.807
Turret type: manual
Measurement system magnification: 100 times (for observation) 400 times (for measurement)
Measuring microscope resolution: Resolution, 0.25 μm
Accuracy meets: GB/T4340.2
Test force retention time: 5-99 seconds (in 1 second increments)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

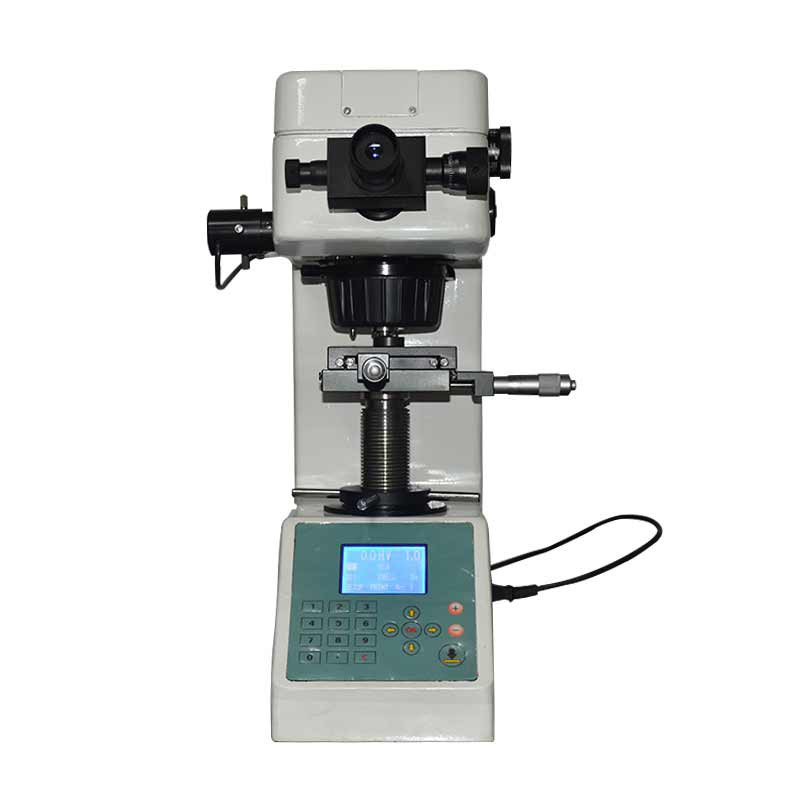

Micro Vicker Hardness Tester With 5 - 3000 Measuring Range Aluminum Shell

Micro Vicker Hardness Tester With 5 - 1000 Measuring Range Aluminum Shell


Characteristic:


1. Non-Frictionl spindle, the weight is directly loaded . High precision.

2. Loading automatically, load-unloading, reliable and safe operation.

3. The indenter - object lens is freely switchable and easy to operate.

4. High magnification and high definition measuring system with clear indentation.

5. It has easy to use with two measuring objective lenses for observation and measurement.

6. It has two channels of measurement and photo or video, which can be connected to a computer.

7. Indentation keyboard input, hardness value is automatically calculated and displayed on the LED.

8. With RS232 interface, the software can be updated and upgraded.

9. LED light source green lighting, reducing visual fatigue and effectively protecting vision.


Application range:


1. Ceramic, glass, gemstone, steel, non-ferrous metals, non-metallic materials.

2. Thin plates, foils, tiny test pieces, chip pins.

3. Carburized layer, nitrided layer, electroplated layer and other metal coatings.

4. Suitable for quench hardening layer gradient measurement, ultra-thin parts and other measurements



Metal material

Surface coating

Glass material

ceramic material

Plastic/ rubber


Technical Parameters:


Measuring range5-3000HV
Test forceTest force gf, 10,25,50,100,200,300,500,1000
(Optional 2000g) N0.098,0.245, 0.490, 0.98 0,1.961,2.942,4.903,9.807
Turret typemanual
Measurement system magnification100 times (for observation) 400 times (for measurement)
Measuring microscope resolutionResolution, 0.25 μm
Accuracy meetsGB/T4340.2
Test force retention time5-99 seconds (in 1 second increments)
X-Y table size and stroke100*100mm X direction stroke 25mm Y direction stroke 25mm
Maximum height of test piece120mm
Indenter center to machine wall distance120mm
Outputpreset micro print port, printer optional RS232 serial interface
Power supply voltage220V/50-60HZ
Dimensions490 × 330 × 515mm
Weightnet weight, 32kg gross weight, 50kg

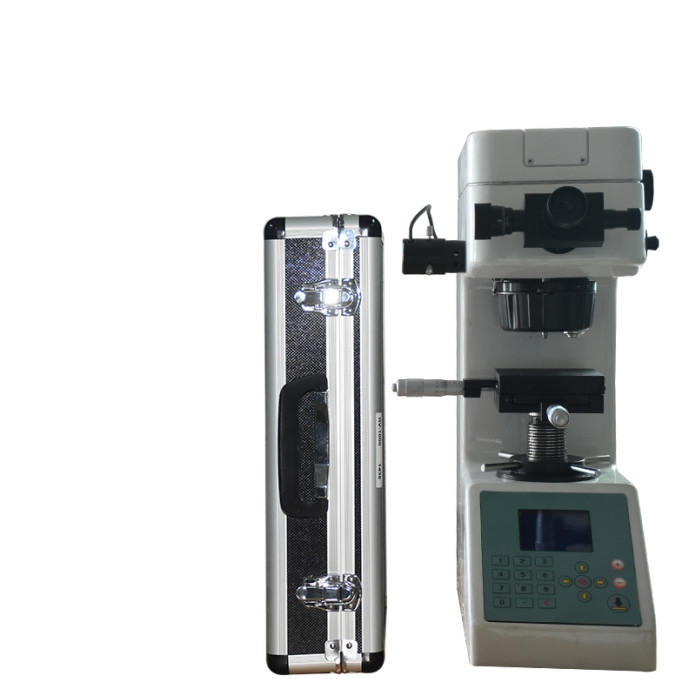

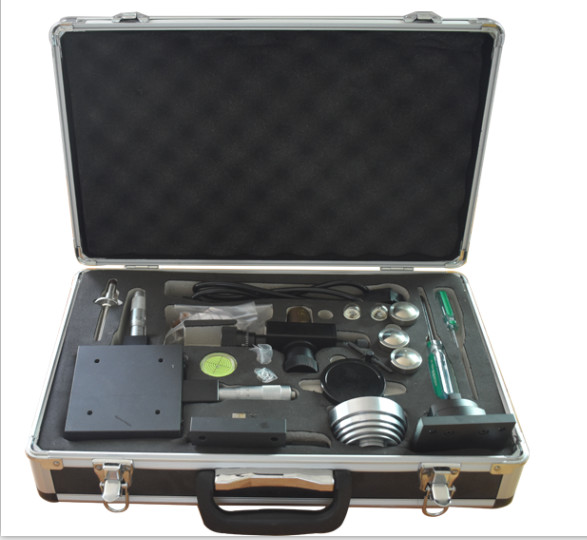

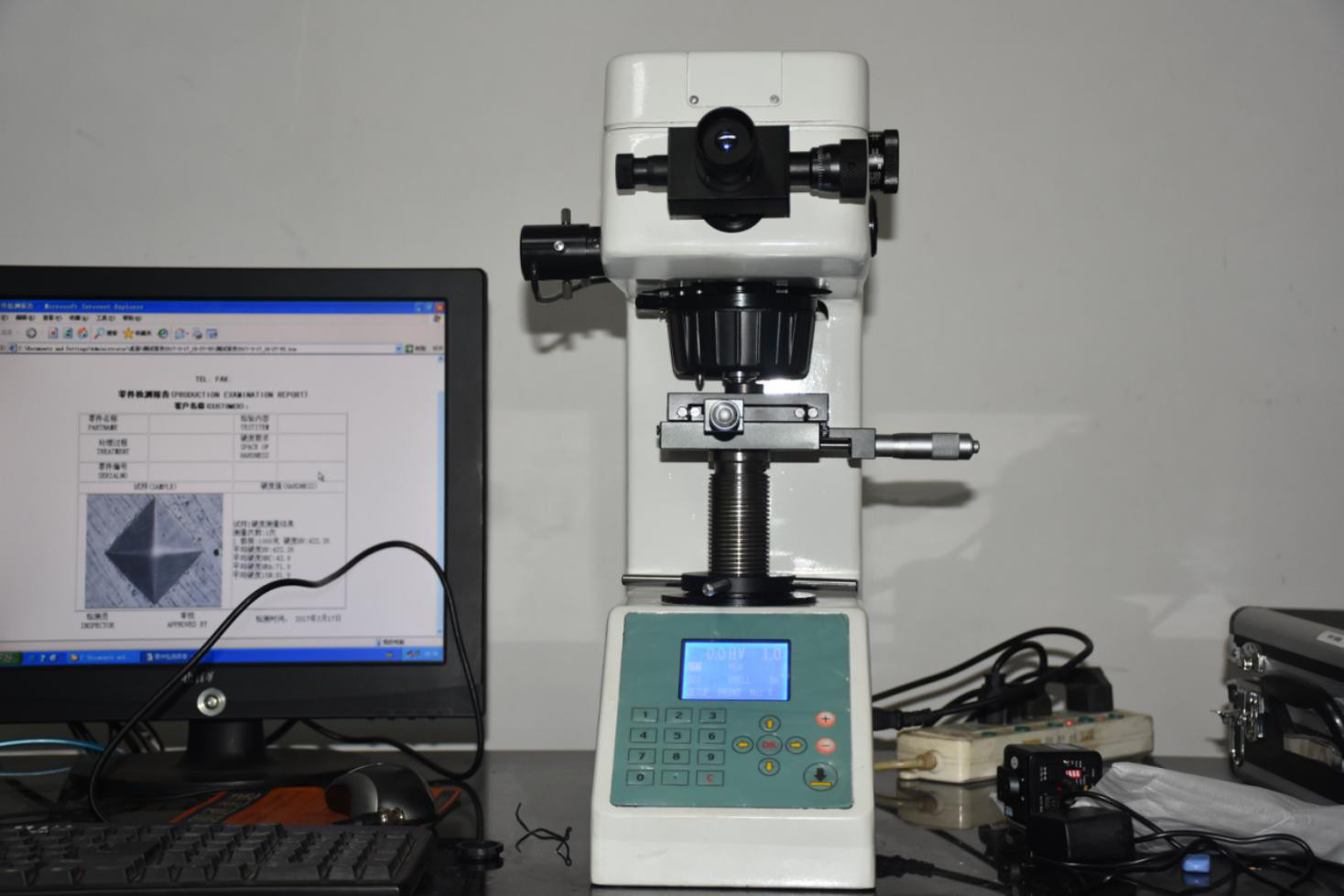

Photo Show:

Our Services:

During the whole business process, we offer Consultative Selling service.


Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.


Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.


Order process:

We offer below business term:

Accepted Delivery Terms:FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency:USD, EUR, HKD, CNY
Accepted Payment Type:T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port:Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

Production and delivery process:

1. We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine.


2. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.Deliver the products in confirmed shipping time and inform customer.


Installation and after sale service:

Defines installing those products in the field and providing after-sales support.


About us:


Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing,marketing all kinds of environmental equipment.Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.


To strengthen the quality awareness,perfect management system,improve product credit,meet customers increasing requirements, our company brought into ISO9001:2008 international quality management system and obtained the certificate: N0006997-1.


Our company will continue to develop, innovate and keep faith. We combine with the international testing syandards and the specific demands of customers that may establish a new banner in Chinese testing industry.
