Adapter Speaker Terminal Cup

95*86mm Gold Plated Loudspeaker Lever Terminal With Binding Post

Description:

Replacing Valuely developed for terminating loudspeaker leads, these terminals have found numerous uses in applications requiring quick interconnection between equipment. The spring loaded lever allows wires to be easily inserted into the terminal where they are firmly trapped once the lever is released, giving a reliable connection. Solder tag terminations at the rear.

Feature:

• Made of durable plastic and gold-plated metal

• Designed for DIY speaker and subwoofer boxes

• Gold-plated contacts for optimal signal transfer

• Spring terminals ensure a tight and secure connection

• Easy to install with screws locking and easy to use

• Positive (Red) and negative (Black) indicators to ensure proper wiring

Specification:

• Temperature:-40~50℃
• Rated Load:50V 3A
• Contact Resistance:≤0.03Ω
• Insulation Resistance:≥100MΩ
• Withstand Voltage:AC500V(50HZ)/min
• Keep Wire Fore:1Kgf
• Wire Range: AMG #24~#16
• Life:5000 cycles

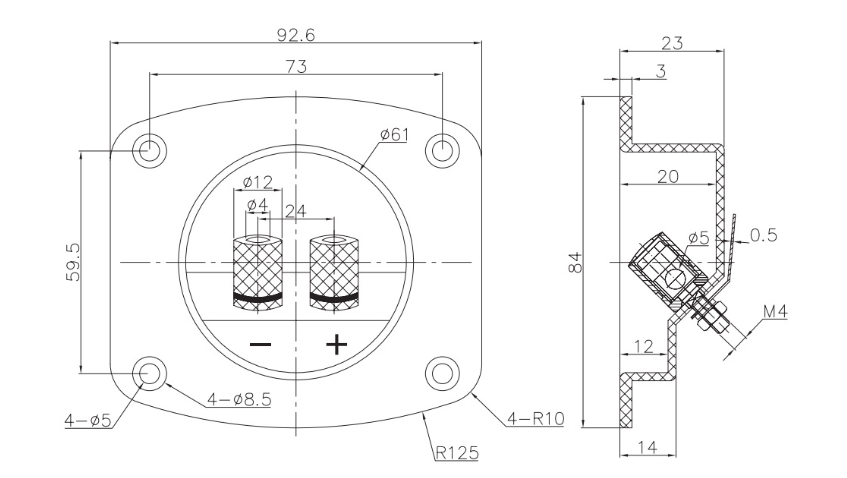

Dimension: (mm)
