| Categories | Hydraulic Forging Press |
|---|---|
| Brand Name: | ZHENGXI |
| Model Number: | Customize |
| Certification: | CE,ISO 9001 |
| Place of Origin: | CHINA |
| MOQ: | 1 SET |
| Price: | Non-standard machine,the price is determined by customer's requirements and parameters |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 sets per year |
| Delivery Time: | 90 days after the pre-payment be done |
| Packaging Details: | Export standard packaging |
| Frame type: | Column Type or Frame Type |
| Advantages: | High precision, High speed, |
| Controller: | PLC convenient control system |
| Function: | Forge the metal parts |
| Application field: | All kinds forging fabrication |
| Automatic feeding system: | Greatly improve the efficiency of production |
| Material of machine: | Use Q345B/#45 steel to make the structure tougher |
| Energy saving: | At least 50%-70% electric power saving if use servo motor additionally |
ZHENGXI brand Open Die Hydraulic Forging Press Machine Free Forging Hydraulic Press Machine have the good performance on the market, we have received a lot of praise from both overseas and domestic. Here we will introduce our Hydraulic Forging Press Machine and Free Forging Hydraulic Press Machine to you.

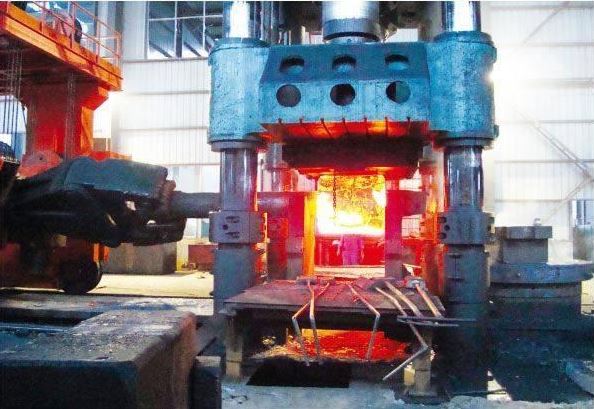

The hot forging free forging hydraulic presses produced by ZHENGXI are: 800T, 1000T, 1600T, 2000T, 2500T, 3150T, 4000T, 5000T, 6000T. The three-beam four-column forging hydraulic press machine is mainly used for various processes of free forging of metal materials.
Forging Press Machine is mainly used for metal forming, also known as metal forming machine tool. It is formed by applying pressure to metal. The force is the basic feature. Therefore, it is mostly heavy equipment, and there are many safety protection devices on the equipment. Protect equipment and personal safety.
Forging press is mainly used for forging parts production in power equipment, shipbuilding, petrochemical, metallurgical equipment, aerospace, machine tools and other industries. It is mainly suitable for forging of carbon structural steel, alloy structural steel carbon tool steel, alloy tool steel, bearing steel, spring steel, stainless steel, die and tempering alloy steel; it can complete the lengthening, upsetting and punching. All processes of free forging such as reaming, mandrel lengthening, torsion, bending, misalignment, and cutting, production of forgings consisting of shafts, rods, plates, cakes, rings and circles and squares, with fully equipped mechanized auxiliary devices .
Computer optimized design, simple structure, strong practicability
Hydraulic support safety loop and hydraulic safety protection circuit for each working cylinder
The whole machine structure rigidity, high strength
Complete safety device and safety control system
| No | Name | Parameter | |
| 1 | Model | Yz14-1000T | |
| 2 | Nominal force | 10000KN | |
| 3 | Working pressure of hydraulics, kg / cm² | 250 | |
| 4 | Press plate material | Steel | |
| 5 | Stroke | 800mm | |
| 6 | Open height | 1800mm | |
| 7 | Main Cylinder qty | 1-3 | |
| 8 | Maximum pump flow | 1200L/min | |
| 9 | Frame type | 4-column type | |
| 10 | Dia of column | Φ280mm | |
| 11 | Forging Eccentricity | 100*60 mm | |
| 12 | Times of Quik-forging | 50-60 | |
| 13 | Motor power | 330Kw | |
| 14 | Hydraulic working oil | Mineral Oil | |
| 15 | Maximum speed plate lifting | 350 mm/sec | |
| 16 | Plate closing speed | 350 mm/sec | |
| 17 | Plate working speed | 35-50 mm/sec | |
18 | Worktable size | L-R | 1800mm |
| F-B | 1400mm | ||
| 19 | Total weight | Around 50 Ton | |
| 20 | Ordinary motor power consumption | Around 160 kW·h | |
| 21 | Servo motor power consumption | Around 100 kW·h | |
|
