Sus304 Liquid Filter / Vertical Pressure Leaf Filter With Long Life Time

NYB high efficiency closed plate liquid filter/ factory use vertical pressure leaf filter

General Description

NYB serial high Efficiency Plate Type Hermetic filter belong to the fine filter, it is designed by advanced technology of similar products at home and abroad and combining the situation in China. They are widely used in lots of industries, such as chemical industry, coating material, petroleum industry, foodstuff, pharmacy and so on.

This equipment with special structure, small occupy volume, high efficiency, and the low filtering cost, and the operation is easy and there is no environmental pollution.

Structure of Filter

1. The brackets are installed on the filter tank

2. On the op of the filter is a dished cover with pressure gauge which will show the filter pressure when operation.

3. Adopt special lifting device for filter cover. And the filter head cover is sealed by swing bolts and nuts.

4. The bottom cone section of filter is 60°ensure good cake drop during cake discharge and a pneumatic & manual two way butterfly valve is installed. A pneumatic vibrator also is installed on the filter.

Working principle

The main body of the filter is made up of vessel, filter gauzes, lifting structure and automatic discharging device. Filter gauzes are made by material of multilyer stainess steel which installed at the center liquid pipe and cleaned up conveniently .

In the process of filtration, the unfiltered liquid with filter aid come into the body through transmission system. After a stable filter cake formed on the filter gauze flakes, the filtrate are filtered through the micropores of filter cake

Filter model list

Production Description

NYB High Efficiency Plate Type leaf Filter is a high-efficient, energy-saving and Hermetically operated fine filter equipmetn. It is widely used in chemical, petroleum, painting, foodstiff,pharmaceutical and many other industries.

Since this equipmetn has many advantages such as unique structure, compact volunme, high filter efficiency, fineness of filtered liquor, no material wastage, without consumption of filter paper , filter cloth. It's only consuming small quantity of filter aid. It can be conveniently maintained , cleaned and operated at very low cost.

The Filter is composed of shell, filtration plate , cover, and automatic vibration device. Amont them, the filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe. So it can be dismantled for cleaning very conveniently.

Application of High Efficiency Plate Type Leaf filter:

1. Oil industry :Crude oil, bleached oil, hydrided oil, radonized oil, stearin, fatty acid, etc.

2. Petroleum chemical products: diesel oil, lubricating oil, paraffin wax, mineral oil, etc.

3. Beverage: Beer, Juice, Wine, Milk, etc.

4. Organic chemical prodccts:various organic aid, alcohol, benzene, aldehyde, etc.

5. Paint: Resin, vanish, dye, lacquer,etc.

6. Inorganic chemical products : bromine water, potassim cyanide, fluorite, etc.

7. Foodstuff: gelatin, vinegar, starch, syrup, sugar water, etc.

8. Pharmaceutical products: Hydrogen peroxide solution, vitamin, etc.

9. Mineral products: fine coal, cinder, etc.

10 Others; air, depuration of water, etc.

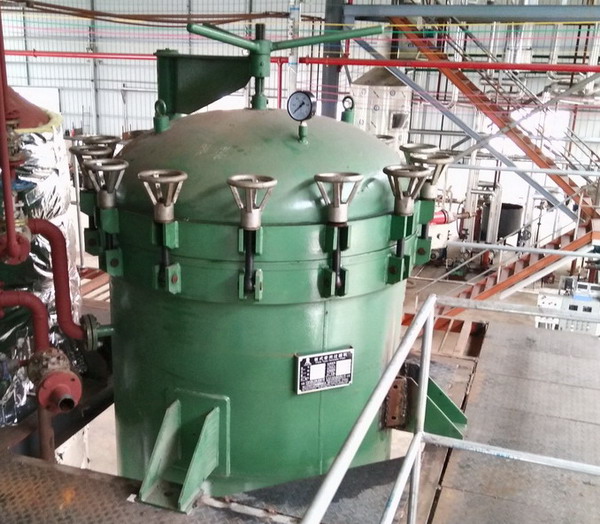

Used on site :

Our service

During selection process :

1. Professional Engineer wil recommend you the most suitable model according to your requirement.

2. Supply reference process flow chart .

3. Supply on-site installation and operation test

4. Integration for control system and process

5. Customized size and structure

After service :

1. Months guarantee period from machine arriving date.

2. Sufficient spare parts in stock are available .

3. Technicians are availabled for overseas service.

4. 24 hours technical consultation .

5. The customer could get trained by our experienced tecnician.

6. Routine tracing will be done timely.

7. Guide you do the normal maintenance.

8. Suggestions and any comments &reflection from customer would be treated in priority.

Why choose us:

1. Factory visit provided

2. ISO, ASME U and other certificates provided

3. High quality and good price

4. Field maintenance and repair provided

Juneng Machinery Group is a global group company specializing in the manufacturing of filters, centrifuges, and pressure vessels. It consists of Juneng Machinery (China) Co., Ltd.,  and Wuxi Hexiang Equipment Biochemical Co., Ltd. We have large production bases in Hong Kong, Nanjing, Wuxi, and Yixing. Mainly engaged in research, development, manufacturing, and sales of filtration equipment, separation equipment, and pressure vessels, it has become a leader in the domestic filtration separation and pressure vessel industry and an important global supplier

The company is proud to be the leader in such industry with 80% domestic market share in Oils & Fats industry,Chemical industry, Pharmaceutical industry, Beverage industry, Petrol-chemical industry, and now is one of the well-known producers and suppliers in the world. Our products are also exported to clients in such countries and regions as USA,German, Korea,Japan, Pakistan, Malaysia, Singapore, Vietnam and so on.

We actively participate in various domestic and foreign exhibitions such as ACHEMA and Canton fair

In recent years, our company has introduced a series of advanced equipment including Filter, Separator, Decanter centrifuge and pump. In addition, we have obtained CE certificates, ASME U certificate and ISO 9001 certificate etc.

ASME U Certificate

The company now areas 280,000 square meters in Nangjing City and Yixing City of Jiangsu Province.We have more than 1100 people employees and equipped with over 1500 units of advanced production equipment and test instrumentation.
