| Categories | Industrial Automation Sensors |
|---|---|
| Brand Name: | F&C |
| Model Number: | FC-SPX30X |
| Certification: | CE, ROHS |
| Place of Origin: | China |
| MOQ: | negotiable |
| Price: | negotiable |
| Supply Ability: | 50000pcs per month |
| Delivery Time: | 10days after depsite |
| Packaging Details: | Standard Export Package |
| Voltage: | 12-24VDC |
| Detection Distance: | 5mm |
| Output Method: | PNP NO.NC |
| Response Time: | 0.3ms Max |
| Operation Temp.: | -10 to 60℃(No Condensation) |
| Protection Grade: | IP66 |
| Circuit Protection: | Short-Ciruit Protection |

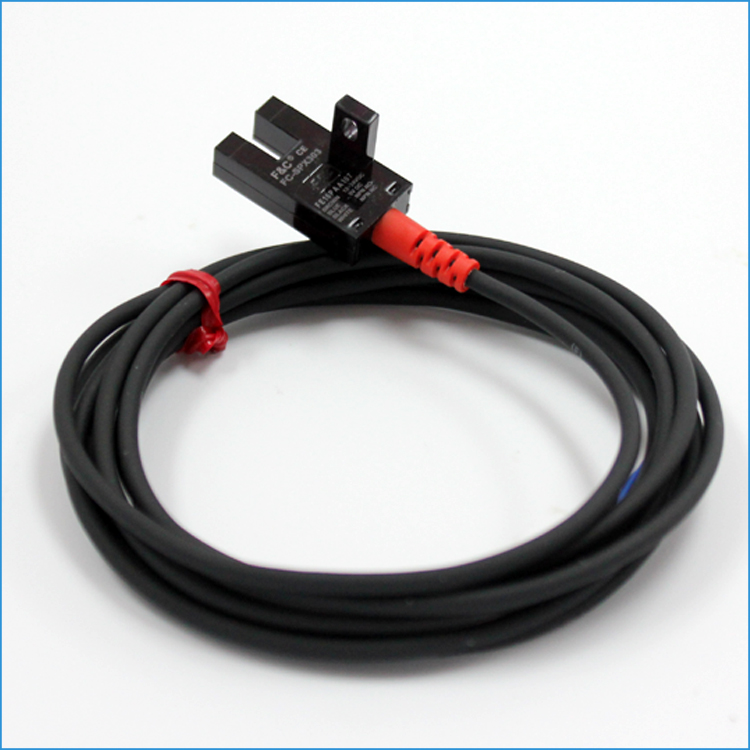

24Vdc Industrial Automation Sensors 5mm Sensing NPN PNP 4 Wires Photoelectric Sensor
Product Description

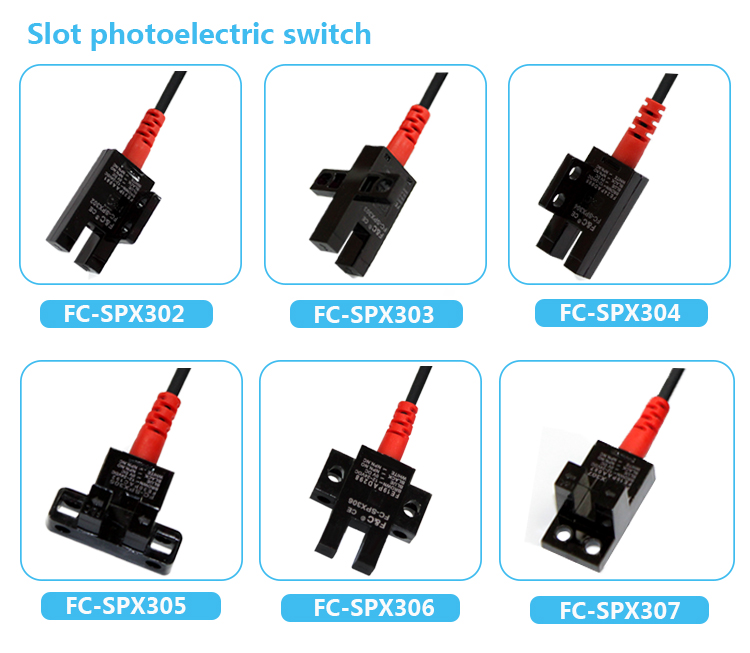

FC-SPX300 Series Photomicro Sensor has 6 different shape.
They can work well under sunshine. We manufacture 50K Pcs Per Months.
Free samples will be offered for test.
Advantages
1. Easy to install with mall volume, almost a half than others.
2. Four wires outputting, every sensor come with function of NO and NC.
3. Many other mini-type for choice.
4. LED indicator to shows working situation.
5. Stable working without influence by other light.
6. Every single products in individual package.
7. Standard 2m cable length, can customize to other cable length.
| NPN NO.NC | FC-SPX302 | FC-SPX303 | FC-SPX304 | FC-SPX305 | FC-SPX306 | FC-SPX307 |
| PNP NO.NC | FC-SPX302P | FC-SPX303P | FC-SPX304P | FC-SPX305P | FC-SPX306P | FC-SPX307P |
| Standard Detection Object | diameter 1mm opaque objects | |||||
| Repeat accuracy | 0.02mm | |||||
| Detection Distance | 5mm | |||||
| Light Source | 940 nm Infrared modulated light | |||||
| Operating Voltage | 12-24 VDC | |||||
| Response Time | 0.3ms Max. | |||||
| Current Consumption | 15mA Max. | |||||
| Load current | 100mA Max at 24 VDC | |||||
| Insulation Resistance | 20M Ohm Min. at 500 VDC | |||||
| Dielectric strength | 60 seconds at 1000VAC 60HZ | |||||
| Protection Degree | IP64 | |||||
| Operating Temperature | -10℃-50℃(No Icing) | |||||
| Reverse Polarity Protection | Yes | |||||
| Short Circuit Protection | Yes | |||||
| Material | ABS | |||||
| Wire Method | Prewired diameter 3mm*2M/- 4wires | |||||
Attentions:

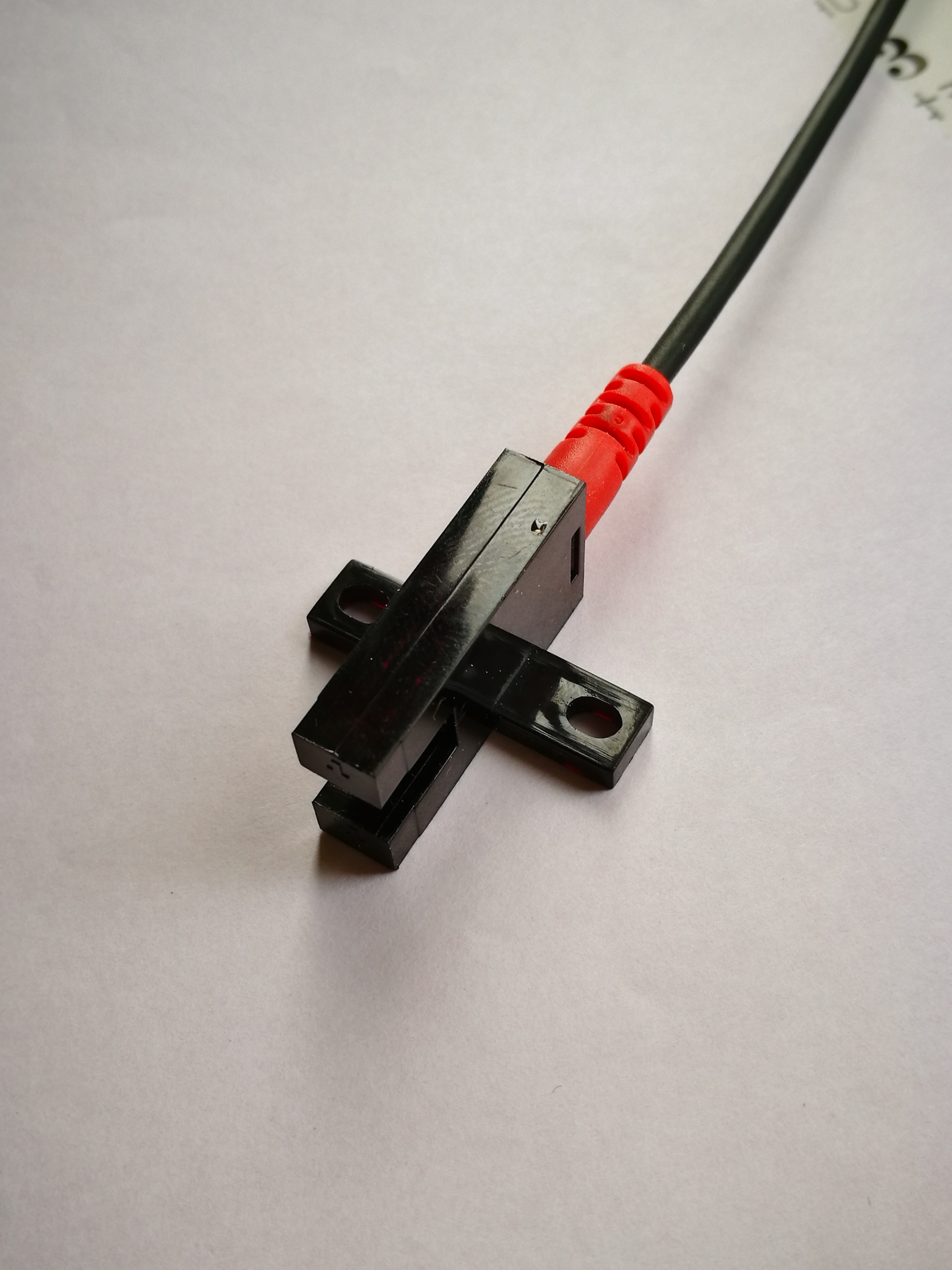

1. The sensor,5mm U-shaped NPN NO NC infrared photoelectric sensor, designed with normally open and normal close circuit, and you can get both function in one model.
2. All the sensor are divided into two type according the Electrical design, NPN and PNP. it will not work if choose wrong type.
3. Wiring method Brown to positive pole, Blue to negative pole, both Black and wire are output.
4. All photoelectric switches can be made to cable type, M8 connector or M12 connector type and third connector with 150mm cable type. you can choose as you demand.
1. We will ship our product aboard with standard export package and customized package also accepted. Generally, all order will be shipped within 5 days after payment confirmed.
2. For small quantity, We will Ship our product to you by express.
3. For mass production,We will ship our product to you by Air or sea.
|
