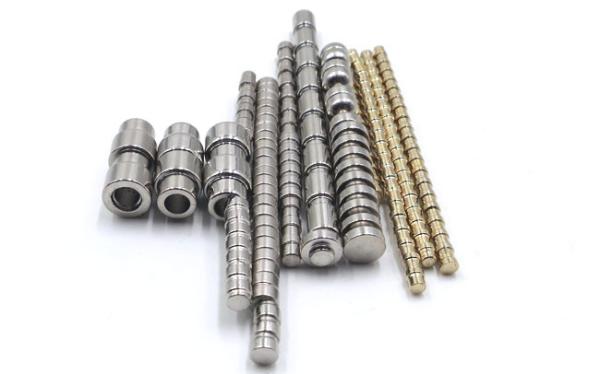

Rare Earth Custom Neodymium Magnets Cylinder For Mobile Phone

Categories Custom Neodymium Magnets
Place of Origin: People's republic of China
Brand Name: VISION
Model Number: N35 - N52
Certification: ISO9001:2008; Rohs, Reach, SGS
Supply Ability: 10000 Pieces per Day
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box) for sintered permanent NdFeB neodymium mangets, or for customer request.
MOQ: 1 to 10 pieces
Price: Negotiable
Payment Terms: negotiable
Delivery Time: 5 - 15 work days
Type: Permanent
Composite: Neodymium Magnet
Shape: Cylinder Ring
Application: Industrial Magnet
Coating: Nickel or customized
Material: Sintered Neodymium-Iron-Boron
Size: Customers' Request
Magnetism direction: diametrically magnetized or customized
Tolerance: +/-0.05mm or +/-0.1mm
Processing: sintered permanent neodymium magnet
Port: Shenzhen or customer' request
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Rare Earth Custom Neodymium Magnets Cylinder For Mobile Phone

Rare Earth Custom Neodymium Magnets Cylinder For Mobile Phone


Use:

1. Life consumption: clothing, bag, leather case, cup, glove, jewelry, pillow, fish tank, photo frame, watch;

2. Electronic product: keyboard, electronic cigarette, display, smart bracelet, computer, mobile phone, sensor, GPS locator, Bluetooth, camera, audio, LED;

3. Home-based: Lock, table, chair, cupboard, bed, curtain, window, knife, lighting, hook, ceiling;

4. Mechanical equipment & automation: moto, unmanned aerial vehicles, elevators, security monitoring, dishwashers, magnetic cranes, magnetic filter.

Product name

Rare Earth Custom Neodymium Magnets Cylinder For Mobile Phone

ShapeCylinder, or Disc, Ring, Arc, Block, Bar, Ball etc. (Sintered NdFeB magnets shape can customized)
MaterialNdFeB (Neodymium Iron Boron)
CoatingNi-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc.
Tolerance in size+/-0.05mm or +/-0.1mm
Magnetization directionThickness, Length, axially, diameter, radially, multipolar
Grade

N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH

Br(kgs)N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2)
Hcj(ka/m)N35≥955; N52≥876; N30SH≥1353; N33AH≥2785
TW(degrees celsius)N35≤80; N52≤70; N30SH≤150; N33AH≤240
ApplicationNdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on
MOQSamples could be offered
Delivery time3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
CertificationROHS, SGS, ISO9001

In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:

  1. Material type and grade required
  2. Size and shape, if available, a sketch or drawing with dimensions and tolerances.
  3. Coating of the magnets
  4. Application of the magnets
  5. Max working temperature
  6. Quantity required
  7. Magnetized or not? Magnetization direction?

Plating Characteristics:
