Aluminum Castings Vacuum Pressure Impregnation Equipment Max Dia 1500 mm

Categories Vacuum Pressure Impregnation Equipment
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Model Number: JS
Supply Ability: 60 Set/Sets per Year
Packaging Details: Nude package, but duly fixed inside the container
MOQ: 1 Set
Price: Negotiable
Certification: CE
Delivery Time: 90 Days
Name: Vacuum Pressure Impregnation Equipment
vacuum degree: -0.098Mpa
hot water wash tank temperature: 0-99 degree celsius adjustable
diameter: 600 - 1500 mm
working method: rotation type
cycle: 20 mins one basket
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Aluminum Castings Vacuum Pressure Impregnation Equipment Max Dia 1500 mm

Aluminum Castings Vacuum Pressure Impregnation Equipment Max Dia 1500 mm

Application
The vacuum pressure impregnation equipment is a right solution to leakage problem of castings. The vacuum impregnation equipment pressurizes the sealant to enter the porosities of castings, and then cures them. The castings are sealed, and qualified to contain liquids or gas.
The vacuum pressure impregnation equipment for castings are widely used at military, automobile, ships, and other relevant fields.
The equipment is the most ideal equipment for solving leakage problem.
The equipment is mainly used for leakage repair of castings, sealing of porous powder metal products after sintering,
improvement of insulation property of electrical components, and pre-treatment before galvanizing and plating.



Supply Scope

impregnating tank: 1 piece
sealant storage tank, 1 piece
refrigeration device, 1 set
centrifugal swing dryer, 1 piece
wash tank, 1 piece (2 grades)
hot water cure tank, 1 piece
vacuum pump, 1 set
drain tank, 1 piece
basket, 8 pieces

control cabinet, 1 set
Functions: digital temperature indicator indicating heating and refrigerating temperature; various parameters are set.
Electrical components such as contactor, relay, power supply and push buttons are of quality domestic brands

pneumatic system, 1 set
pipes and valves, 1 set
working platform: 1 set
paint color: red or otherwise required by the customer



Technical Parameters

Item60080010001200
Effective Size (mm)60080010001200
Effective Height (mm)700100012501500
Working Pressure(Mpa)0.50.50.50.5
Vacuum Degree (Pa)<100<100<200<200
Overall Height (mm)1300150018002000

Note: The vacuum impregnation equipment is non-standard, and we could provide the equipment according
to buyer’s specific requirement.
The loading basket could be square or round in shape.

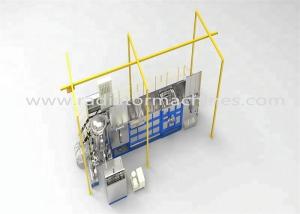

Picture of Vacuum Pressure Impregnation Equipment




Cheap Aluminum Castings Vacuum Pressure Impregnation Equipment Max Dia 1500 mm for sale
