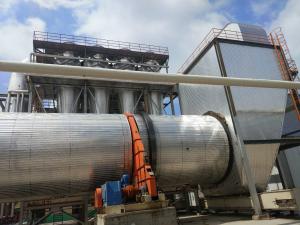

Efficient Integrated Wood Chips Single / Triple Pass Rotary Drum Dryer

Efficient Integrated Wood Chips Single / Triple Pass Rotary Drum Dryer

Application

Wood particles, e.g., sawdust, mini chips, recycling material for PB and pellet production

Strands and wafers for OSB production

Disintegrated seasonal annual crops and other biomass for a wide range of applications

Description

Wet material is fed via a rotary valve and a specially designed infeed chute into rotating drum. There, the heat is transferred mainly through convection from the drying gases to the material for water evaporation. At the end of drum, the material is pneumatically transported to cyclones where the material is separated from the drying gases. One portion of the drying gases is recirculated to the mixing chamber of energy recovery and reduction of dryer exhaust volume.

Consumer benefits

High capacity

Internals designed according to material characteristics for high thermal efficiency and low moisture fluctuation

Optimized drum using FEM

High standard of safety and reliability

Low risk of fire and explosion

Design acc. to ATEX directive 2014/34/EU

Optimized cyclone design

3D modeling

Technical features

Fully integrated control of dryer and energy plant

Fully welded drum shell with alternating sections of cruciform internals and lifting blades

Gear box with frequency-controlled main motor and backup motor for emergency case

Minimal air leakage due to proven seal technology

Dryer exhaust gas recovery

Fully integrated dryer deluge system

If you are interested, do not hesitate to contact me.
REGARDS!

Suzhou CMT, an international technology-oriented engineering group company, specialized in Turn-key Projects, providing services of project consulting, engineering design, construction supervision, project management and general contracting.

We have strong technical support. There are more than 1000 personnel in CMT, of which 60% are professional technicians. Around 50 are Middle and senior engineer and over 80 personnel own professional registered certificates.

The head office is located in Suzhou, equipped with more than 6 manufacturing bases all over China, spreading from Shanghai, Jiangsu, Zhejiang, Shandong, Shanxi, Hebei. We are involved in several aspects, including heavy industry, light industry, environmental protection projects, etc.

After all these years, our technology and service have been exported to more than 50 countries in the world, especially in Asia, Middle East, Africa and South America, which earns us a great reputation. We adhere to the principle of "Quality first, service-orientation" and try to provide the best service. We warmly welcome you to our company and create brilliance together!
