Fermentation Industry Industrial Continuous Centrifuge For Beer Coffee DDGS

Categories Food Processing Centrifuge
Brand Name: WP SEPARATION
Model Number: LW
Certification: ISO9000
Place of Origin: CHENGDU,CHINA
MOQ: 1 UNIT
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 30UNITS/MONTH
Delivery Time: 1 TO 3 MONTHS
Packaging Details: IRON SUPPORT FRAME
Materials: AIS1321, AIS1316 or custmerzied
Frequnency: 50/60Hz
Voltage: 380/460/600V
Application: Beer, Coffee, DDGS
Advantage 1: Special Spiral Structure Design
Advantage 2: High-dryness Screw Conveyor
Advantage 3: High Torque Involute Planetary Gear Differential
Warranty: One Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Fermentation Industry Industrial Continuous Centrifuge For Beer Coffee DDGS


Fermentaion Industry Beer, Coffee, Starch, Gluten Screw Decanter Centrifuge


Beverage & Food Centrifuge

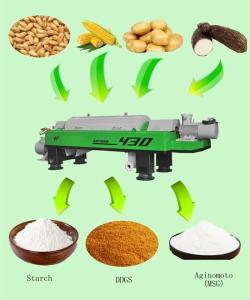

Corn, cassava, rice and wheat are the most widely used raw materials in the food fermentation industry. Due to the high efficiency, stability and environmental protection of centrifuge dewatering, the use of centrifuge dewatering technology in the food fermentation industry provides protection for efficient dehydration and energy conservation of subsequent processes.


XBSY (West-Petro) Beverage & Food centrifuges are considered to be an effective solution for multiple applications in Beverage & Food industry.

The Beverage & Food industry centrifuges widely used in many fields, XBSY factory designs 2 or 3 phase VFD type centrifuges specially used to extract and separate fish, ethanol, palm oil, olive oil, vegetable oil, tea, VCO, fruit juice, avocado oil, protein, plant milk, vegetable milk, vegetable juice.


★ High efficiency centrifuge parameter table (DDGS)


Centrifuge modelmm
Drum diameter mm
Length-diameter ratiorpm
Speed rpm
Separation factorrpm
Differential speed rpm
kW
Main motor power kW
kW
Ancillary motor power (kW)
m/3h
Throughput m/3h
kg
Weight (kg)

mm

Boundary dimension mm (L x W x H)

LW250x1025C2504.1500035001~507.5-113~41~512502500×800×1150
LW350x1435C3504.1400031361~3515-224-5.55~1025003700×1050×1200
LW430x1850C4304.3340027841~3630-377.5-1115-1840004300×1150×1400
LW450x1845C4504.1340029131~3430-377.5-1115-2042004300×1150×1450
LW520x2150C5204.1320029811~3445-5511-1525-3052005100×1250×1600
LW580x2400C5804.1300029481~3075-9015-18.530-3565005520×1450×1700
LW650x2600C6504280028541~2890-11018.5-2235-4078006250×2000×1550
LW750x2800C7503.7250026251~28132-1603050-60110006500×2200×1600

Note: The throughput is related to material characteristics.
Control method: ① direct control using an inverter (double-motor double-frequency conversion mode); ② PLC+ touch screen control (intelligent control mode)


Material: AIS1321, AIS1316, AIS1316L, SAF2205, etc.
Safety protection: devices for measuring vibration and temperature, emergency stop button, and measures to prevent faulty operation such as hood not being covered.
II. Technical characteristics of the high-efficiency centrifuge for glutamic acid


★ CIP washing system

The fully automatic control system is equipped with a CIP washing system, which can effectively solve the problem that it is not completely cleaned during the shutdown process and effectively avoid the equipment troubles caused by artificial factors.


Also most of centrifuges are usually used for vegetable oil process, protein process, starch process, tea process, soybean process, palm oil recovery, palm oil water separation, palm oil separation, olive oil recovery, olive oil separation, olive oil water separation, plant oil separation, plant oil recovery, vegetable oil recovery, vegetable oil separation, VCO recovery, VCO separation, virgin coconut oil separation ,virgin coconut oil recovery ,avocado oil recovery, avocado oil separation, protein separation, protein water separation, starch separation , plant milk recovery, vegetable milk recovery ,vegetable milk separation, plant milk separation, soy milk separation, soy milk recovery, coconut milk recovery, coconut milk separation, grain milk separation, grain milk recovery, rice milk recovery , rice milk separation, tea extract separation, bacteria-removing separation, fruit juice separation ,vegetable juice separation


Centrifuges classifications for Food & Beverage Industry


There are many types of centrifuges have been designed and developed successfully by XBSY (West-Petro), and they all have been worked in Beverage and Food fields as following: such as palm oil centrifuge, olive oil centrifuge, plant oil centrifuge, ethanol centrifuge, beer centrifuge , alcohol centrifuge, fish separation centrifuge, red wine centrifuge , grape wine centrifuge, DDGS separation centrifuge, vegetable oil centrifuge, VCO centrifuge, avocado oil centrifuge, protein centrifuge, starch centrifuge, plant milk centrifuge, virgin coconut oil centrifuge, soy milk centrifuge, coconut milk centrifuge, grain milk centrifuge , rice milk centrifuge , coffee centrifuge , instant coffee centrifuge, coffee clarification centrifuge, tea centrifuge, tea extract centrifuge, fruit juice centrifuge, bacteria-removing centrifuge, vegetable juice centrifuge.

Warmly welcome customers to choose and come to visit the factory in Chengdu, China.


★ Parameter table for high efficiency centrifuge dedicated to glutamic acid (first and second separation of glutamic acid)


Centrifuge modelmm
Drum diameter mm
Length-diameter ratiorpm
Speed rpm
Separation factorrpm
Differential speed rpm
kW
Main motor power kW
kW
Ancillary motor power (kW)
m/3h
Throughput m/3h
kg
Weight (kg)

mm

Boundary dimension mm (L x W x H)

LW450x1845C4504.1300022681~3430-3711-156~1242004300×1150×1450
LW520x2150C5204.1280022831~3445-5515-18.58~1552005100×1250×1600
LW580x2400C5804.1280025461~3075-9018.5-2215-2065005520×1450×1700
LW650x2600C6504280028541~2890-11018.5-2225-3078006250×2000×1550
LW750x2800C7503.7250026251~28110-16022-3030-50110006500×2200×1600
