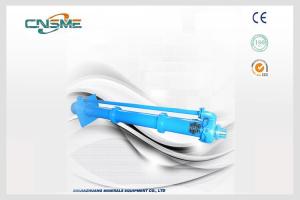

Vertical Cantilever Reverse Engineer Slurry Pump With Single Casing

Vertical Cantilevered Slurry Pump, High-Performance Vertical Slurry Pump

Introduction:

The robust & durable vertical slurry pumps are designed and manufactured to operate in the most testing conditions. Applications include minerals processing, coal preparation, chemical handling, sand and gravel and general tank, pit, or hole in ground slurry applications.

SME SV/SVR Heavy Duty Sump Pumps are available in various standard lengths to suit common sump depths, for very deep sumps or where high shaft speeds limit the length of the pump, a suction extension pipe can be fitted to the bottom inlet to extend the depth of the pump by up to 2 meters.
Pumping is maintained even when the top inlet is not submerged, thus enabling the level of liquid to be lowered right down to the bottom inlet or the bottom of any suction extension pipe.
To suit special requirements other WAR-MAN pump wet ends can be fitted to the standard SME SV pump dry end.
SME customers range from the world's largest mining and minerals multinationals to single pump set operators.

Look for high-quality vertical slurry pumps? Don't miss SME. Your inquiries will be handled within 24 hours.

Specifications:

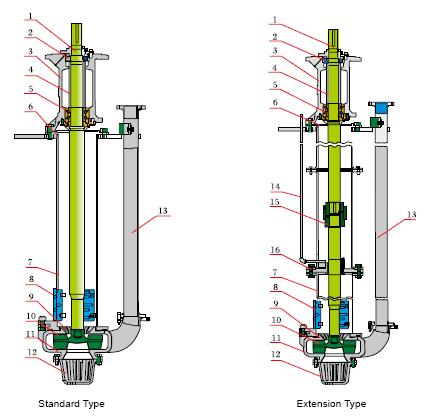

Construction of SV Sump Pumps:

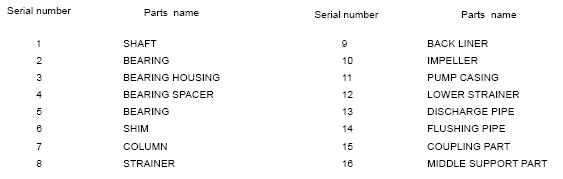

Materials of Construction:

Material: High Chrome Alloy A05

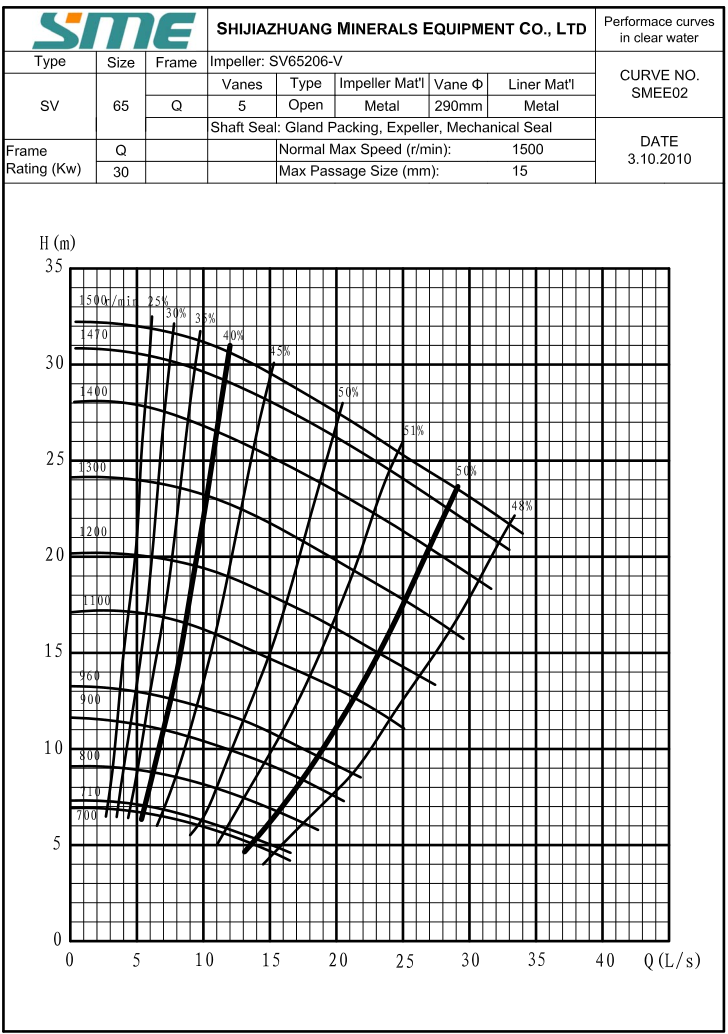

Performance Curve:

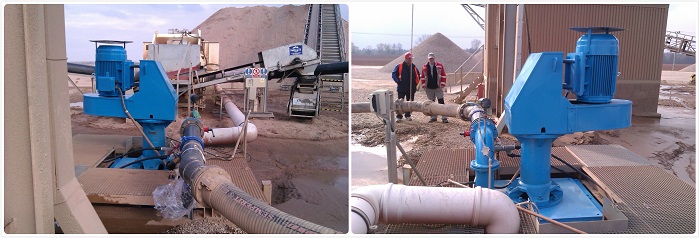

Projects with Robust Vertical Pumps:

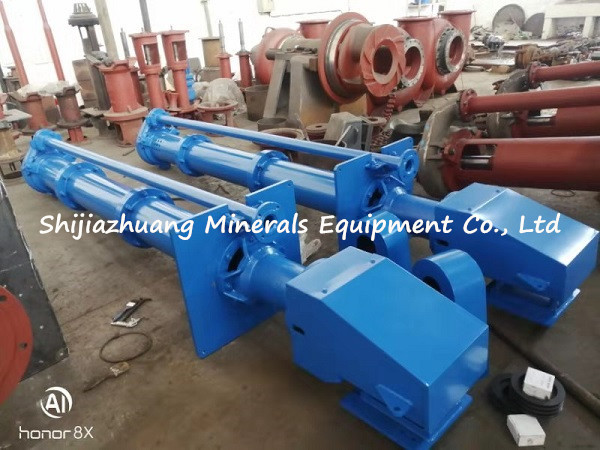

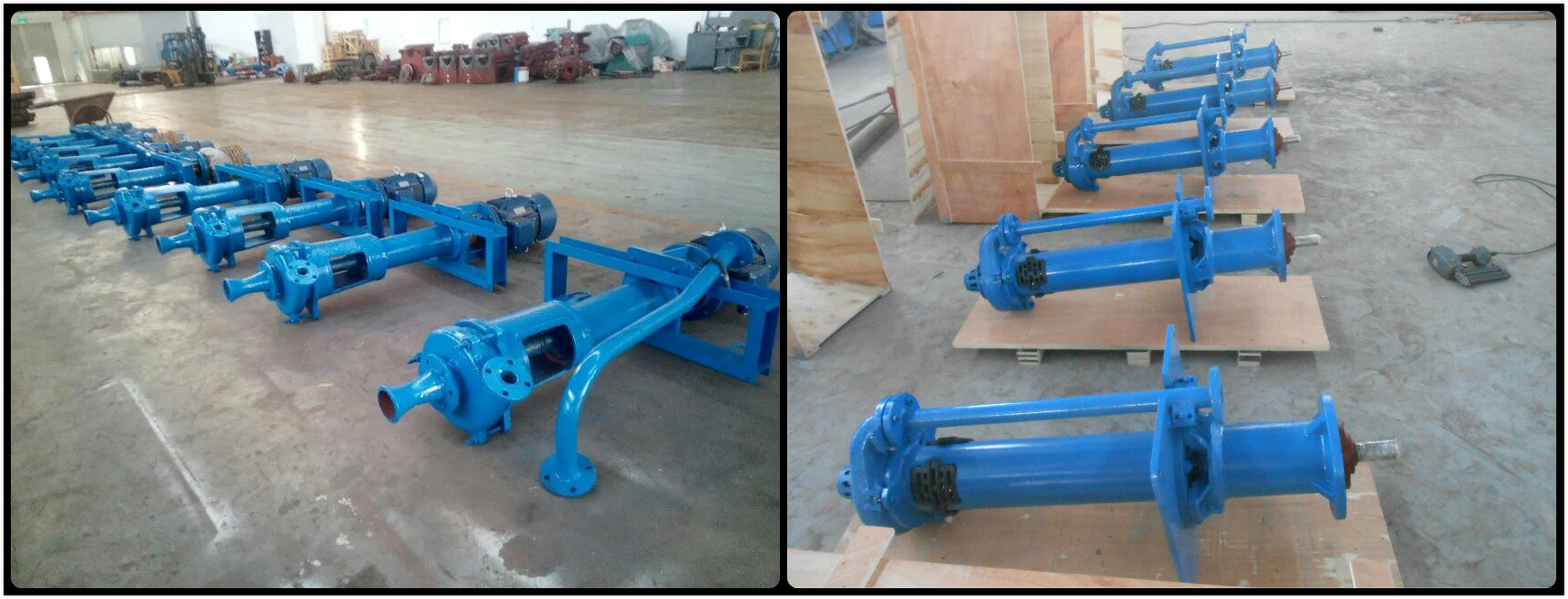

Orders of Quality Sump Pumps:

CNSME is a leading Chinese manufacturer and supplier of slurry pumps, with over 20 years of industry experience. As a pioneer in the field, we specialize in producing high-quality pumps, including vertical slurry pumps, horizontal slurry pumps, heavy-duty slurry pumps, froth pumps, centrifugal pumps, gravel pumps, desulfurization pumps, and various slurry pump spare parts.

Our products are widely used in numerous applications such as mining, mineral processing, tailings disposal, dredging, construction, metallurgy, power plants, wastewater treatment, as well as the chemical and petroleum industries. Over the years, CNSME has earned the trust and praise of customers both domestically and internationally through its excellent technology and superior service.

At CNSME, we are committed to continuous innovation and improving product performance to provide efficient and reliable solutions that meet the demands of various complex working conditions. We boast a professional technical team and state-of-the-art production facilities, ensuring that each pump meets the highest standards and helps our clients achieve outstanding operational results.

No matter where you are or what type of pump you need, CNSME can offer you the best solution. We look forward to cooperating with you and advancing the industry together.
