HT5203 1000V Digital Insulation Tester / Megger Resistance Tester CE Approved

Categories Digital Insulation Tester
Brand Name: HABOTEST
Model Number: HT5203
Certification: CE,ROHS,EMC etc.
Place of Origin: China
MOQ: Negotiable
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 3000pcs/month
Packaging Details: Manual, Accessaries, Individual gift box, 20pcs /cartoon
Color: Black + Red
name: digital megger tester
Features: Insulation test; Auto calculate PI and DAR; Compare function; Auto discharge for capacitive load etc.
Range: Source output Voltage 50~1000V; DC Voltage 0.1~1000V;AC voltage 0.1~750V etc.
Size: 180*140*65mm
Weight: 950g
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

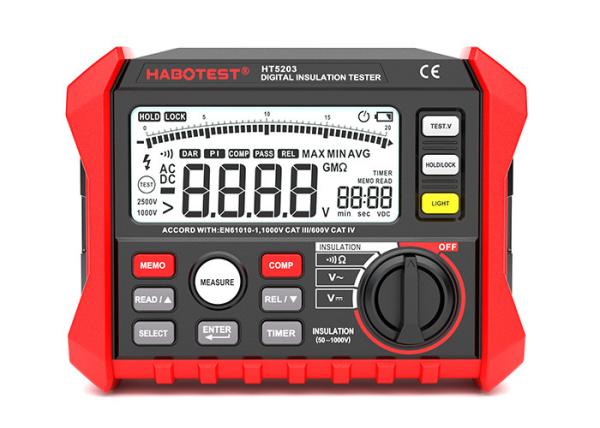

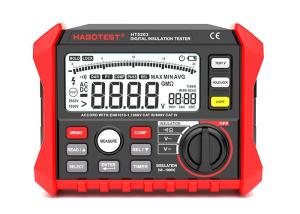

HT5203 1000V Digital Insulation Tester / Megger Resistance Tester CE Approved

HT5203 Digital 1000V Insulation Tester Resistance megger meter Ohm Meter with Multimeter


Product introduce:


Features:
1. Checking the insulation of high-voltage electrical equipment (electric motor, transformer, and cable, etc.)
2. Use 50V-1000V voltage to test target insulation
3. It can measure up to 10GΩ resistance
4. Short current up to 1.8mA
5. Automatically calculates PI (Polarization Index) and DAR (Dielectric Absorption Ratio)
6. AC/DC voltage measurement and continuity test
7. Display back light and auto power-off
SpecificationSource Output VoltageMeasuring Range
Insulation tests50V (0 %~+20%)0.01MΩ~50MΩ ±(3%+5)
100V (0%~+20%)0.01MΩ~100MΩ ±(3%+5)
250V (0%~+20%)0.01MΩ~250ΩM ±(3%+5)
500V (0%~20%)0.01MΩ~500MΩ ±(3%+5)
1.00GΩ~5.00GΩ±(5%+0.1GΩ)
1000V (0%~+20%)5.00GΩ~10.00GΩ±(10%+0.2GΩ)
Short circuit current1.8mA
Multimeter functionsDC Voltage Test0.1~1000V±0.5%
AC Voltage Test0.1~50V±1%
Continuity Test0.01Ω~200Ω±0.5%
FeaturesAuto Calculate PI and DAR
Store /Load Function
Compare function
Auto discharge for capacitive load
Timer Function for insulation test
Lock function for insulation test
Low Battery Indication
DCV and ACV Test
Continuity test
Auto power Off
Digital and analog display
GeneralPower Supply6xLR14 batteries
Product Size180mm x 140mm x65mm
Product WeightApprox. 950g
Safety RatingCE CAT.III 1000V CAT IV 600V RoHS
