Silicone Tube Sleeve Rubber Conduction Hose Silicone Protective Hose

Categories Flexible Silicone Tubing
Certification: SGS
Place of Origin: China
MOQ: 1000meters
Price: Negotiate
Payment Terms: TT
Supply Ability: 10000pcs per day
Packaging Details: Roll
Delivery Time: 5-7days
Materal: silicone
Size: OD1.0mm ~60mm; ID 0.3mm~ 59mm
Hardness: 30~70 Shore A
Temperature range: -40°C to 280°C
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

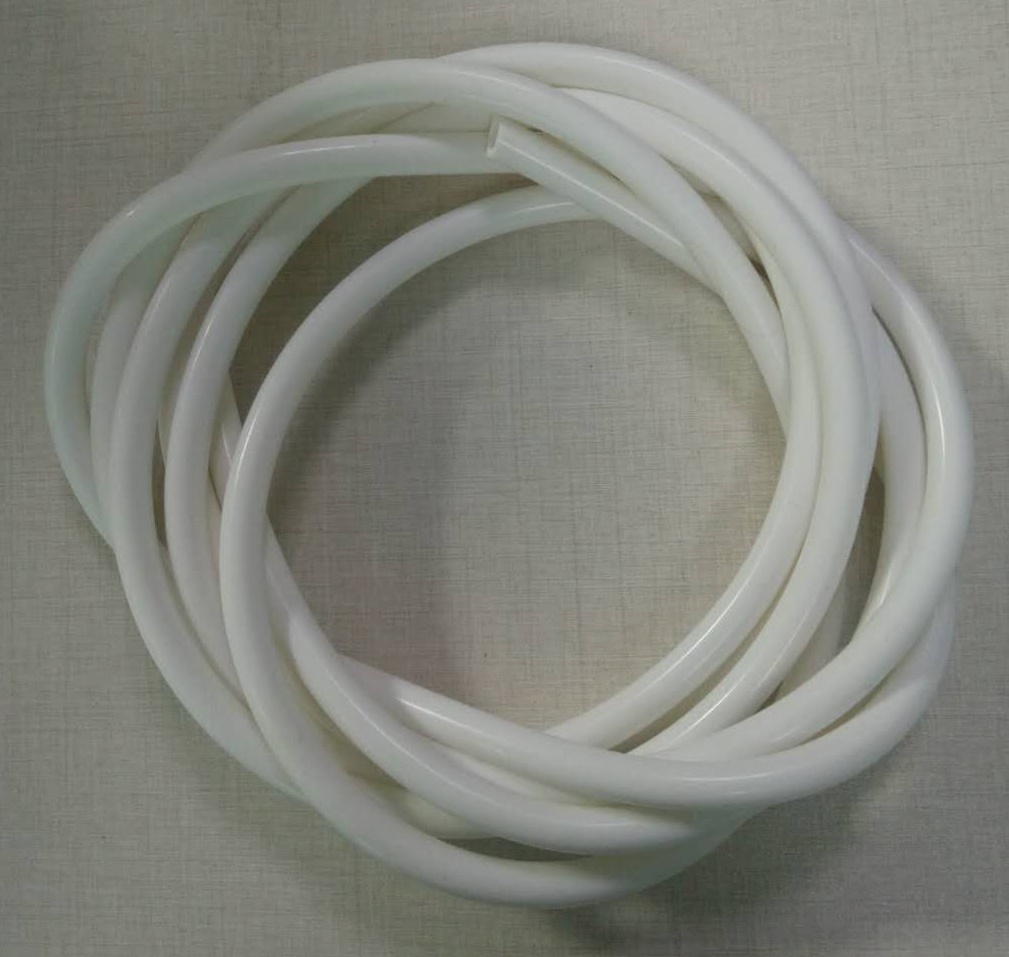

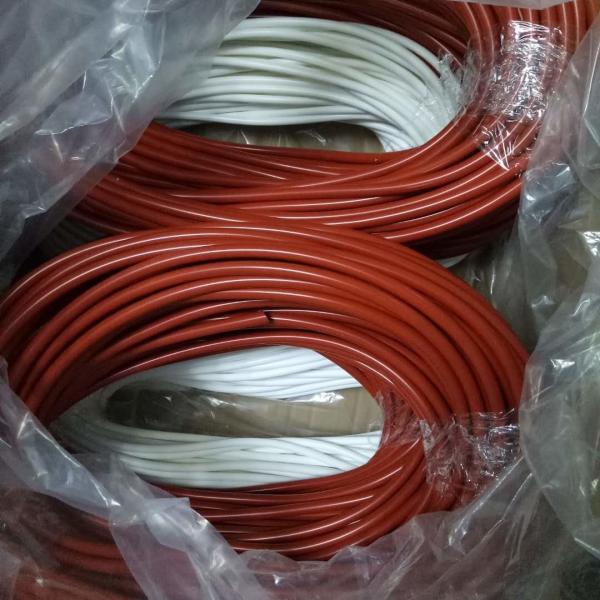

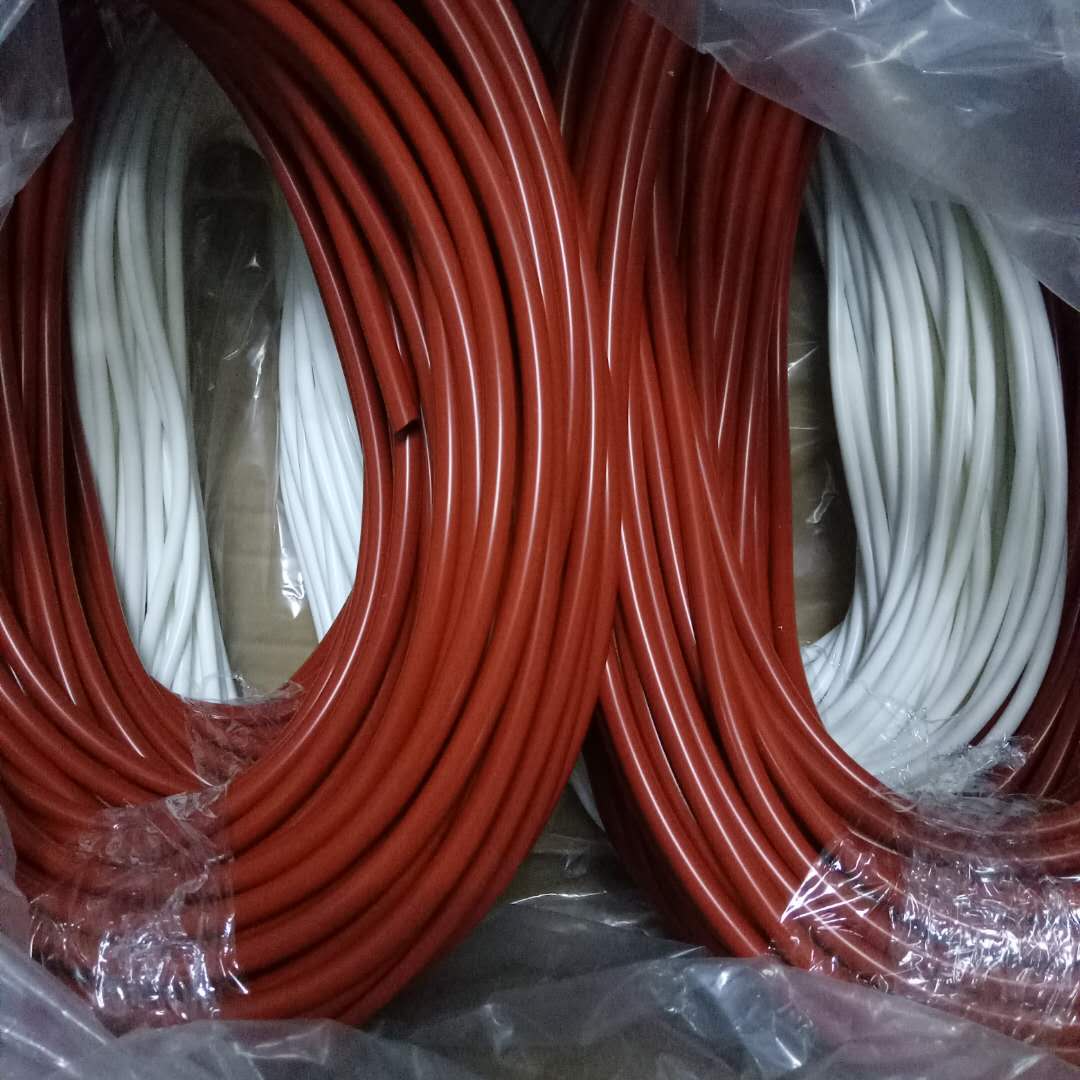

Silicone Tube Sleeve Rubber Conduction Hose Silicone Protective Hose

Silicone Tube Sleeve Rubber Conduction Hose Silicone Protective Hose:


1. Material: 100% FDA, LFGB, USP class VI Silicone Rubber Raw Material

2. Certification: with SGS, Reach, FDA, LMBG, LFGB are approved
3. Large Size Rank: OD1.0mm ~60mm; ID 0.3mm~ 59mm

4. High Temperature Resistance: -50°C~230°C(Nature color), Special Material

-60°C~280°C(Red color)

5. Thermally conductive silicone sleeve protective tube is general usage for

medical equipments, home appliances, military equipment, motors, etc.

6.Radio opaque line through the length for x-ray visualization.


Application:
They are widely used in all kinds of household appliances, industrial appliances, lighting lamps and lanterns, electronic equipment insulation protection.
And also suitable for: small appliances (coffee pot, KaiShuiHu, iron, electric rice cooker, deep fryer, disinfection cabinet water dispensers, fruit pulp machine,
bread machine, burner, water heater, etc.) and electronic, automotive,
medical and other mechanical products.


Size:

specification(mm)diameterthicknessdensity
inch(mm)outer(mm)standard(mm)Min(mm)
0.8*1.80.8±0.11.8±0.10.50.381.18±0.02
1.0*2.01.0±0.22.0±0.20.50.381.18±0.02
1.2*2.21.2±0.22.2±0.20.50.381.18±0.02
1.5*2.51.5+0.4/-0.22.5+0.4/-0.20.50.381.18±0.02
2.0*3.02.0+0.4/-0.23.0+0.4/-0.20.50.381.18±0.02
2.5*3.52.5+0.4/-0.23.5+0.4/-0.20.50.381.18±0.02
3.0*4.03.0+0.4/-0.34.0+0.4/-0.30.50.381.18±0.02
3.5*4.53.5+0.4/-0.34.5+0.4/-0.30.50.381.18±0.02
4.0*5.04.0+0.5/-0.45.0+0.5/-0.40.50.381.18±0.02
4.5*5.54.5+0.5/-0.45.5+0.5/-0.40.50.381.18±0.02
5.0*6.05.0+0.5/-0.46.0+0.5/-0.40.50.381.18±0.02
6.0*7.06.0+1.0/-0.57.0+1.0/-0.50.50.381.18±0.02
7.0*8.47.0+1.0/-0.58.4+1.0/-0.50.7
