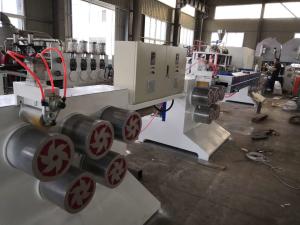

PET Material Monofilament Making Machine , Monofilament Extrusion Line Easy Operation

Machine Factory for Red/Blue Color/PP/PET Material Diameter of 0.1-2.5mm/ Plastic Wire Drawing Machine for Rope/Fiber​

Plastic Broom Monofilament Extruder machine/PET Broom Filament Extrusion Line

Plastic Wire Drawing Machine for Rope/Broom/Net/Brush Filament/Yarn/Monofilament/Bristle/Fiber Production/Extrusion Line

Features:

1. Using the recycling PET bottle flakes

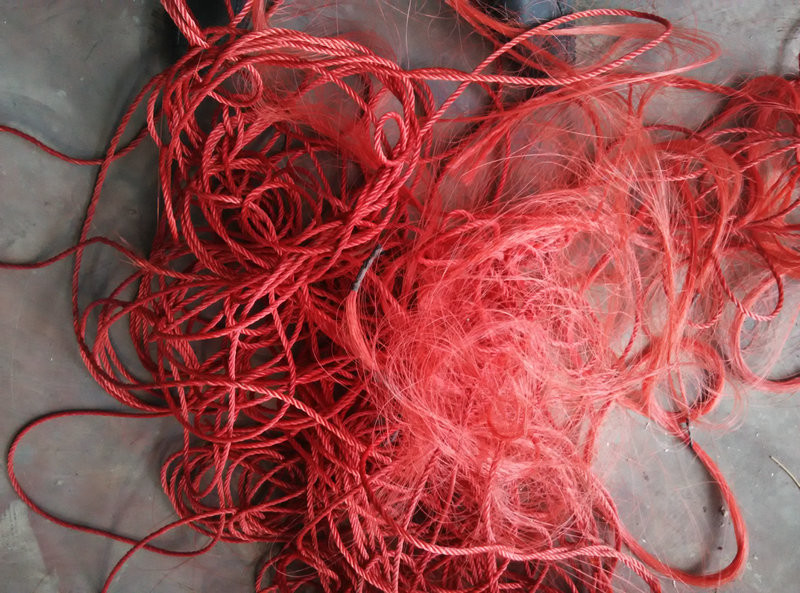

2. Multi-purpose machine of filament for broom, rope, nets, etc.
3. Same transparency as virgin polyester slices, the tensile strength and shock resistance are stronger
4. Low energy consumption, high production capability
5. Easy operate, saves mainpower
6. PP material also can be replaced by changing different screw.

Specification of Plastic broom monofilament extruder machine:

Model	SJ-65	SJ-75	SJ-90	SJ-120
Screw L/D	33:1	33:1	33:1	33:1
Gearbox model	200	225	225	250
Main motor	18.5kw	22/30kw	30/37kw	45kw
Capacity(kg/h)	80-100kg	100-120kg	140-160kg	180-200kg
Mould Dia.	200	200	200	200
Filament Dia.	0.1-2.5mm	0.15-2.5mm	0.15-2.5mm	0.2-2.5mm

Equipment List of PET wire drawing machine:

No.	Name	Quantity
1	SJ65/75/90/120-33 single screw extruder	One set
2	Die head	One set
3	Water-cooling tank	One set
4	First tensile machine	One set
5	Pre-heating machine	One set
6	Second tensile machine	One set
7	Third tensile machine	One set
8	Oil bath tank	One set
9	Pneumatic tensioner	One set

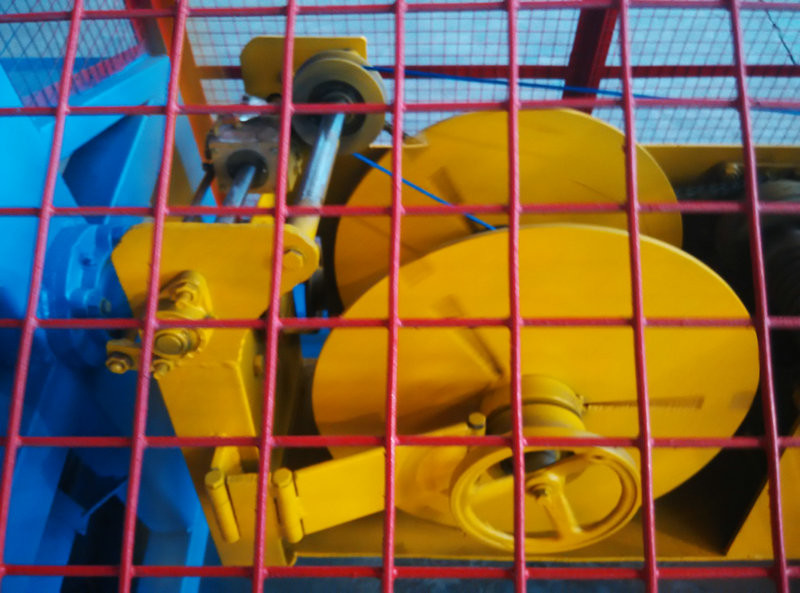

10	Two position winder	One set

Electrical Configuration:

1) Main motor frequency controller: AB
2) Temperature controller: OMRON
3) AC contactor: Siemens
4) Thermal overload relay: Siemens
5) Breaker: CHINT or according to customer requirement

Qingdao Tengao Plastic Machinery Co., Ltd. is one of the best proffesional manufacturer for plastic mat extrusion machine in China, manufactured over 100 production lines. Exported to many countries, such as Korea, India, Russia, Pakistan and so on.

Our main machinery product: PVC coil door mat extrusion line, PVC coil car mat production line, PVC S type floor mat production line, PVC calendaring molding mat manufacturing machine, LDPE grass mat extruder machine.

Our aim is to be the most Professional PVC Mats Manufacturer in China! Making the best Quality Machine to each customers!

Q & A:

Q: Why do you say that you are the most professional PVC Mats manufacturer?

A: We pay all our attention to PVC Mats machines.We offer 7/24 hours service. Customers' requirement is always the motive power to move on!

Q: Do you offer Turn-key project?

A: Yes.Once cooperated, we will offer the PVC mats formula for customers, then customers can send engineers to our factory, we will arrange the factories to operate the working machines.After machine shipped to customers' factory, we will dispatch engineer to test the machine and train the workers until they can operate the machine freely.

Q: Could I check the machine before shipment?

A: Yes. We will test all the machines for customers before shipment.
